Heltec HT-DC50ABP 5-120V 50A Lithium Battery Capacity Tester Discharge Load Tester Adjustable Current Voltage Discharge Machine for Lithium Lead Acid Battery Capacity Testing
As an Amazon Associate we earn from qualifying purchases.
Product Overview
Notes
⚠️ Discharge Curve Tip
The device’s report chart uses a 0-120V range. For low-voltage batteries (12V/24V), the curve looks flat (since voltage doesn’t change much in this wide range)—this is normal!
To check low-voltage battery discharge details, just follow the real-time voltage/current numbers on the device screen.
💡 Pro Tip
If you need to test small lithium batteries (e.g., 18650 cells), the HT-BCT50A is a more cost-effective choice!

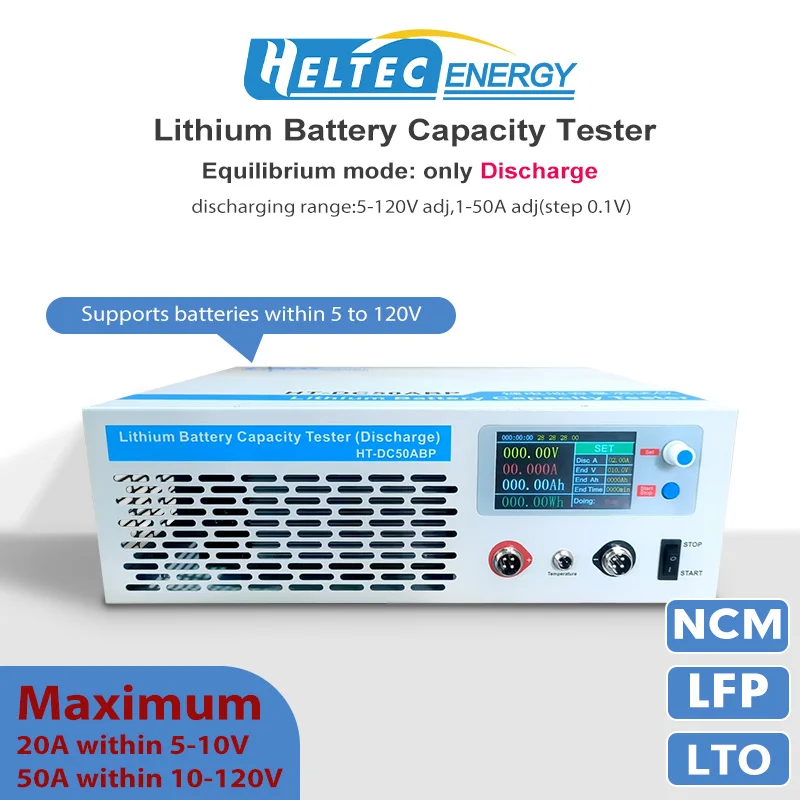

This Heltec 5-120V 50A DC Electronic Load is a professional battery capacity tester and high-power discharger, designed for accurately measuring the performance of Lithium/LiFePO4/NMC/Lead Acid/Ni-MH batteries. Perfect for EV battery packs, solar energy storage systems, and DIY 18650 battery projects.
🔹 Key Features
✅ Wide Voltage Range – Supports 5V–120V batteries (lead-acid, Li-ion, LiFePO4, Ni-MH, etc.).
✅ High Precision Testing – ±0.1% voltage & ±0.2% current accuracy (factory-calibrated with Gwinstek PCS-10001).
✅ Adjustable Discharge – 1–50A current (max 6000W power), with 0.1V/0.1A fine-tuning.
✅ Multiple Stop Conditions – Set voltage cutoff, capacity (Ah), or time for flexible testing.

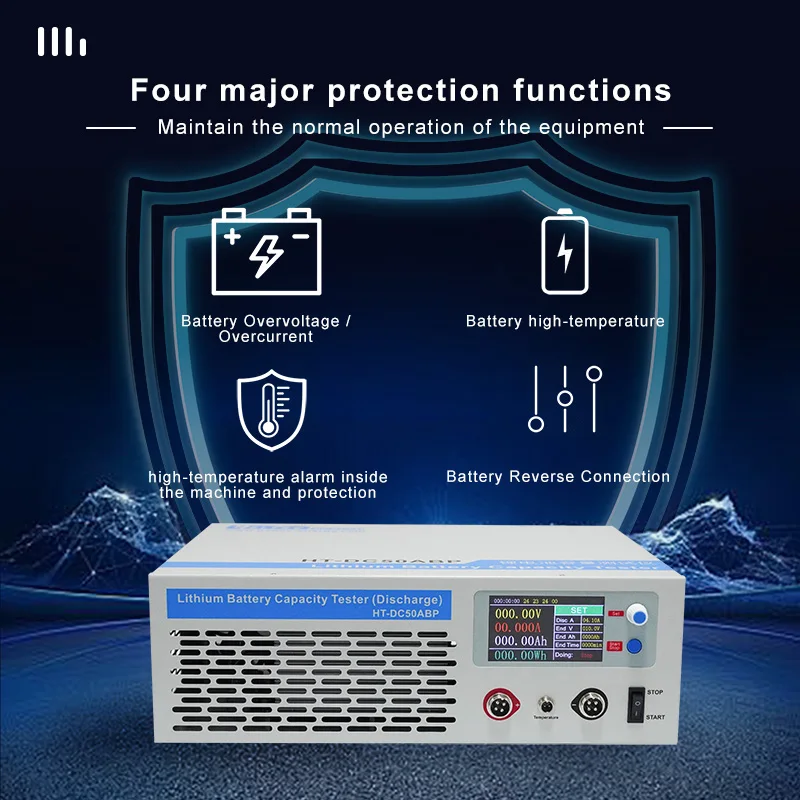

✅ Advanced Safety – Overvoltage, reverse polarity, overcurrent, and dual-temperature protection (battery & machine).
✅ Real-Time Data – Tracks Ah, Wh, runtime, and V/A curves for performance analysis.

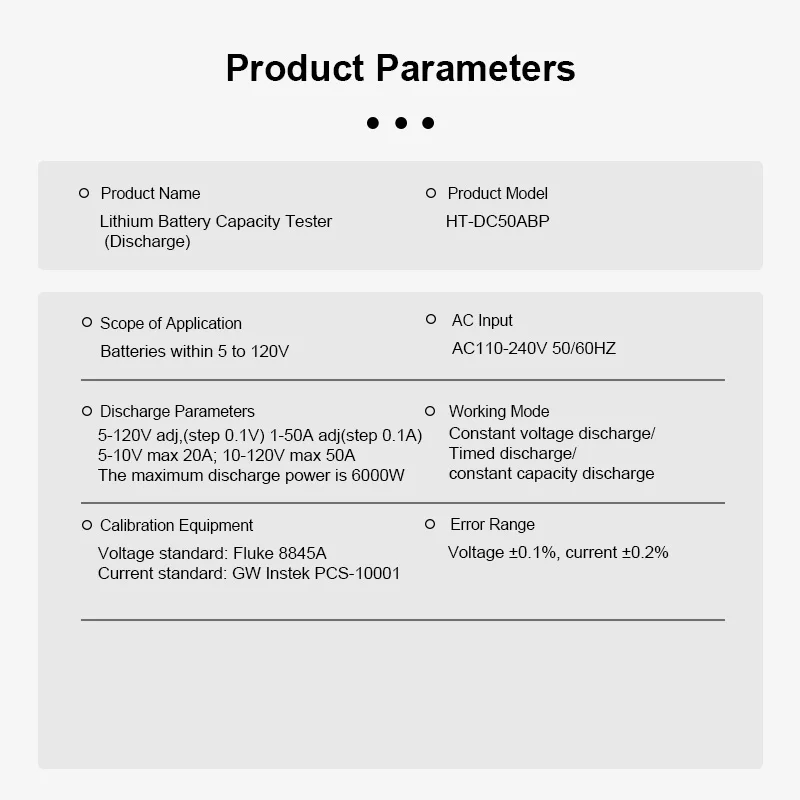

🔹 Technical Specifications
Model: HT-DC50ABP

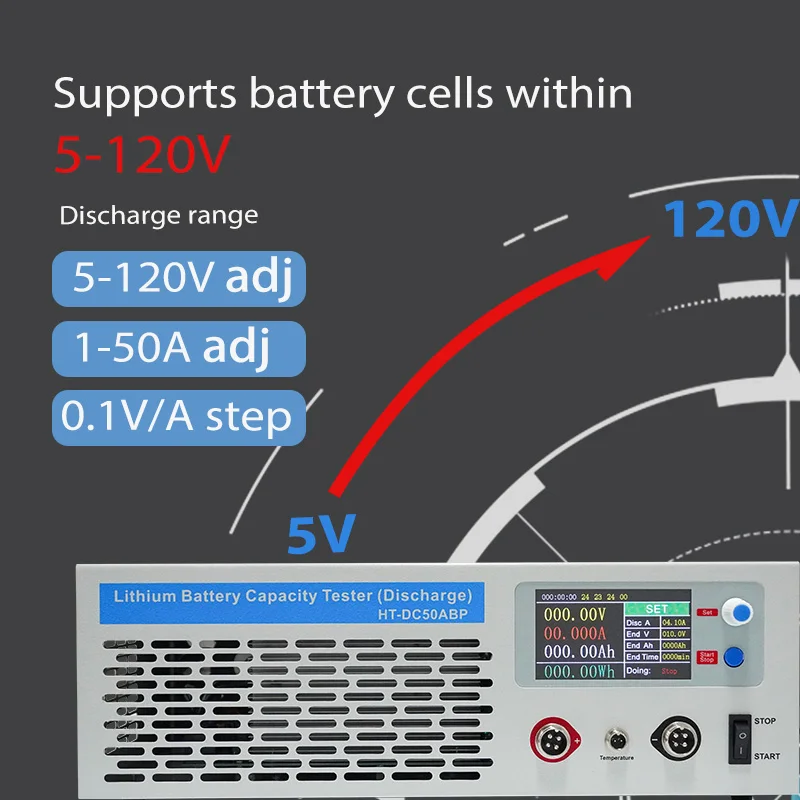

Voltage Range: 5–120V (adjustable in 0.1V steps)
Current Range: 1–50A (adjustable in 0.1A steps)
Max Power: 6000W (50A @ 120V)
Accuracy: Voltage: ±0.1% / Current: ±0.2%

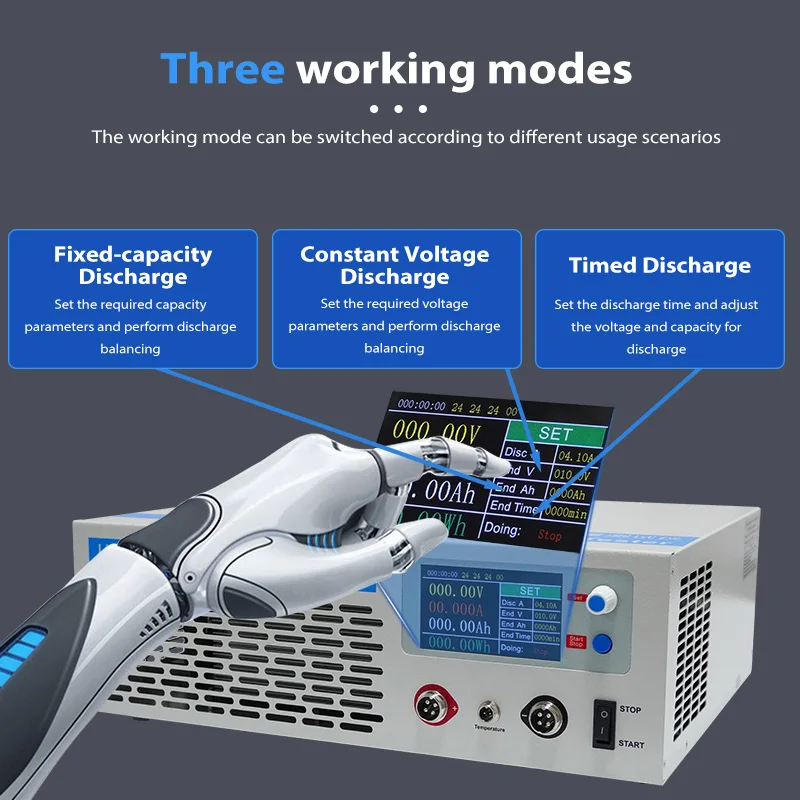

Discharge Modes: Voltage cutoff / Capacity (Ah) / Time
Protections: Overvoltage, reverse connection, overcurrent, high temp (battery & machine)

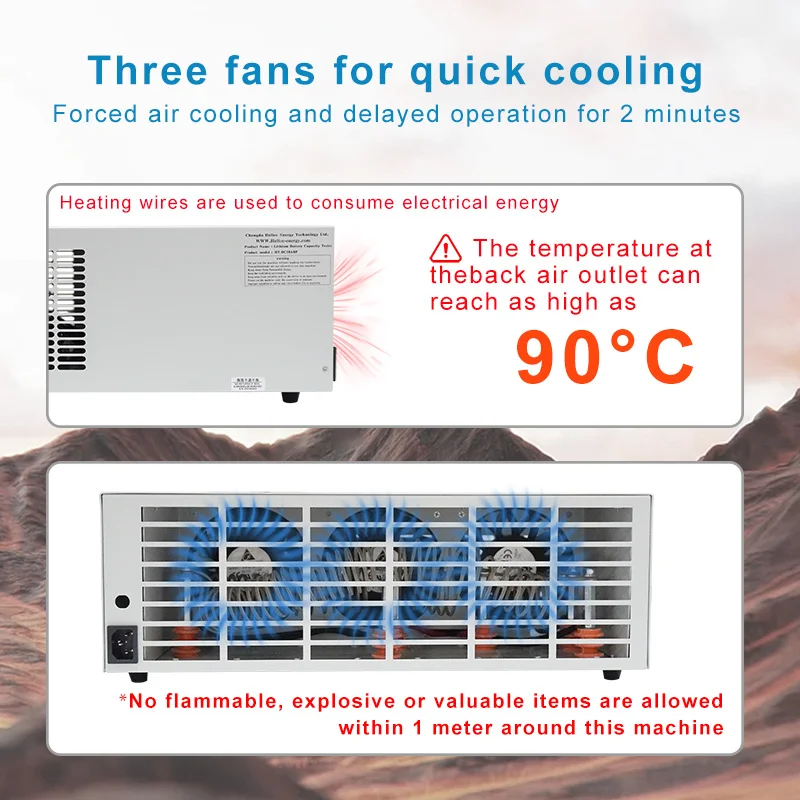

Cooling System: Forced air cooling (2-min delayed shutdown)
Power Supply: AC 110–240V, 50/60Hz

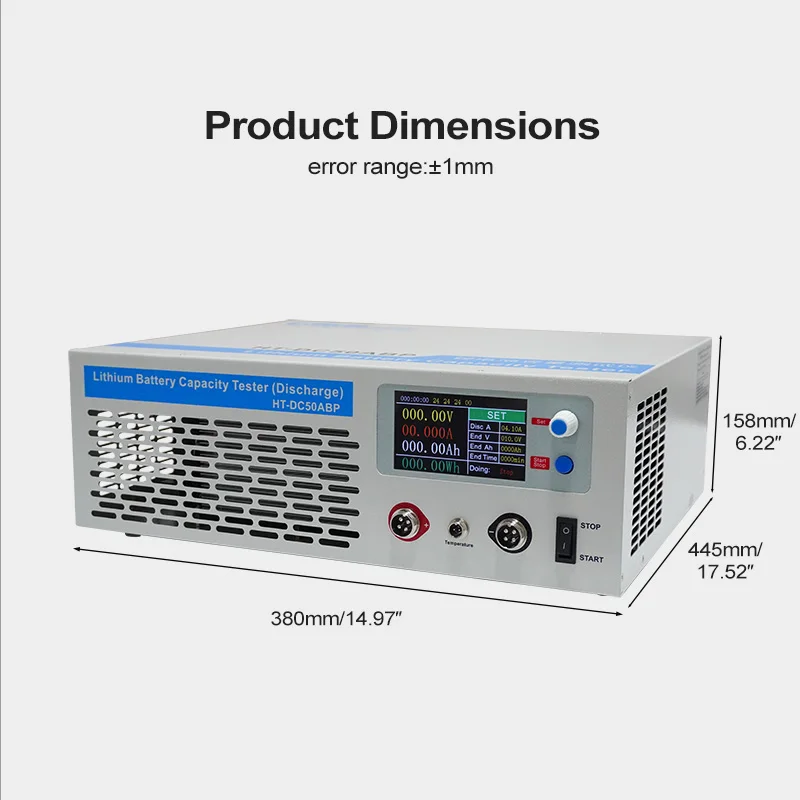

Dimensions: 380×158×445mm (15×6.2×17.5in)
Weight: 8.7kg (19.2lbs)

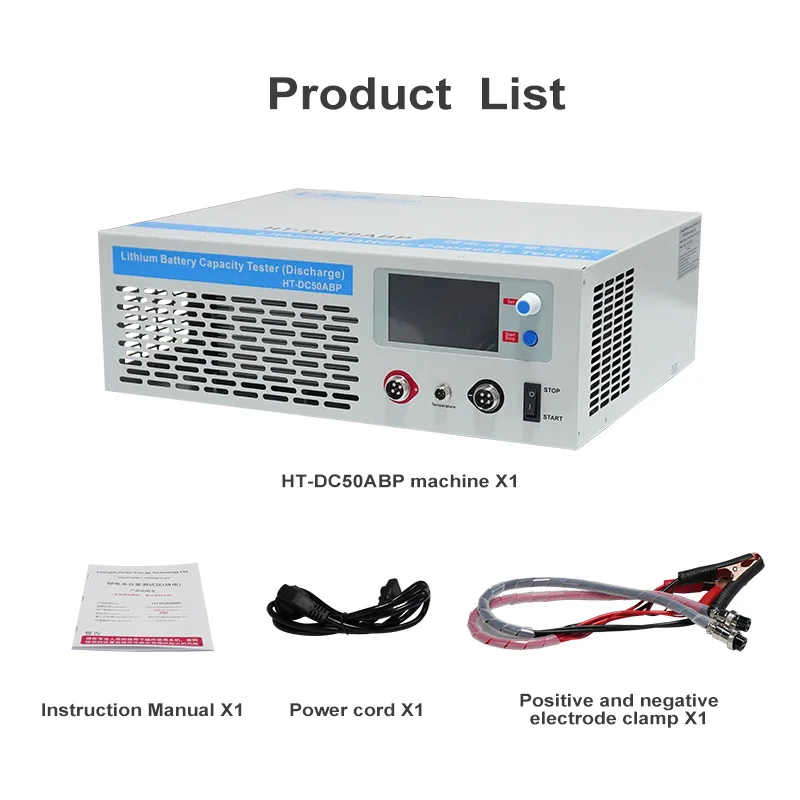

🔹 What’s Included?
HT-DC50ABP Tester Unit
Power Cable
User Manual
✅ Ideal for:
Battery recycling centers
Energy storage system testing
EV battery maintenance
R&D labs
Not for:
Batteries above 120V
Non-rechargeable/zero-voltage/damaged batteries
Unsupervised environments
