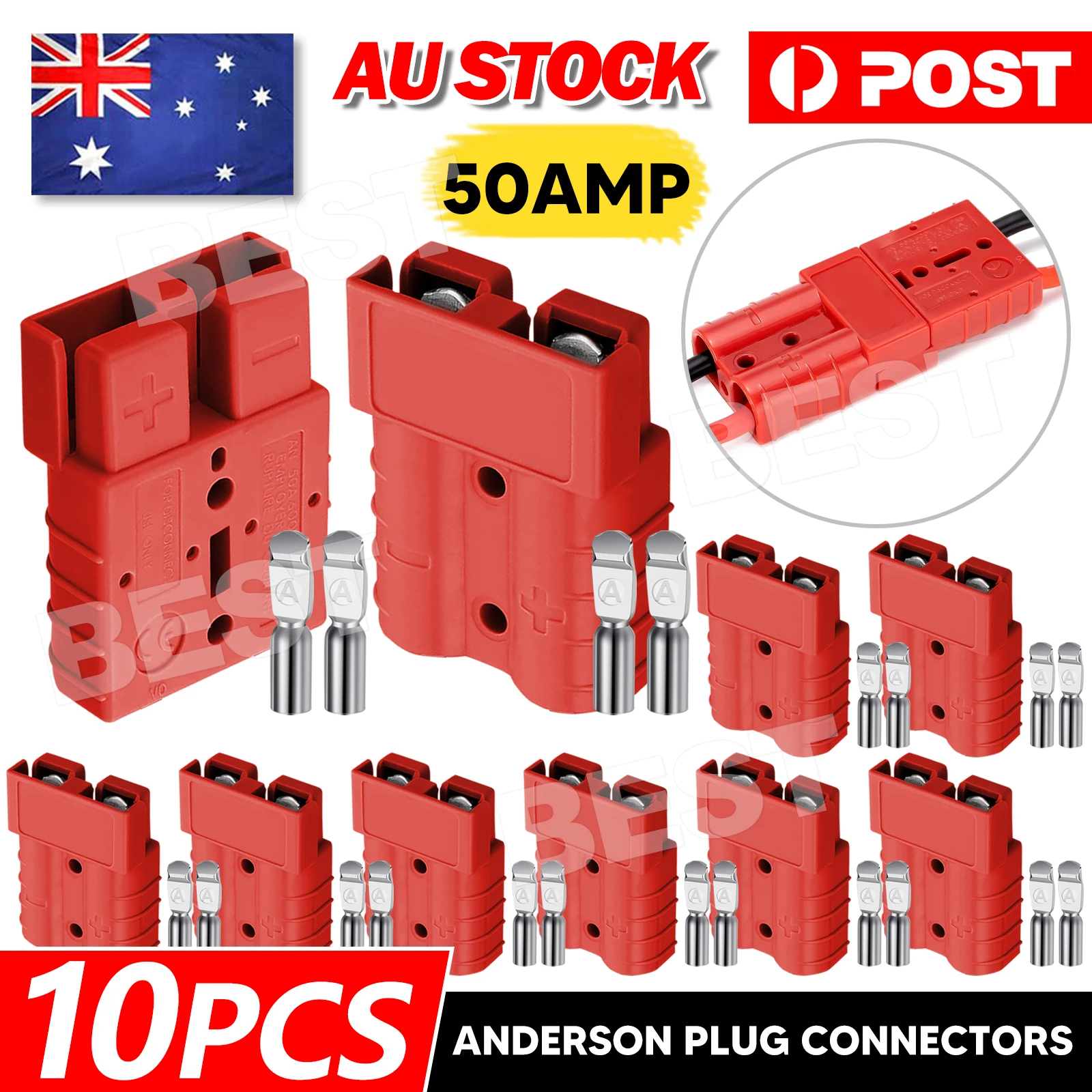

10PCS Anderson Style Plug 50 AMP 6AWG Red Connectors Caravan Mounting DC 12V 24V



- Feature

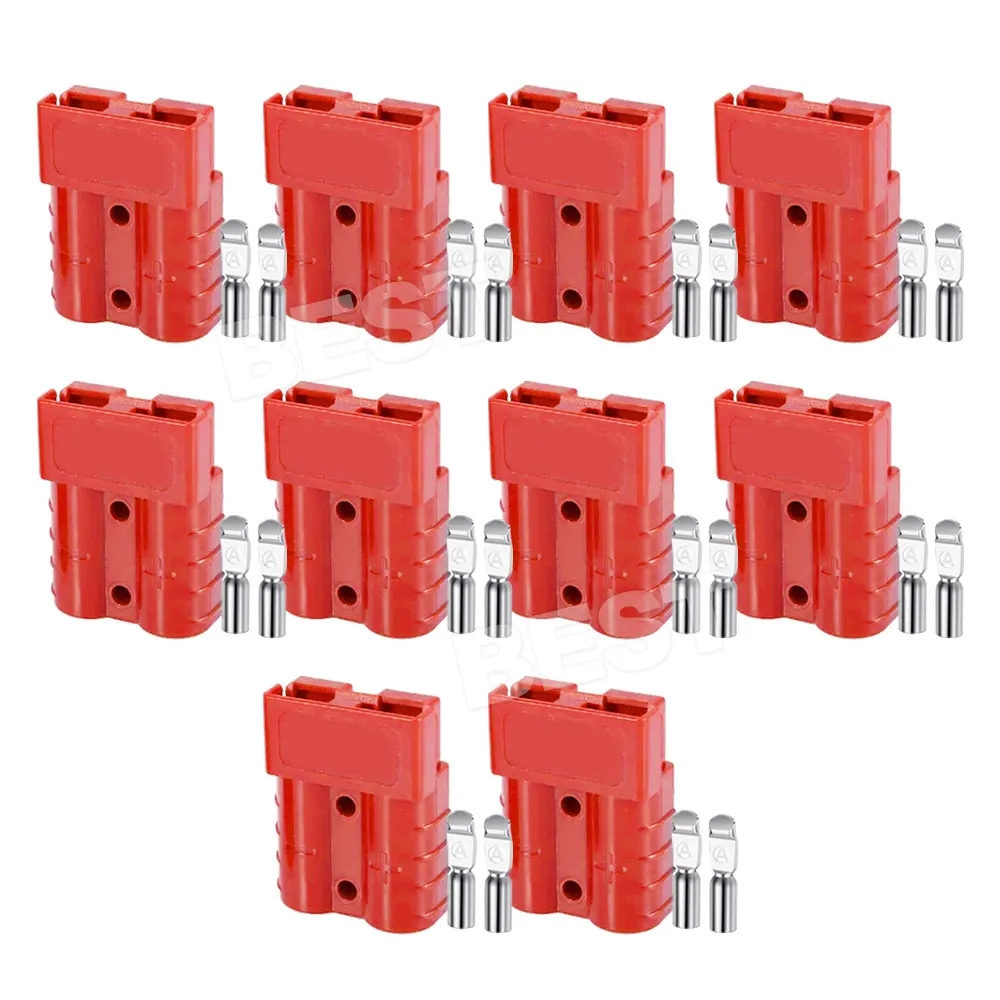

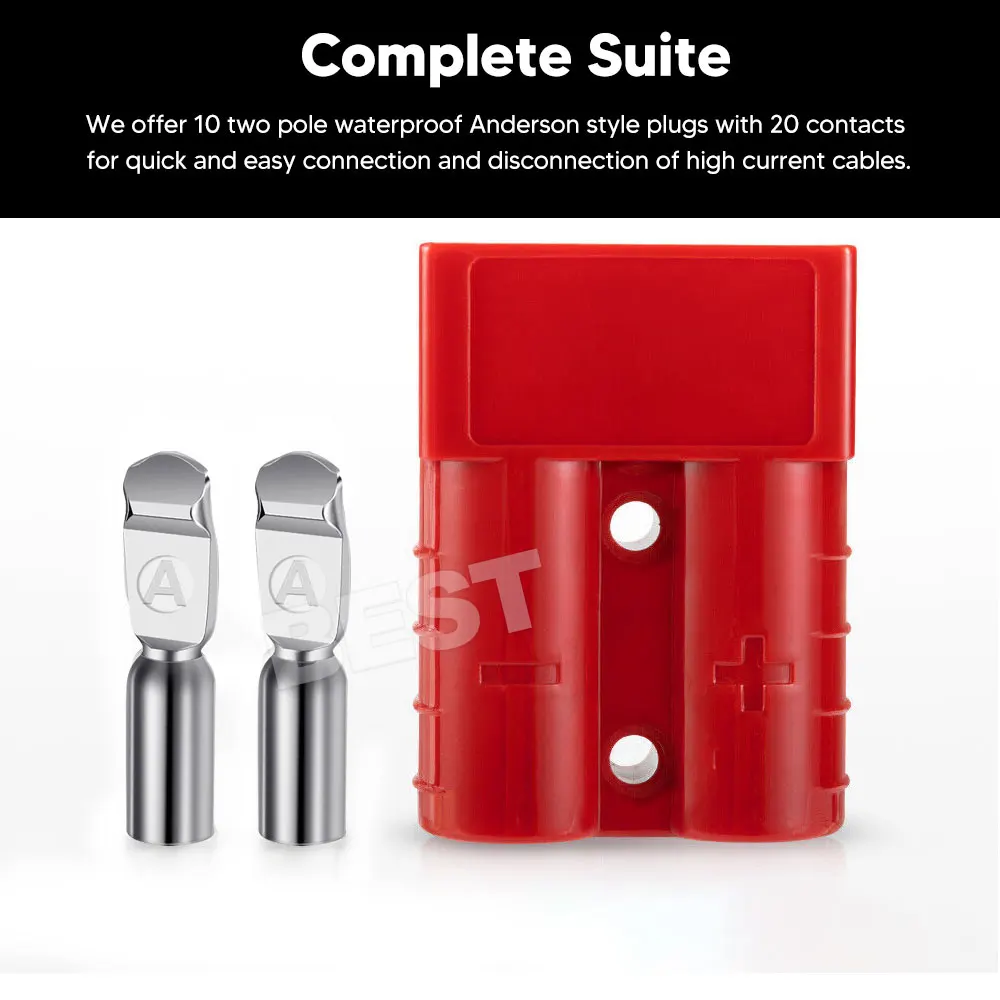

- Complete Suite: We offer 10 two pole waterproof Anderson style plugs with 20 contacts for quick and easy connection and disconnection of high current cables.

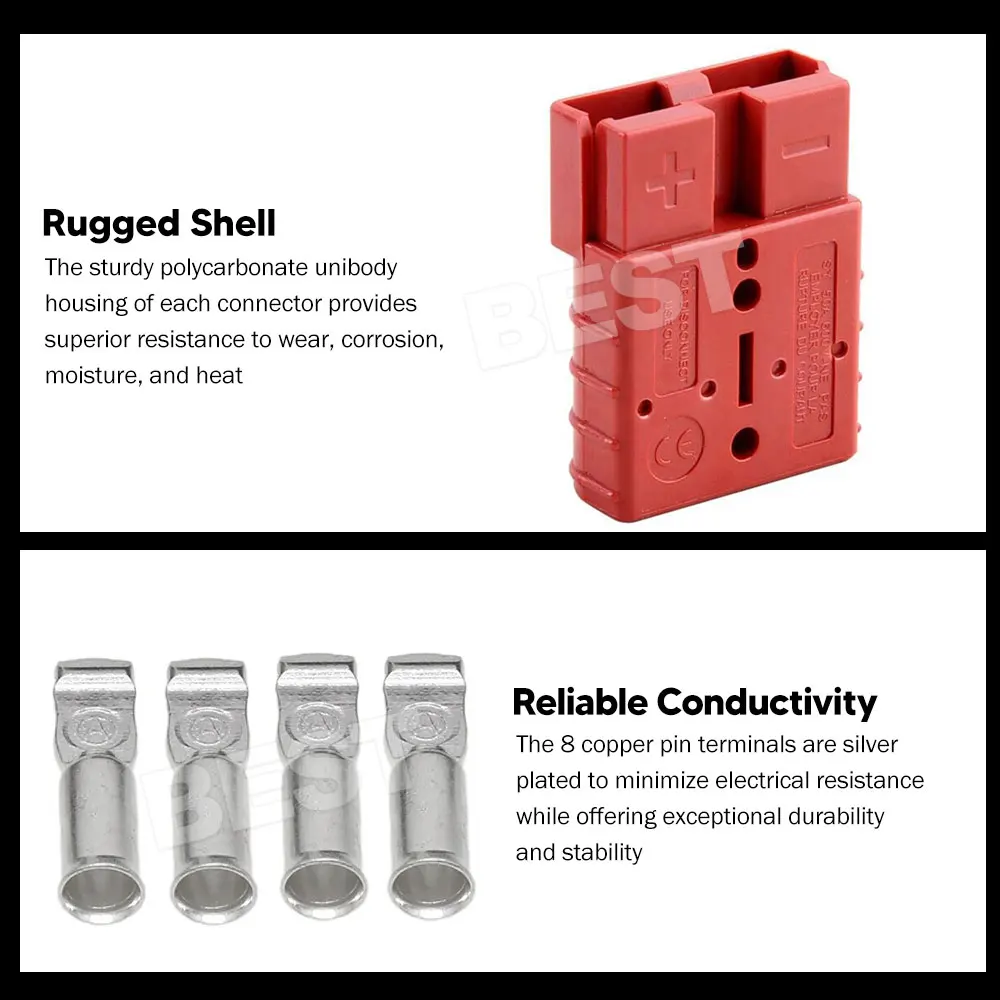

- High Durability: The Anderson style plugs are made of sturdy polycarbonate and ready to withstand impact, vibration, solvents and hydro carbons, etc.
- Antioxidant Contacts: Silver plated copper contacts that feature a sacrificial tip allow high current circuit interrupt as well as offering low resistance.
- Outstanding Performance: The genderless plugs can handle up to 50 amperes per pole and accommodate wire ranges of #16 to #6 AWG (1.5 to 13.3 mm²).

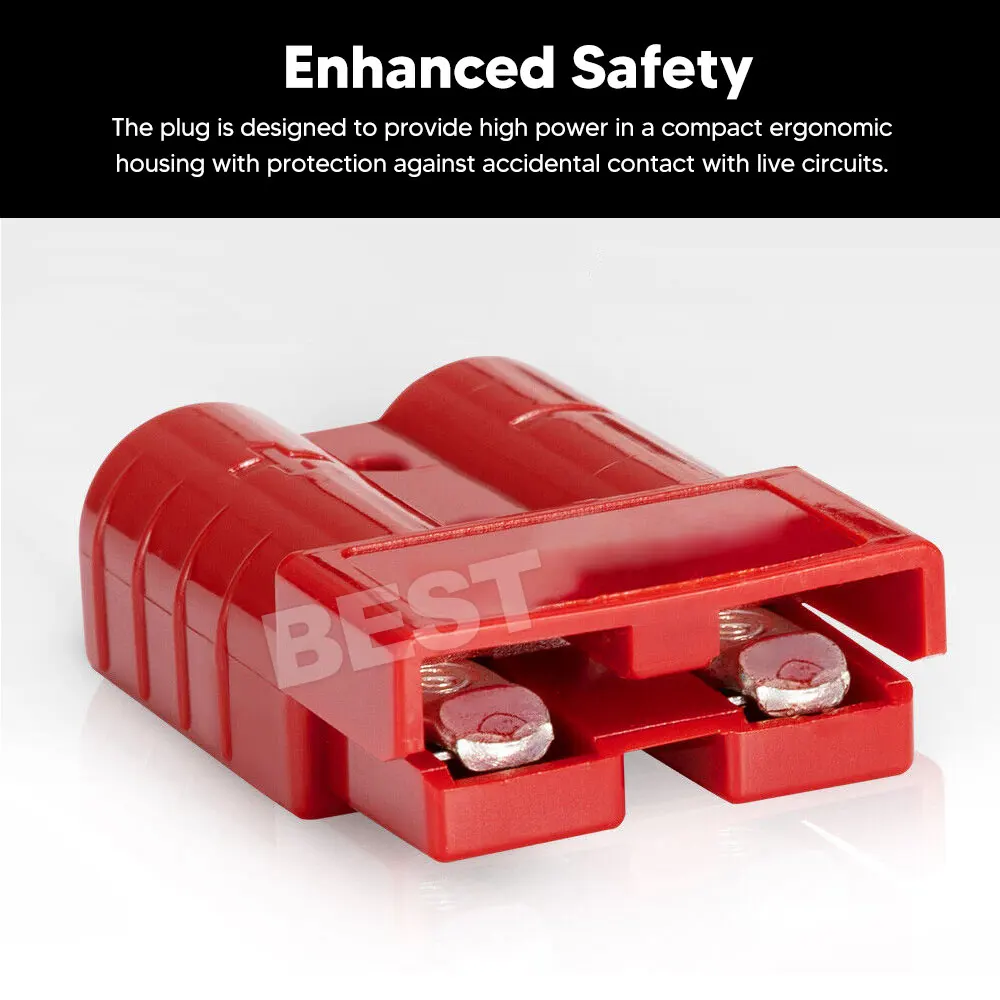

- Enhanced Safety: The plug is designed to provide high power in a compact ergonomic housing with protection against accidental contact with live circuits.
- Super Versatility: Compatible with a 12V or 24V DC power source, this suite is suitable for solar panels, dual battery systems, caravans, 4WD, fridges, etc.
- Terminal Insertion: Observing the polarity markings, insert the terminal that can be crimped or soldered into the connector housing until a sharp click is heard.
- Terminal Removal: Press the sprung metal tabs inside the connector housing fully flat by using a suitable tool and withdraw the terminal.

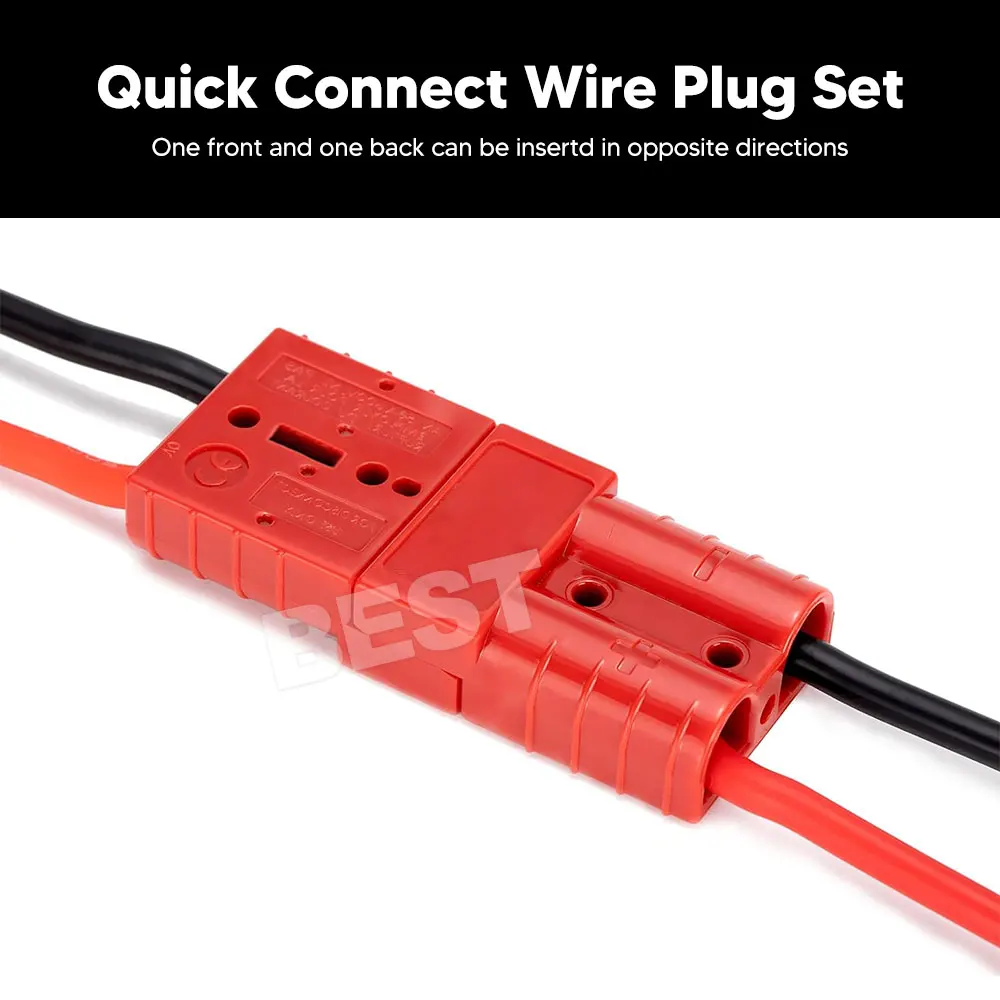

- Flat Wiping: Allowing for minimal contact resistance at high current, the self-wiping action cleans contact surfaces during connection/disconnection.
- A red Anderson plug will only fit into a red Anderson plug. Please do not connect a red to a grey.

- Specification
- Colour:Red
- Current Rating:50A
- Voltage Rating:600V
- Voltage:For 12V or 24V use
- Amperage Rating:50A
- Voltage:600V (Maximum)
- Operating Voltage:12V-24V
- Contact Barrel Wire Size:#16 to #6 (AWG), 1.5 to 13.3(mm²)
- Operating Temperature:-20°C ~105°C
- Gross Weight: 0.227kg
