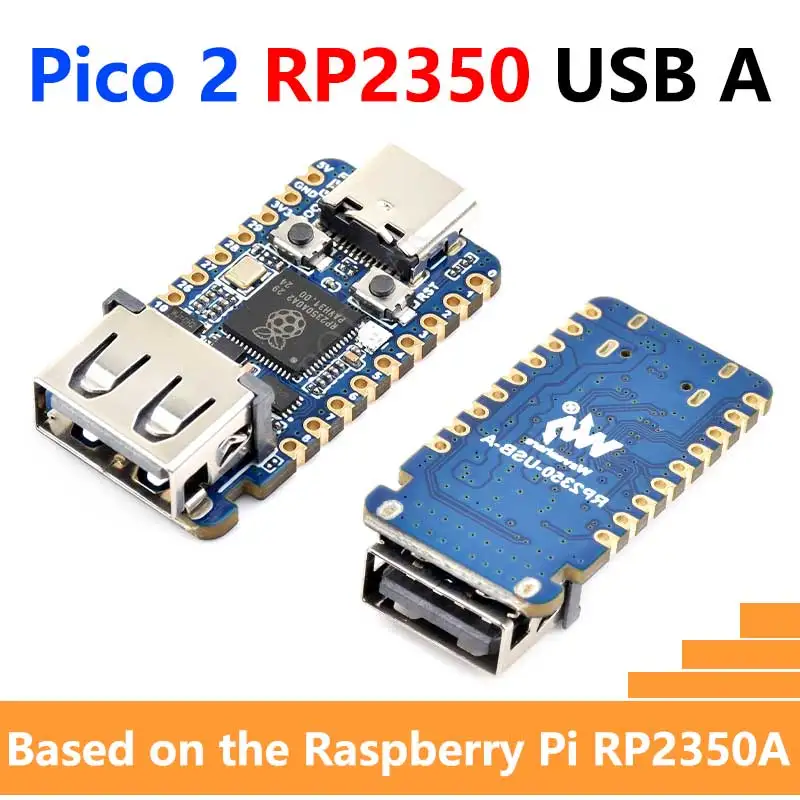

Raspberry Pi Pico 2 RP2350A RP2350 USB A Development Board

【Overview】

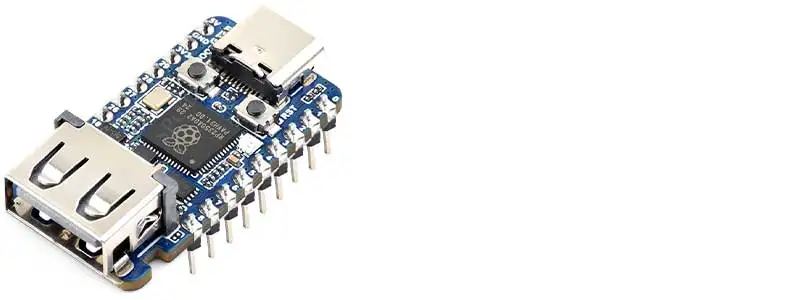

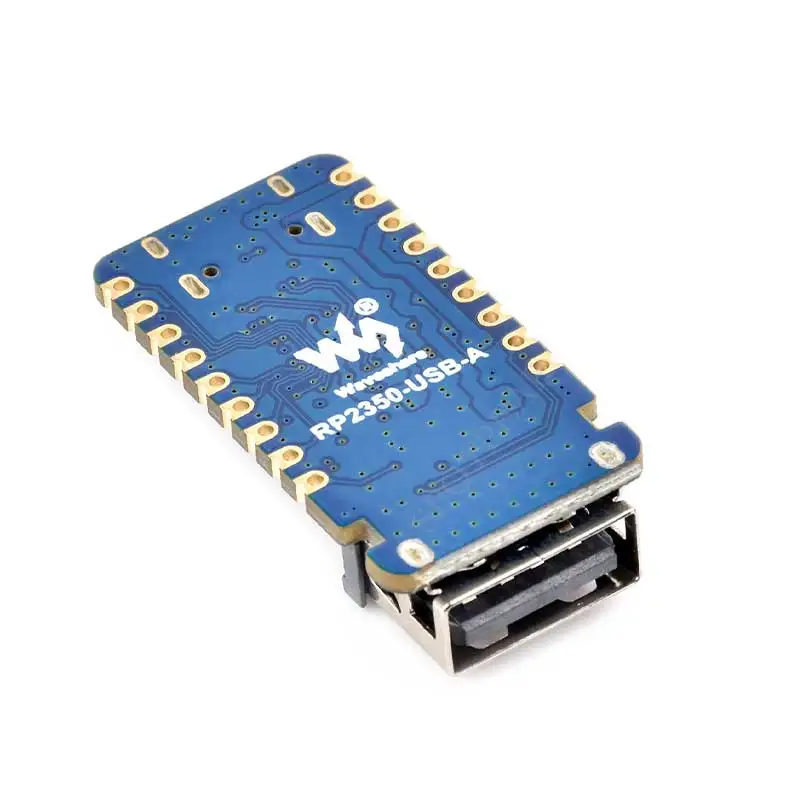

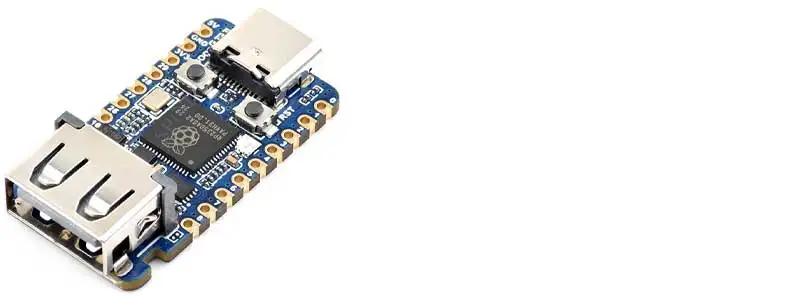

[] RP2350-USB-A Mini Development Board

[] Based on Raspberry Pi RP2350A, with onboard USB interface

[] Using half-hole technology, it can be welded on a custom board

【Features】

[] It uses the RP2350A microcontroller chip designed by Raspberry Pi

[] The unique dual-core and dual-architecture is equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard 3 RISC-V processor, with a clock running frequency of up to 150MHz

[] Built-in 520KB SRAM and 2MB on-chip Flash

[] Using the Type-C interface, it keeps up with the trend of the times and does not need to worry about whether to insert it in the right or wrong direction

[] The stamp hole design can be directly welded and integrated into the baseboard designed by the user

[] USB1.1 host and device support

[] Onboard 1 USB expansion port, compatible with USB2.0/1.1 transmission

[] Support low-power sleep and hibernation modes

[] Can be identified as a large-capacity storage device through USB for drag-and-drop downloading

[] RP2350A's 15 GPIO pins are brought out

[] 2 SPI, 2 I2C, 2 UART, 4 12-bit ADC and 14 controllable PWM channels

[] Accurate on-chip clocks and timers

[] Built-in temperature sensor

[] On-chip accelerated floating-point library

[] 12 programmable I/O (PIO) state machines for custom peripheral support

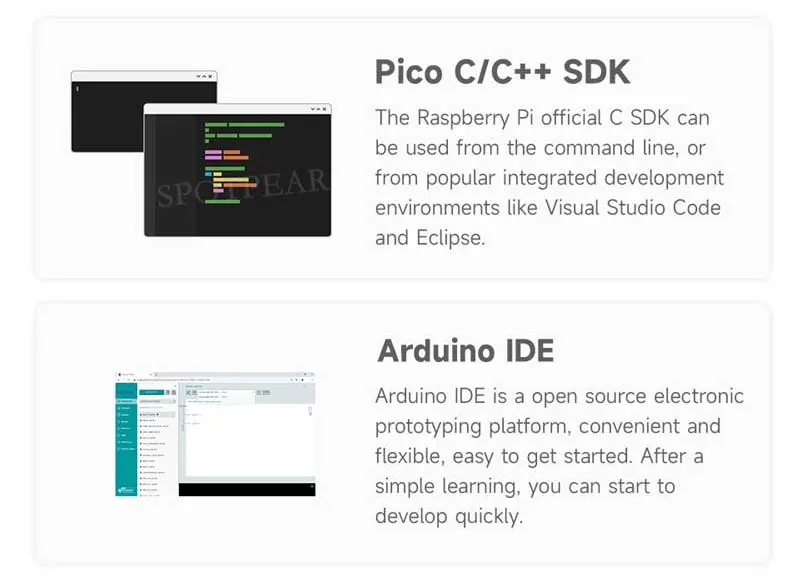

【C/C++，Arduino】

[] Complete SDK and open source tutorials are provided to make it easy to get started and can be quickly embedded into applications

【Dual-core, dual-architecture processor】

[] Equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard 3 RISC-V processor

[] Running frequency up to 150 MHz

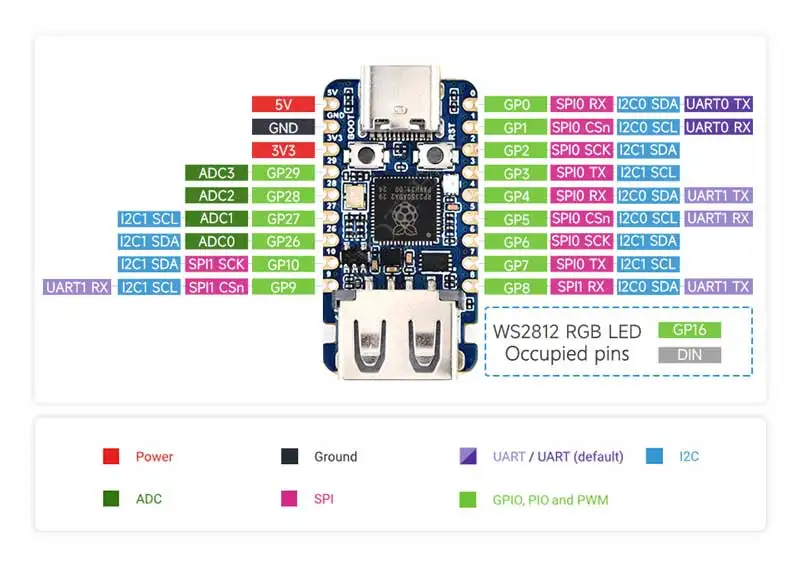

【15 multi-function GPIO pins】

[] Supports configuration pin function, which can be easily and flexibly developed and integrated

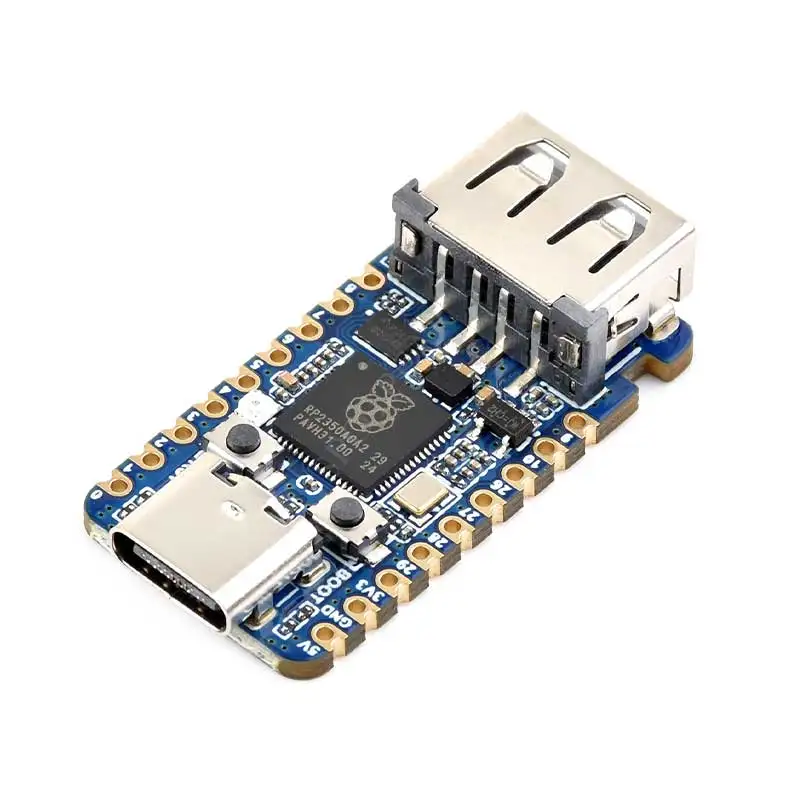

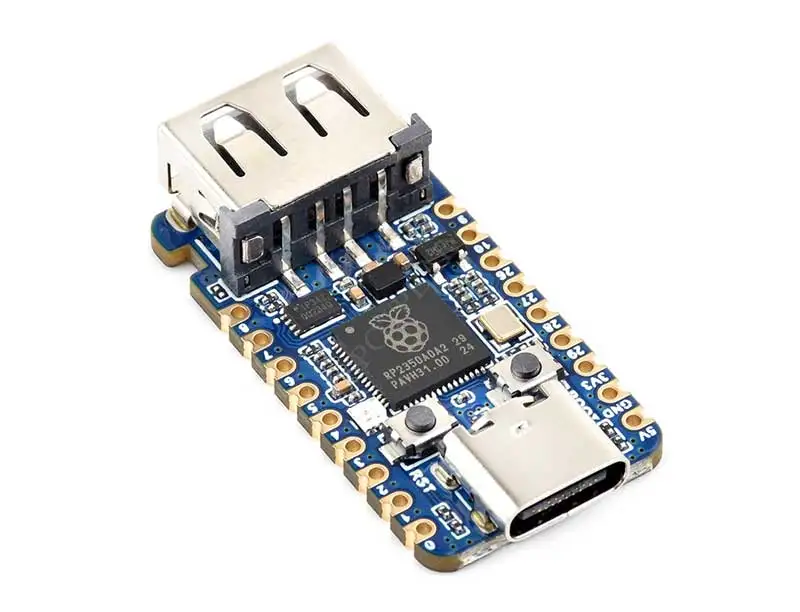

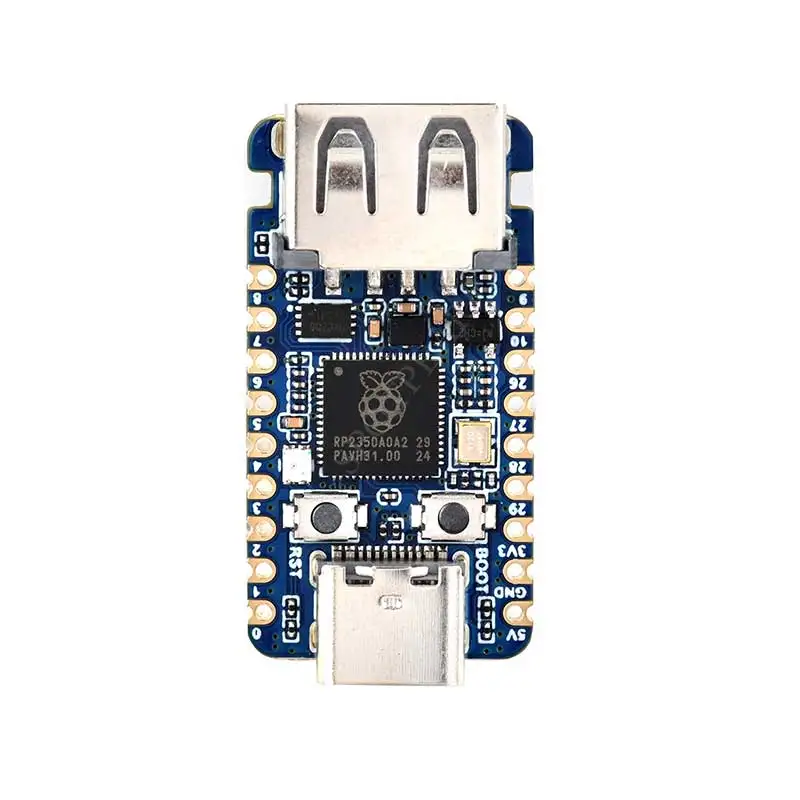

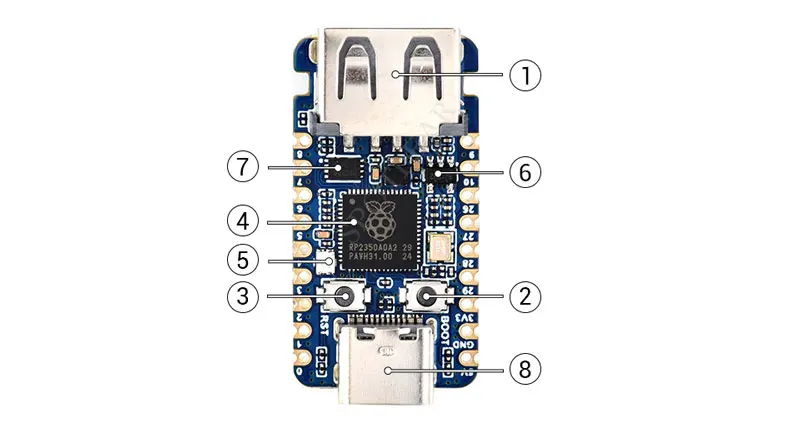

【Resource Overview】

1. USB 2.0 Type A port

   Can be used as USB host or slave through PIO

2. BOOT button

   Press during reset to enter download mode

3. RESET button


4. RP2350A

   Dual-core, dual-architecture processor, 150MHz operating frequency

1. WS2812

   Cool RGB LED

2. RT9013-33GB

   500mA Low Dropout, Low Noise, Ultrafast LDO

3. W25Q16JVUXIQ

   2MB NOR-Flash

4. USB Type-C port

   Used to download programs and supports USB1.1 host and slave devices

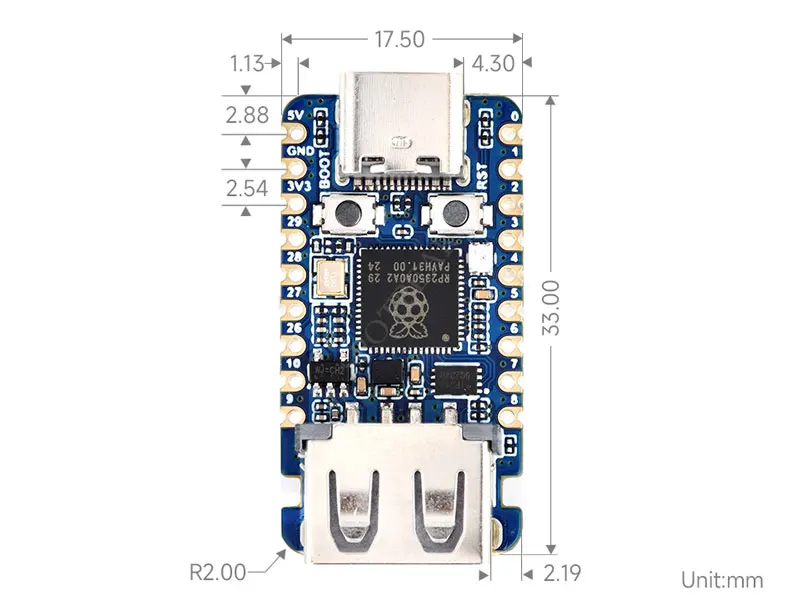

【Size】

【PACKAGE CONTENT】

[] RP2350-USB-A【Not Soldered】

[] RP2350-USB-A-H【Soldered】
