NICE-POWER RS232 Programmable LAB Power Supply 200V 300V DC Adjustable Laboratory Maintenance Workbench 30V 10A Edit Stored Data

Product Introduction

Product Features

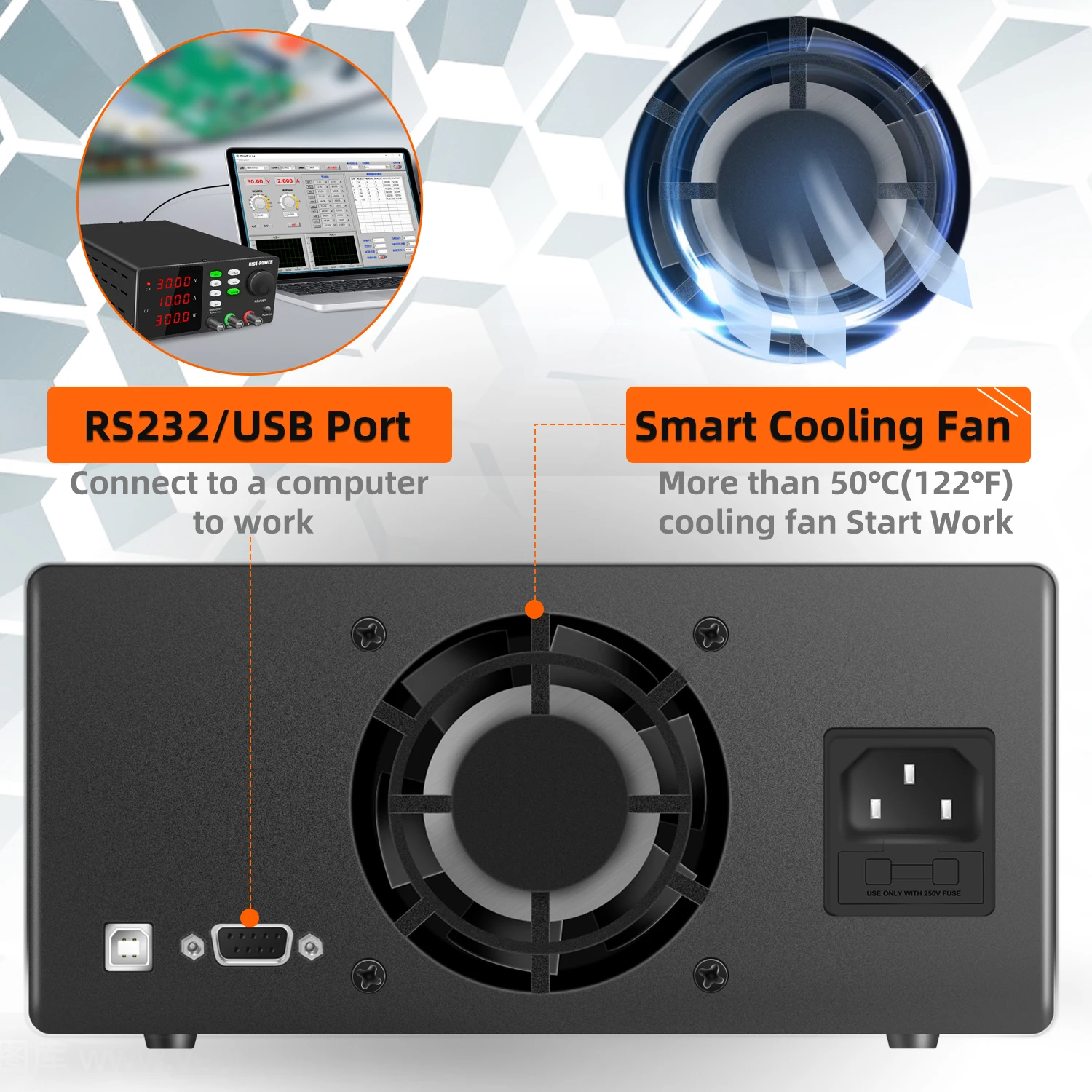

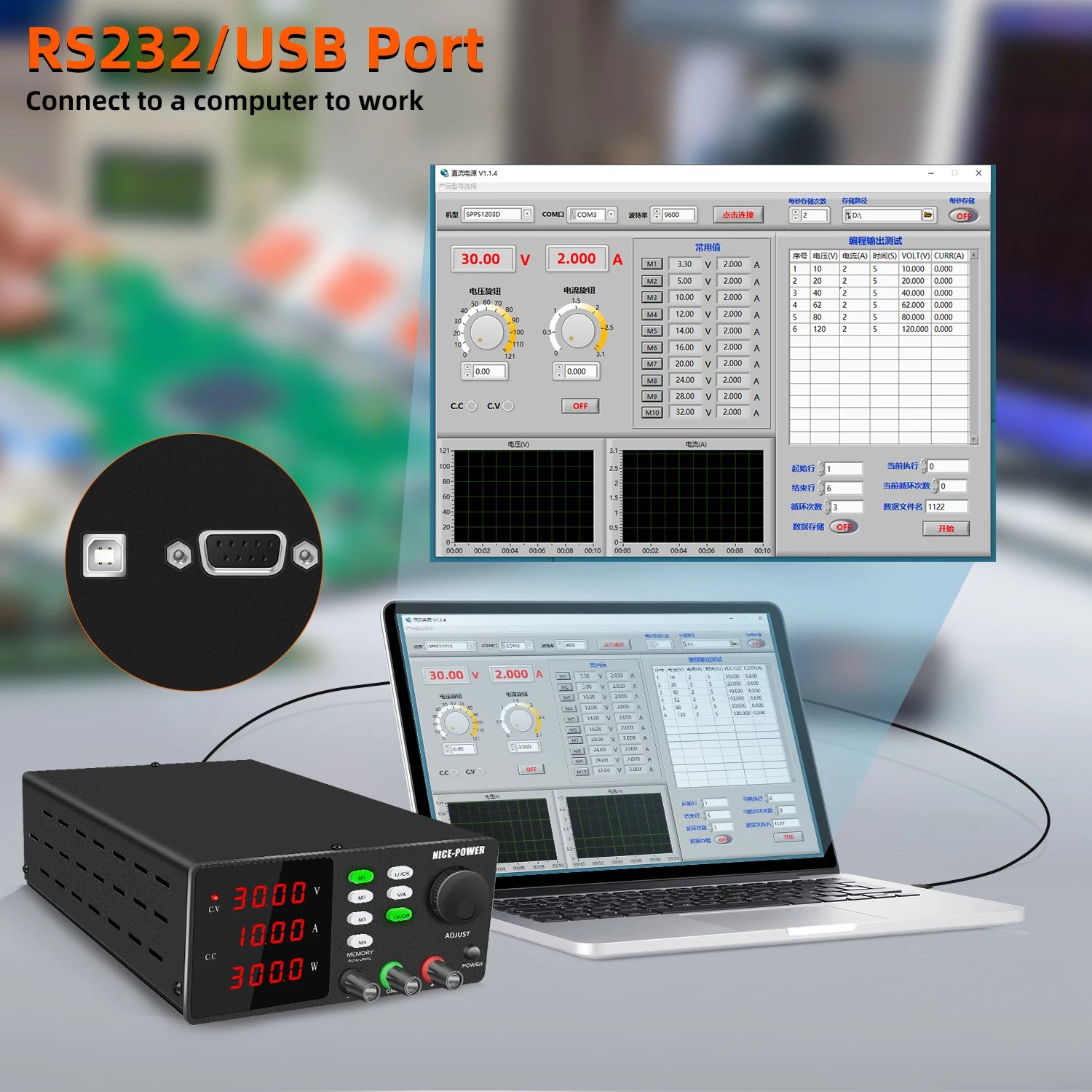

With RS-232 and USB interfaces, you can directly connect to the computer and store data. Please contact us when you receive the package, and we will provide you with software immediately.

Product introduction:

HIGH ACCURACY WITH EASY CONTROL INTERFACE

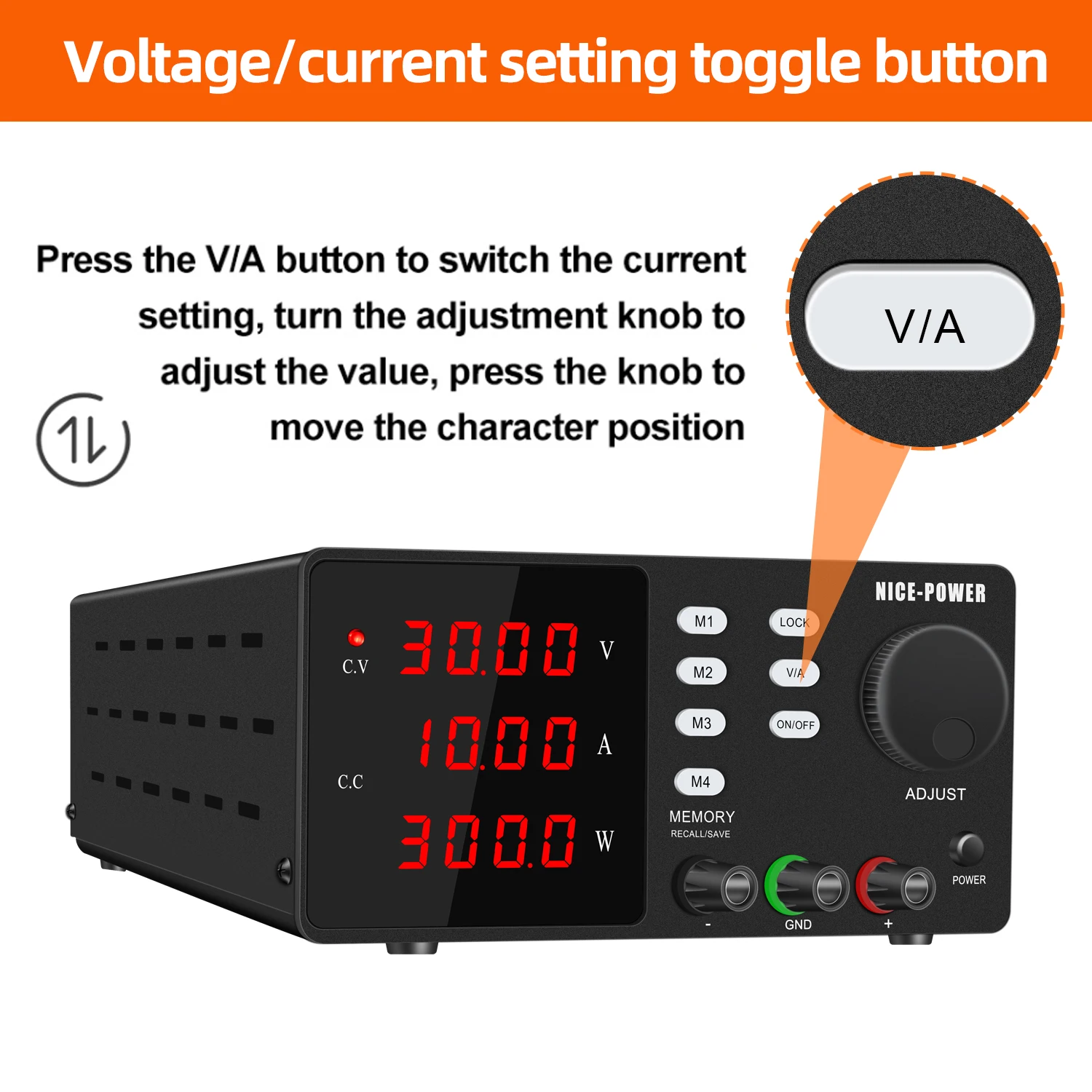

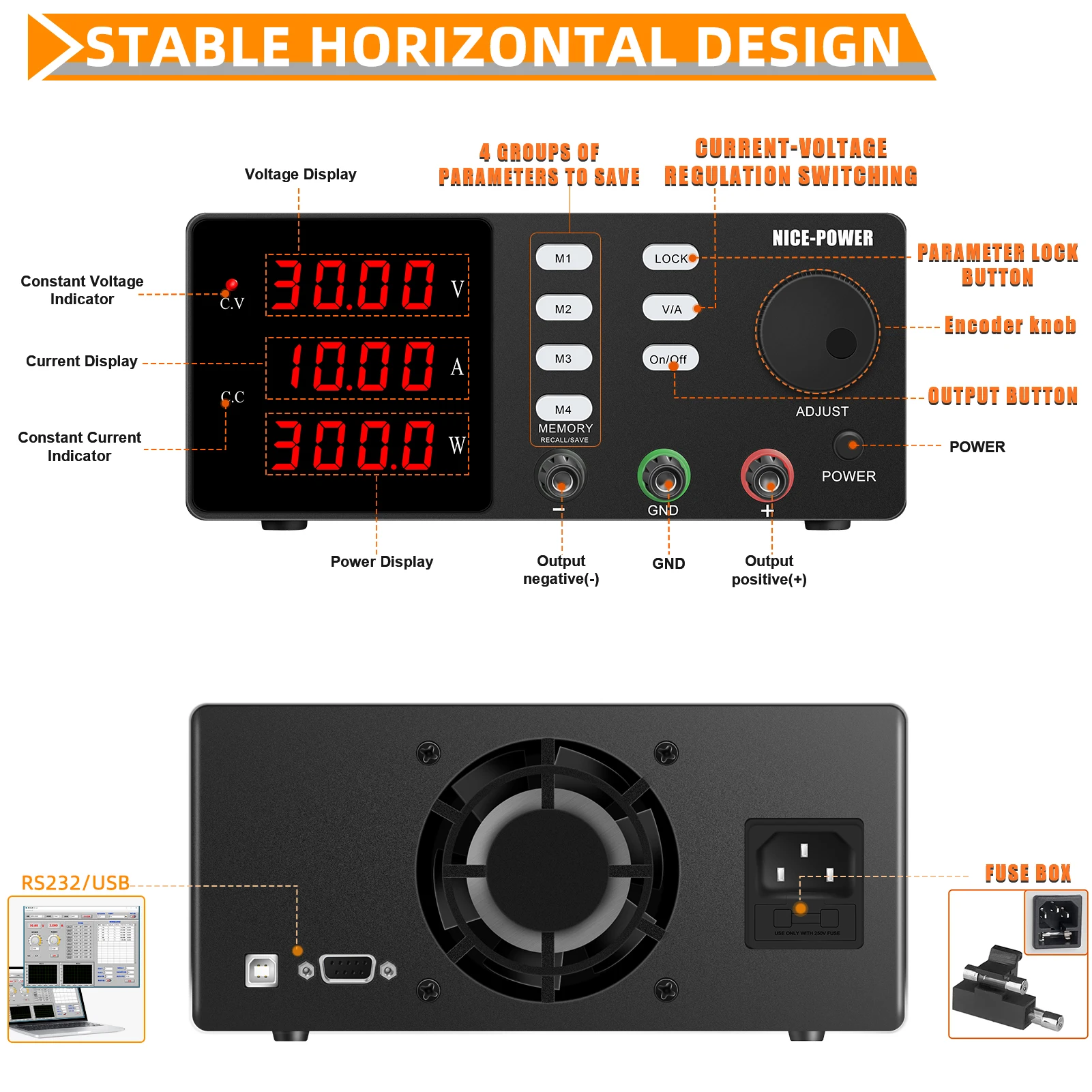

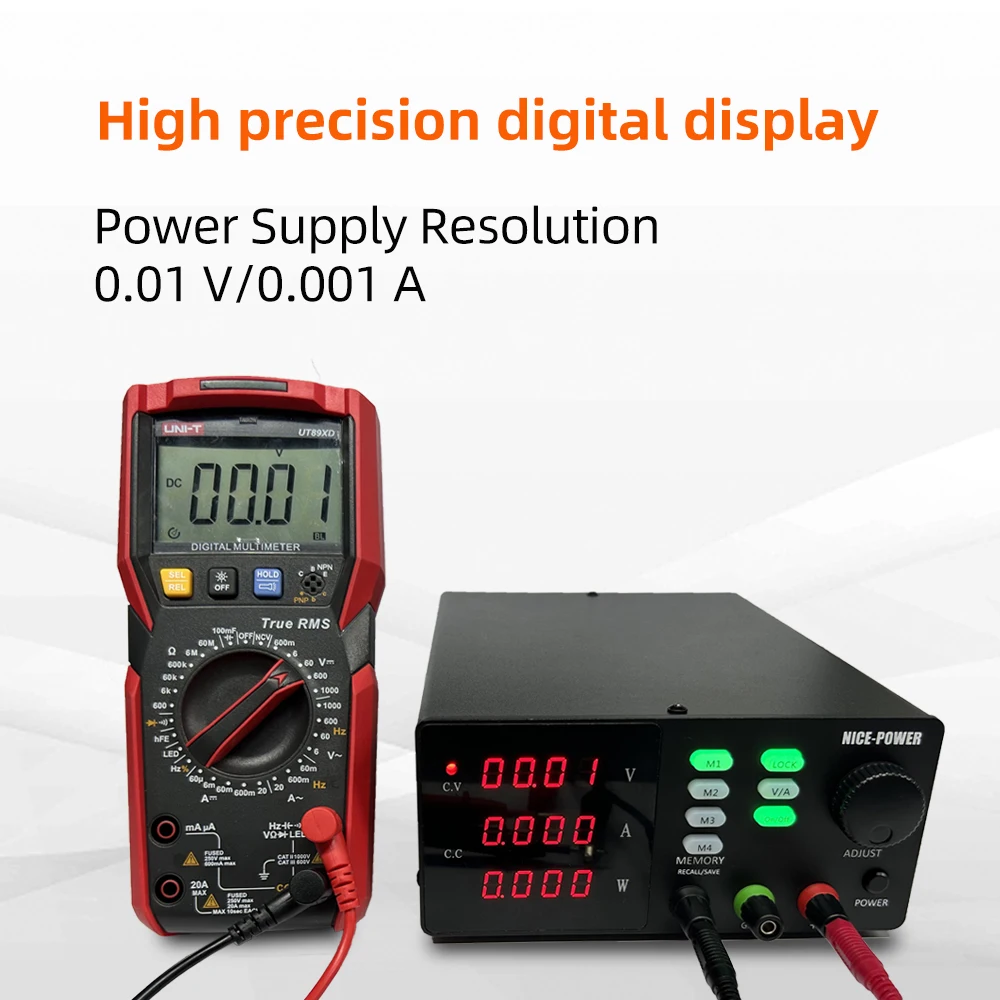

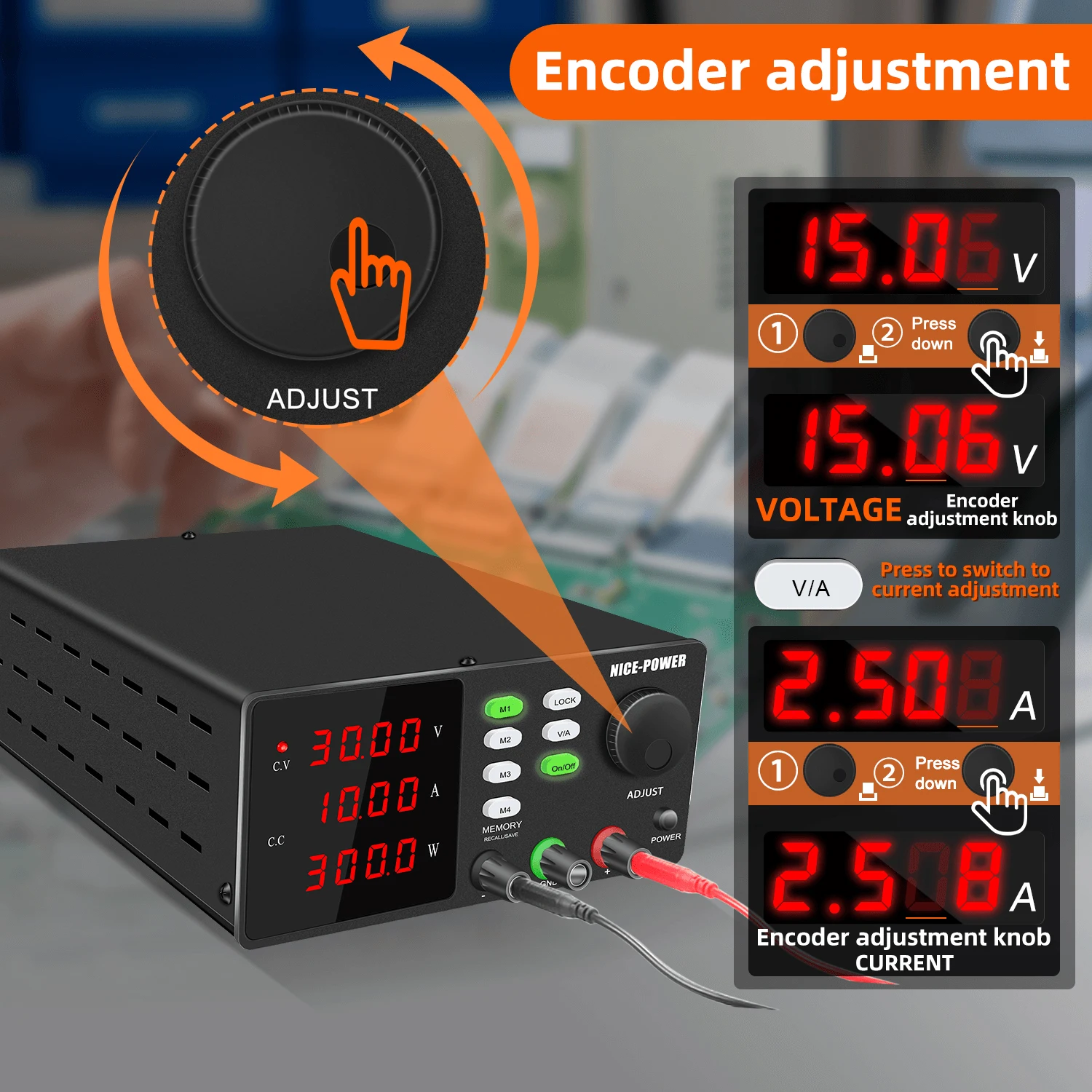

MPU micro-system, encoded-controlled fine & coarse adjustment knob assures not only high precision but also high trueness. Featured keyboard lock function, 4 digitals LED display (0.01V and 0.001A) and auto power calculation guarantee stable current output and clearly visible readout.

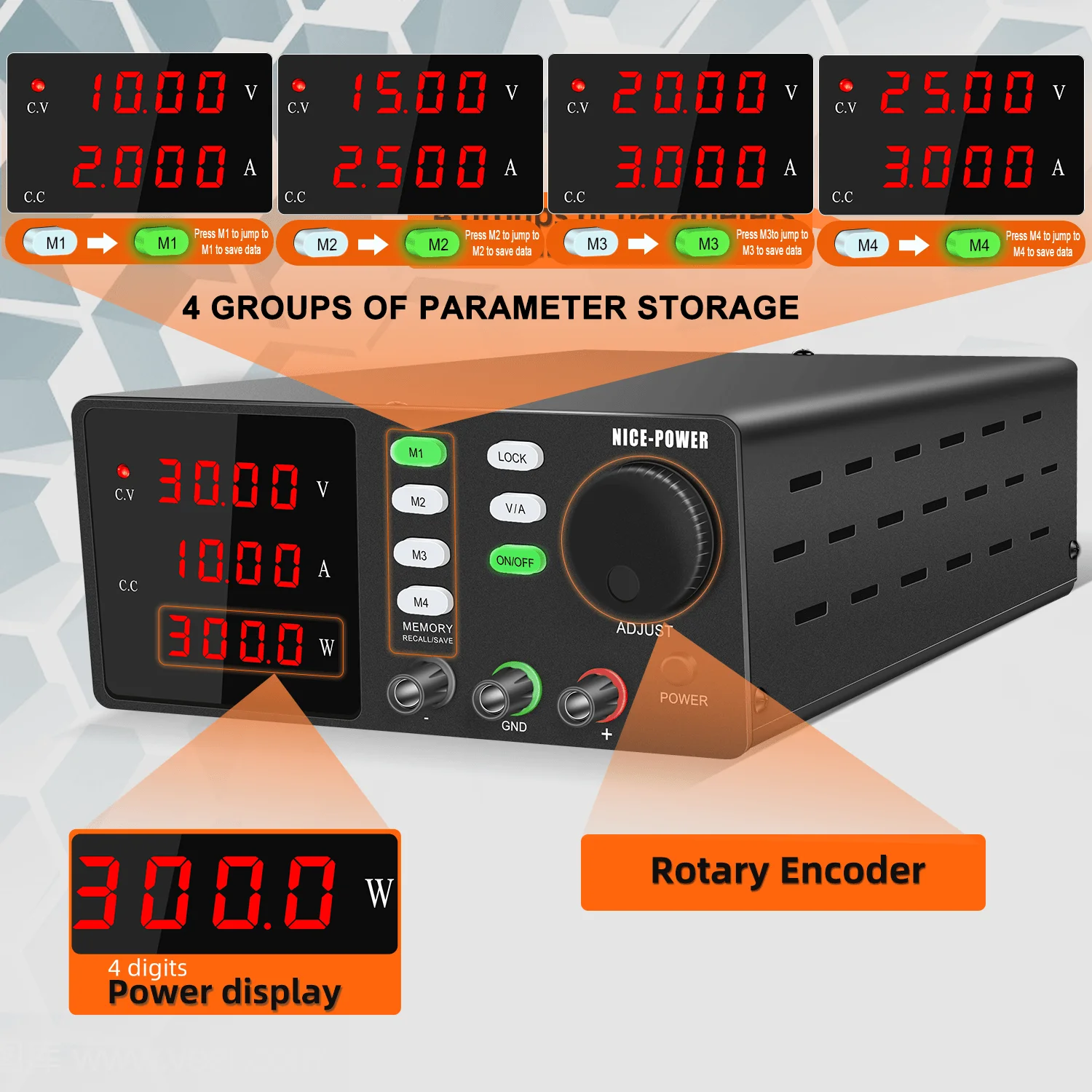

STORAGE AND RECALL MEMORY FUNCTION

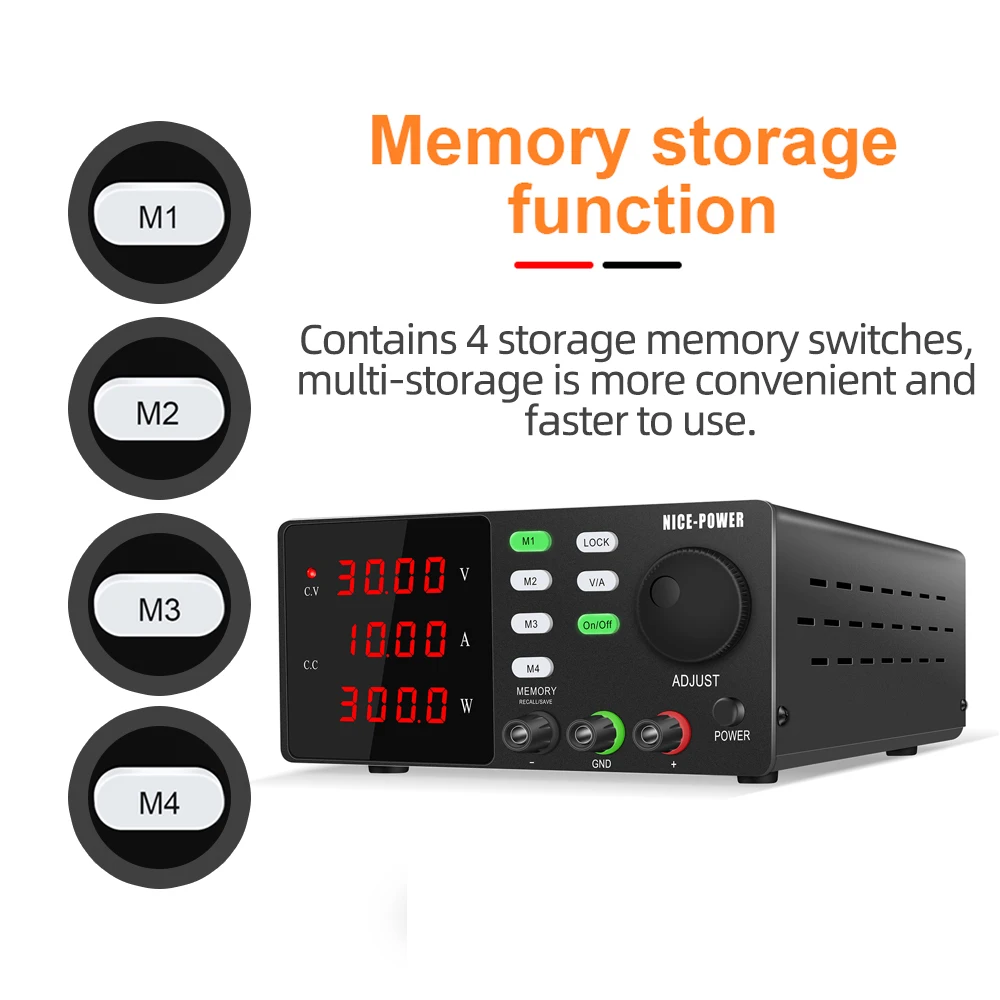

Features 3 buttons with Storage and recall memory function. Easily storage or recall the commonly used current/voltage only by pressing the button. Support Constant Current (C.C.) and Constant Voltage (C.V.) modes.

EXTRA COMPACT & PORTABLE

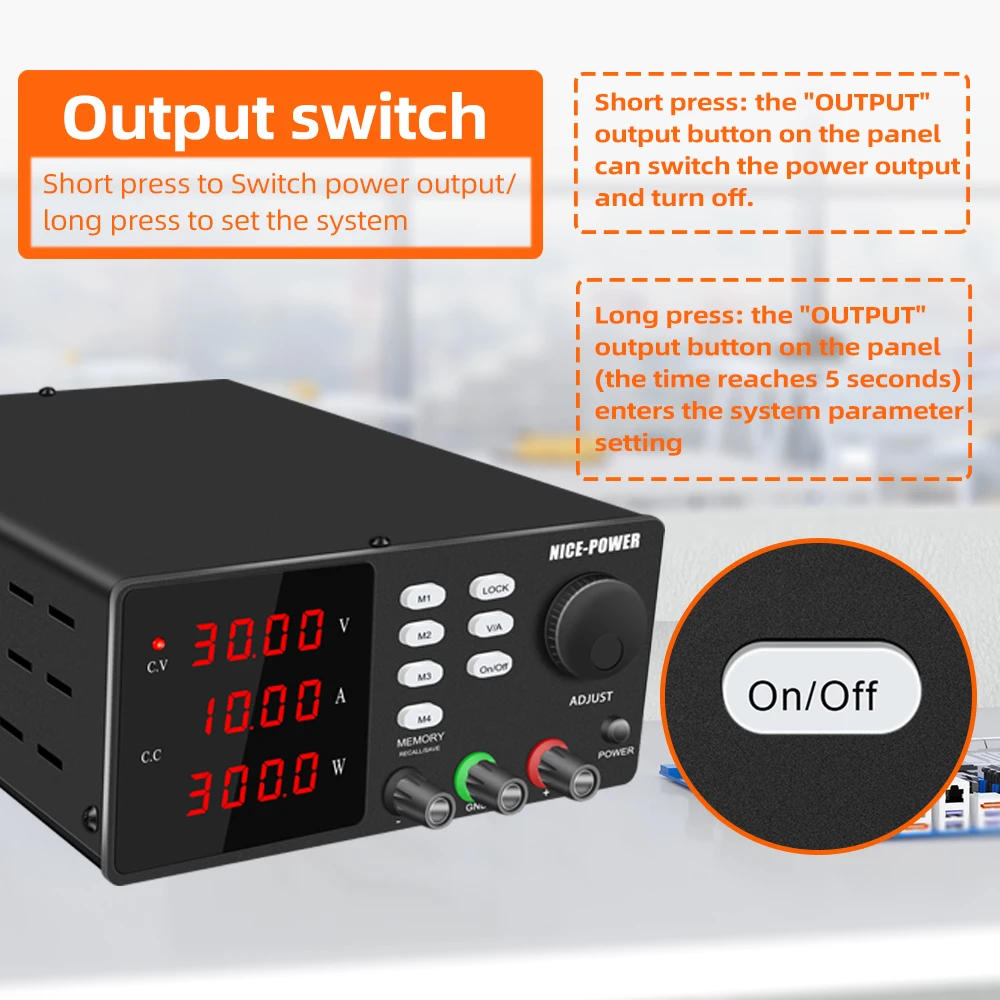

With power switch function and current output button, bench power supply is well suited for laboratories, schools, electrical maintenance, diy electronics, amateur, suitable for lab & industrial use

BUILD TO LAST
FCC & CE certified product. Built-in OCP (Over Current Protection), OVP (Over Voltage Protection), and short circuit protection. Special left & right vents and internal cooling fan to prevent overheating.

1. For Factory Production line test.
2. For Mobile phone ,computer repair, electrical appliance maintenance,Car DVD, car audio, etc.
3. For Product aging, electroplating,titanium oxide,electrolysis,such as resistors, jewelry,capacitors, relays, DC motors, LEDs, etc.
4. For Charge the battery (Include car battery).
5. For Laboratory, scientific research teaching,factory, maintenance power supply,school ,scientific research , production line use,etc.
6. For Security monitoring system, fire protection system, building automation system

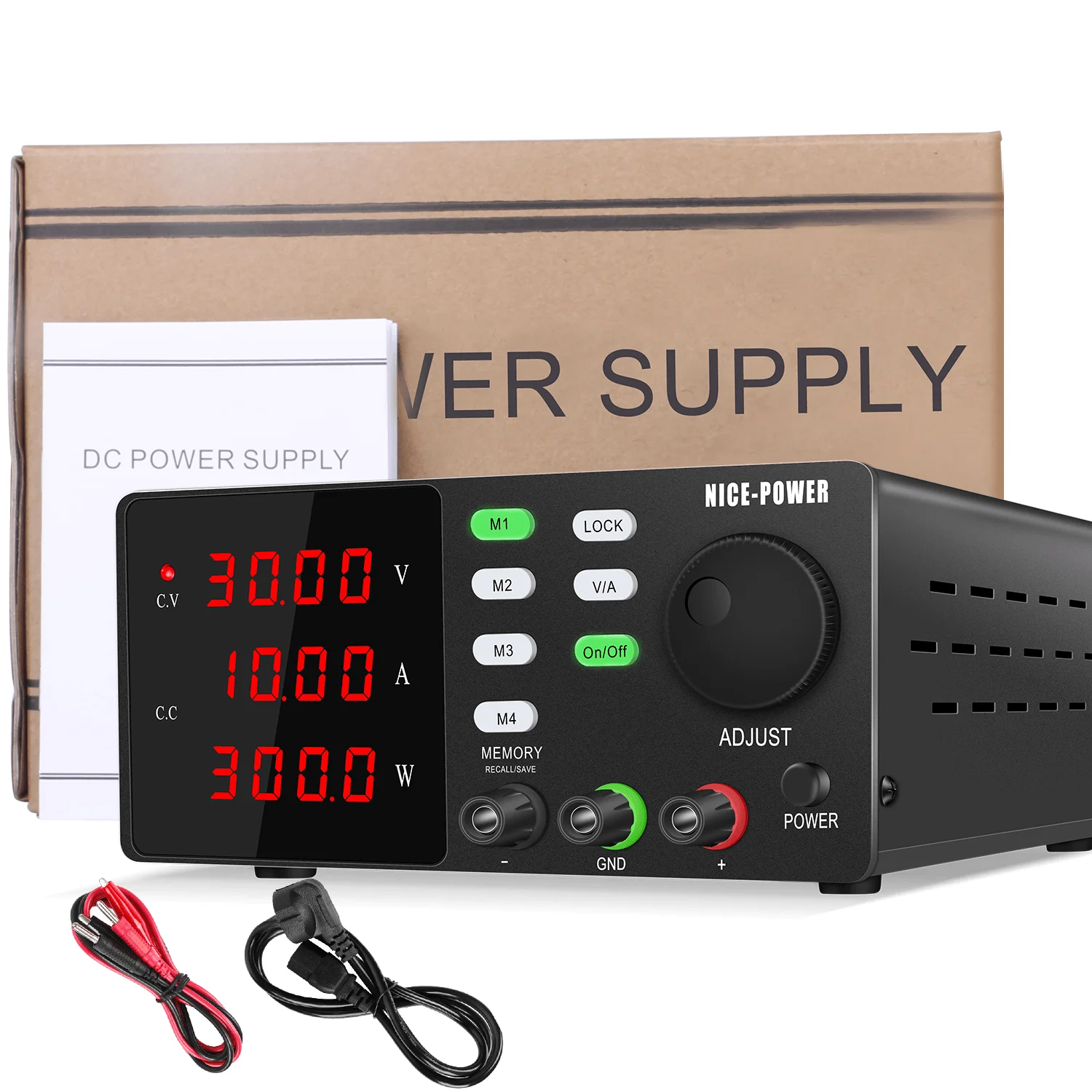

Your Packing List include:
1X DC Power Supply
1X Power Adapter(EU/AU/UK/US we will send 1 according to you country)
1X Black Output Line
1X Red Output Line
1X USB Line
1X Instruction Book (English)
1X Pakcgae Box（Hard）
2X Protective Sponge
1X Certificate of Conformity(1 Year)

Product Parameters:

The series of switching power supplies for measuring instrument have ruled out the inconvenience of bigvolume and heavyweight of a traditional power supply possess.Four adjustment buttons(C series and S series),The output voltage and current respectively is controlled by two variable resistors with coarse and fine regulation for morehandy and precise adjustment.
1.Have complete operating protection function.over temperature protection,overload protection,short circuit protection.
2.Small size, low ripple,light weight and high power density,Highly efficient.
3.Voltage stabilization, current limiting, simple operation.
4.Constant pressure and constant current switch automatically.
5.Three LED display of voltage, current and power, high precision.
6.Temperature controlled fan heat dissipation, low noise, long life.
7.Four potentiometer more precise adjustment.
8.Dual voltage input and convenient choice.
9.Output Voltage ranges from 0 to 30V/60V/120V rating voltage with continuous adjustment .
10.Output current ranges from 0 to 10A/5A/3A rating current with continuous adjustment.

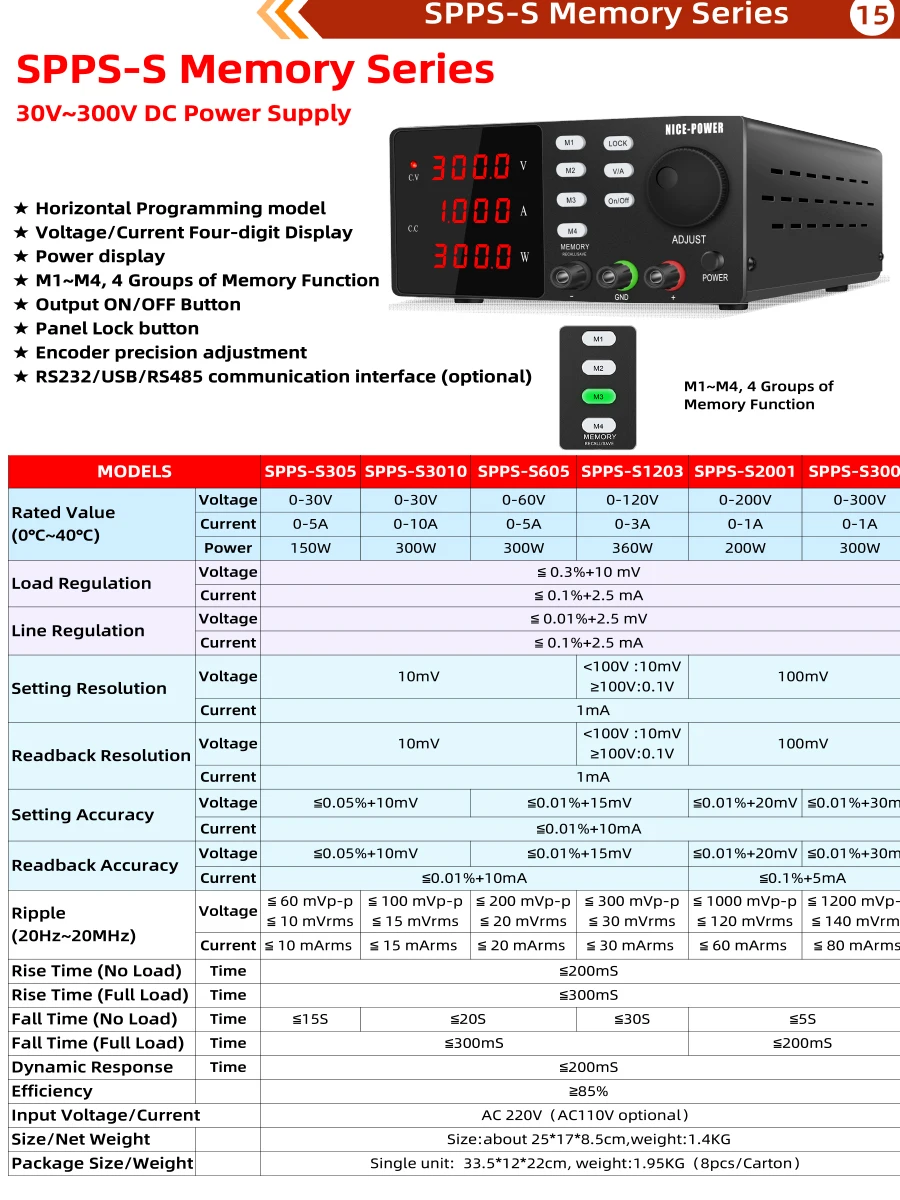

More Parameters
Input voltage:AC 110V/220V 50/60Hz
Output voltage:0 ~ 30V /60V/120V/200V/300V
Output current:0 ~ 10A /5A/3A/1A
Voltage resolution:100mV
Current resolution:10mA
Voltage regulation : Line regulation<5mV. Load regulation<5mV.
Recovery time<500us(50% Load change, minimum load 0.5A)
Ripple & Noise<5m Vrms, 100m Vp-p
Temperature coefficient<100p pm/C.
Current regulation line regulation<3mA. load regulation<3mA.
Indicator Meter
Voltage display precision: +-(0.5% of rdg + 2 digits).
Current display precision: +-(0.5% of rdg + 2 digits).
Operation Temperature & Humidity : 0 ~ 40 C, RH<80%.
Storage Temperature & Humidity : -10 ~ 70 C, RH<70%.

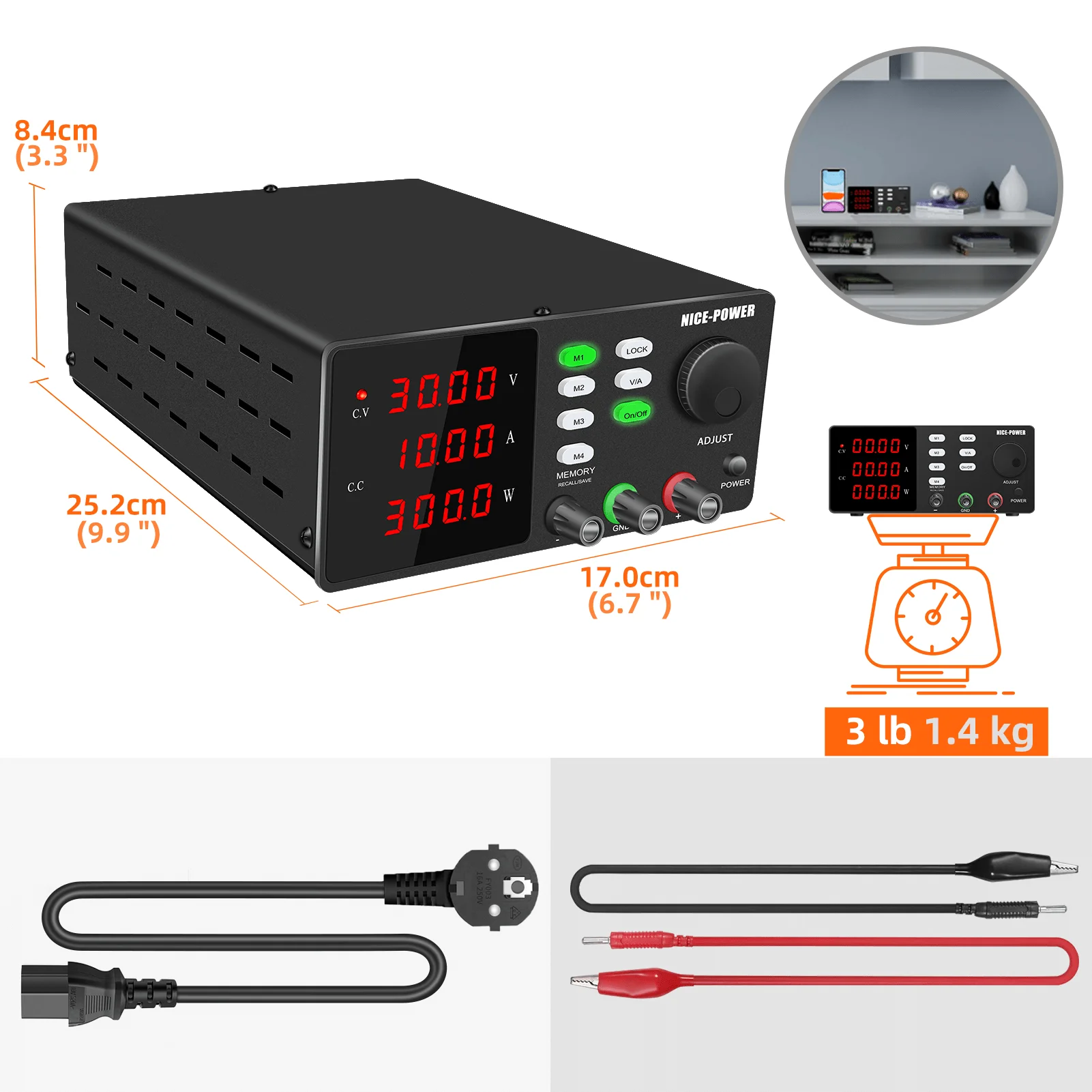

Package Dimensions ‏ : ‎ 12.48 x 8.23 x 5.08 inches
