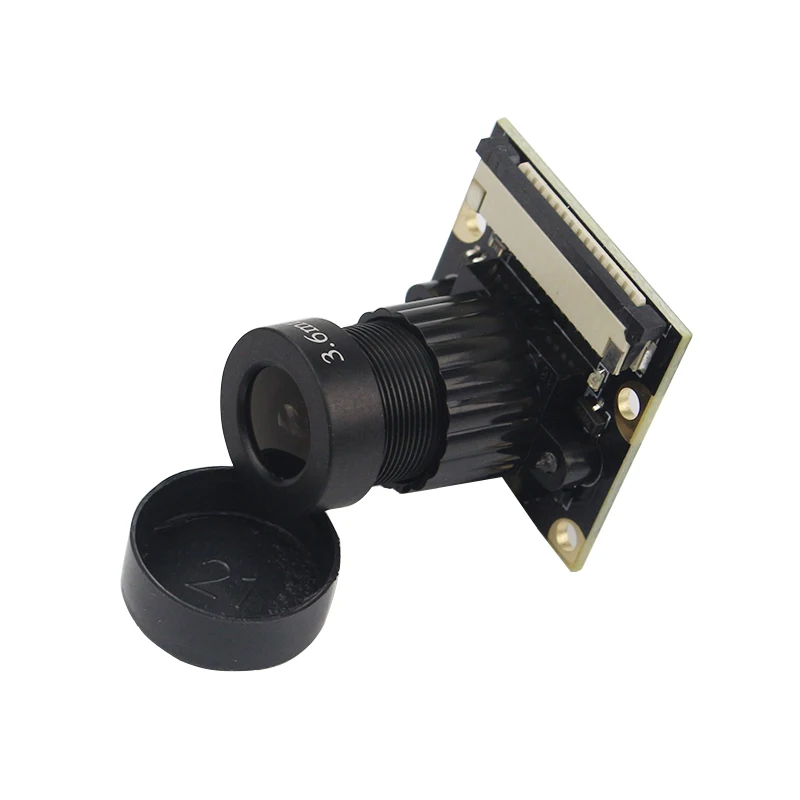

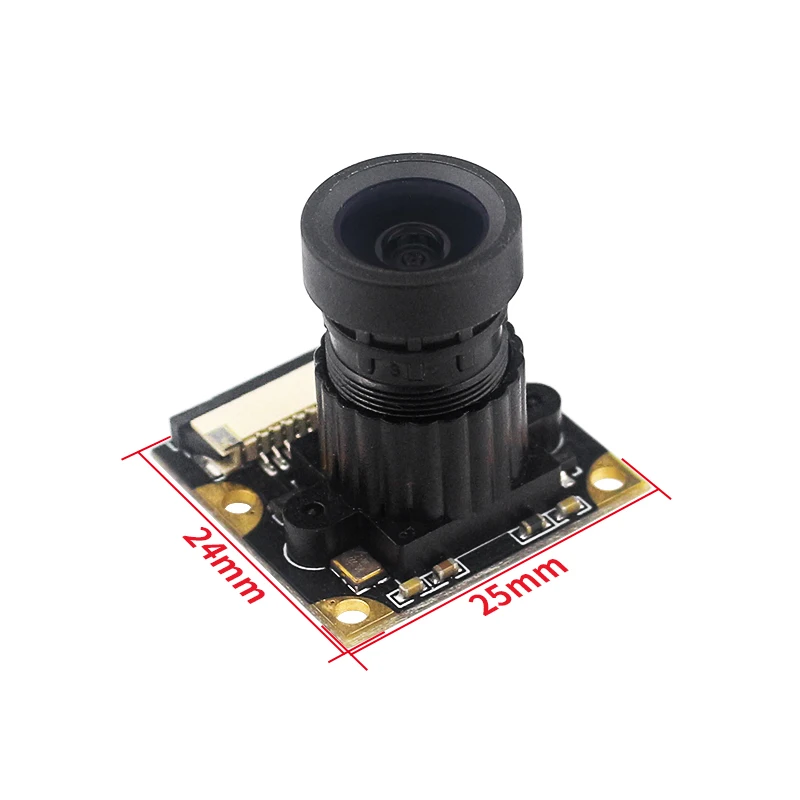

Raspberry Pi 4 Camera 5MP 1080P Night Vision Fisheye IR-CUT Camera Infrared Light OV5647 Webcam for Raspberry Pi 4B 3B+ 3B Zero

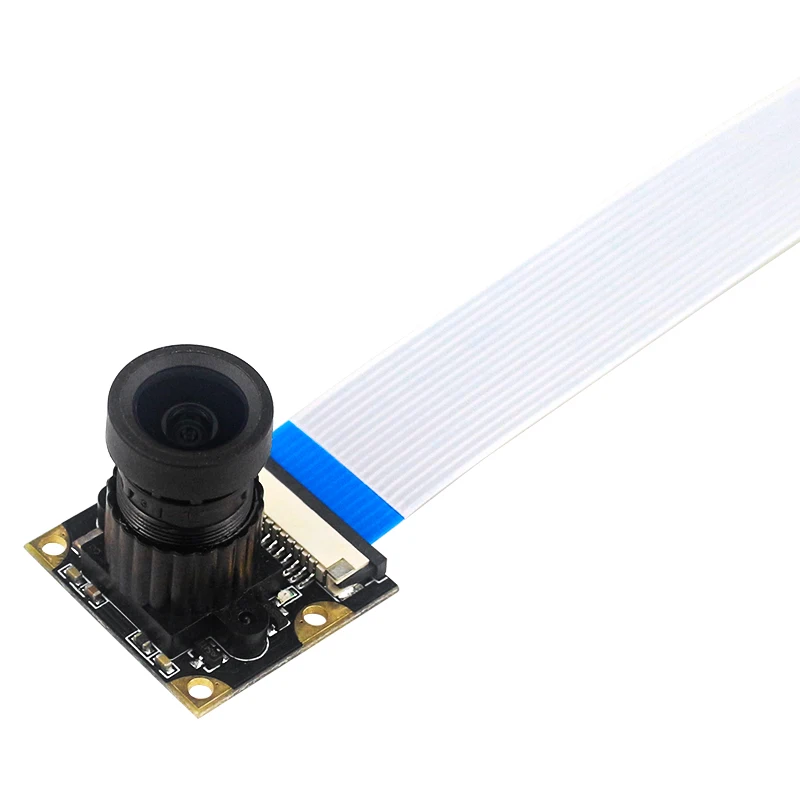

A1 A2 Camera (75°/Night Vision)

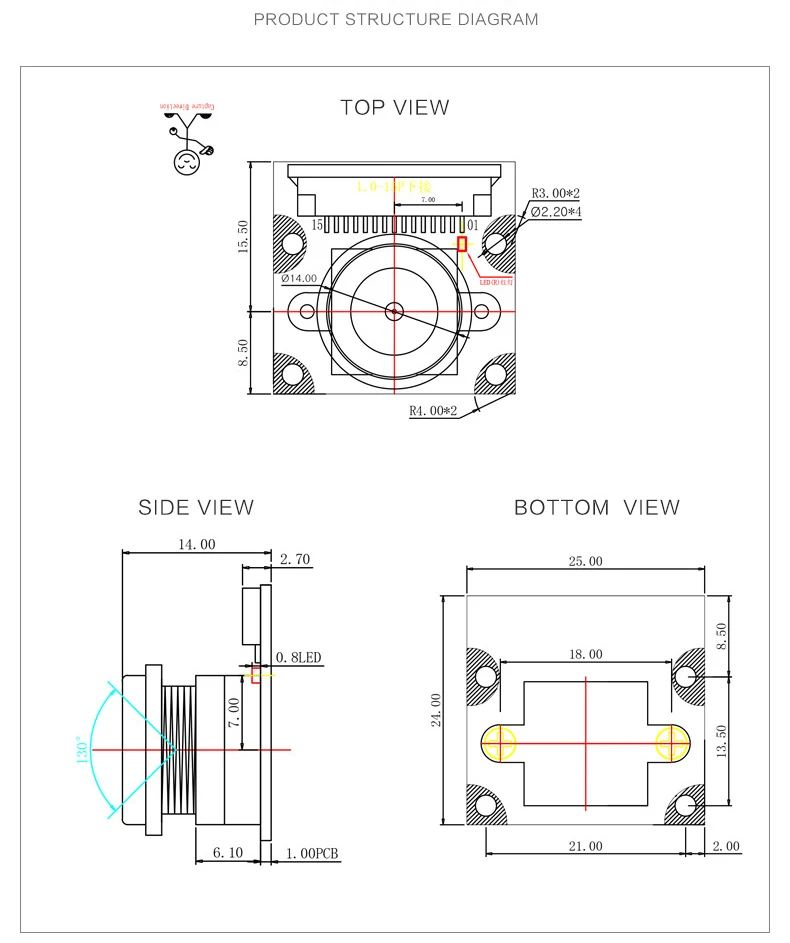

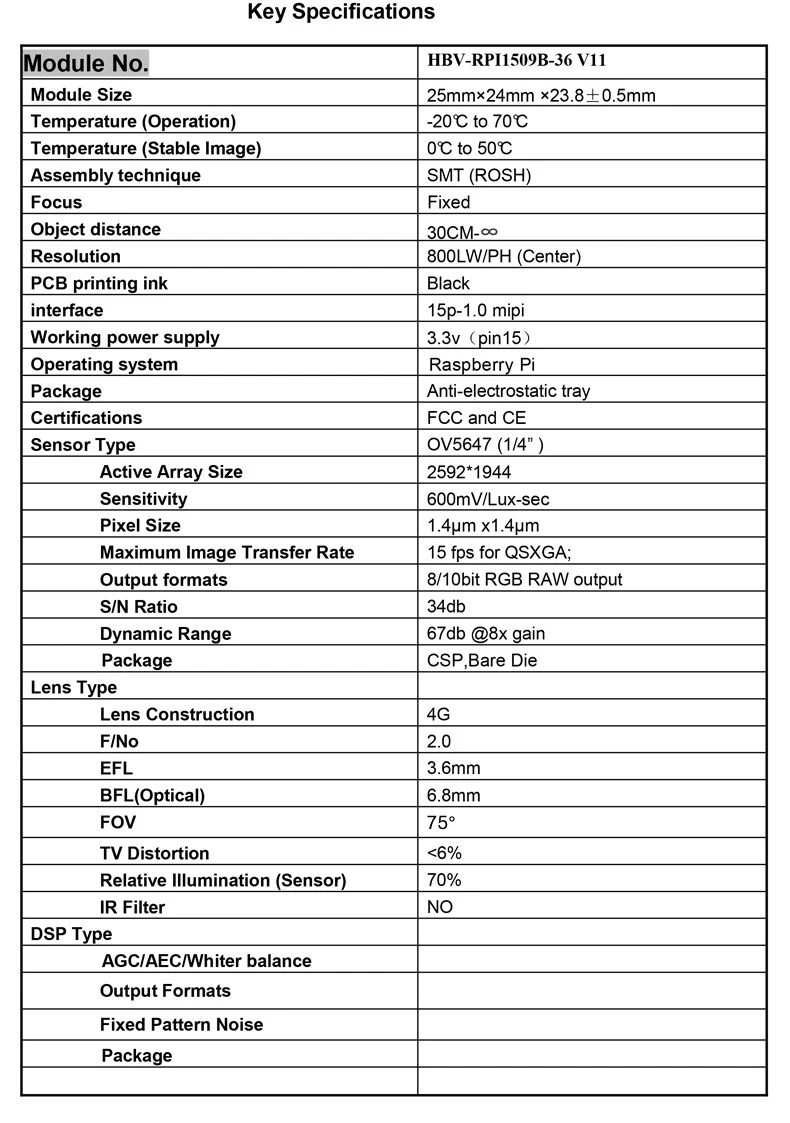

Specification :

1. Sensor : OV5647

2. Pixel : 5 megapixel

3. CMOS size: 1 / 4inch

4. Aperture (F): 1.8

5. Focal Length: 3.6mm adjustable

6. Diagonal angle: 75 degree

7. Sensor best resolution: 1080p

8. 4 screw holes : used for attachment and provides 3.3V power output

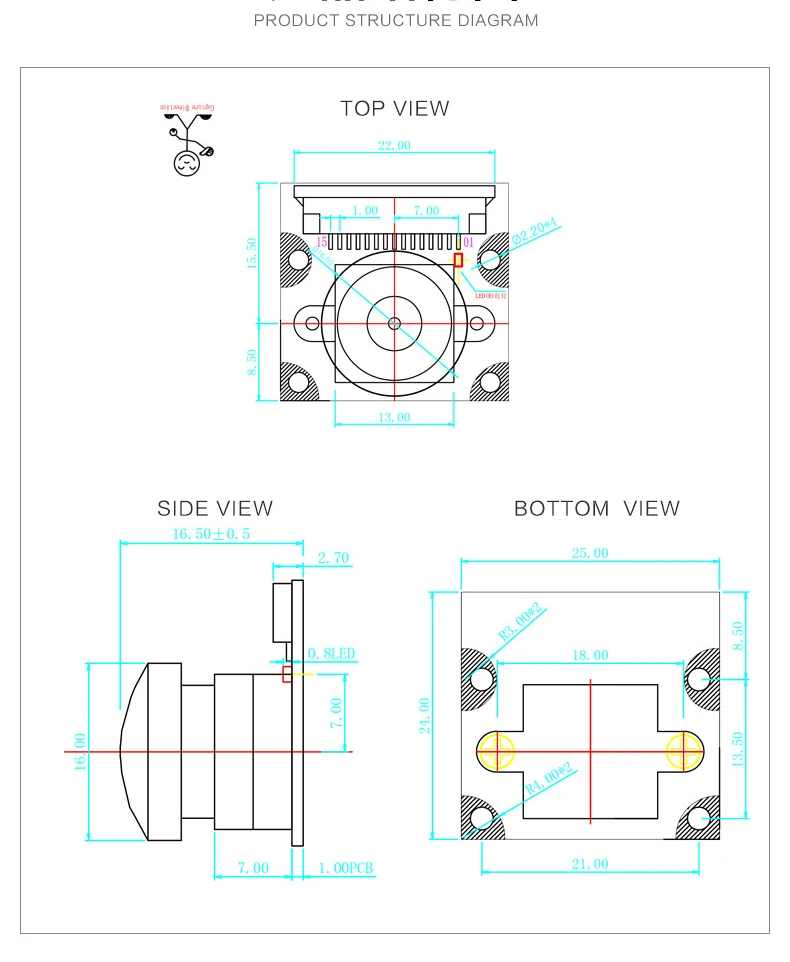

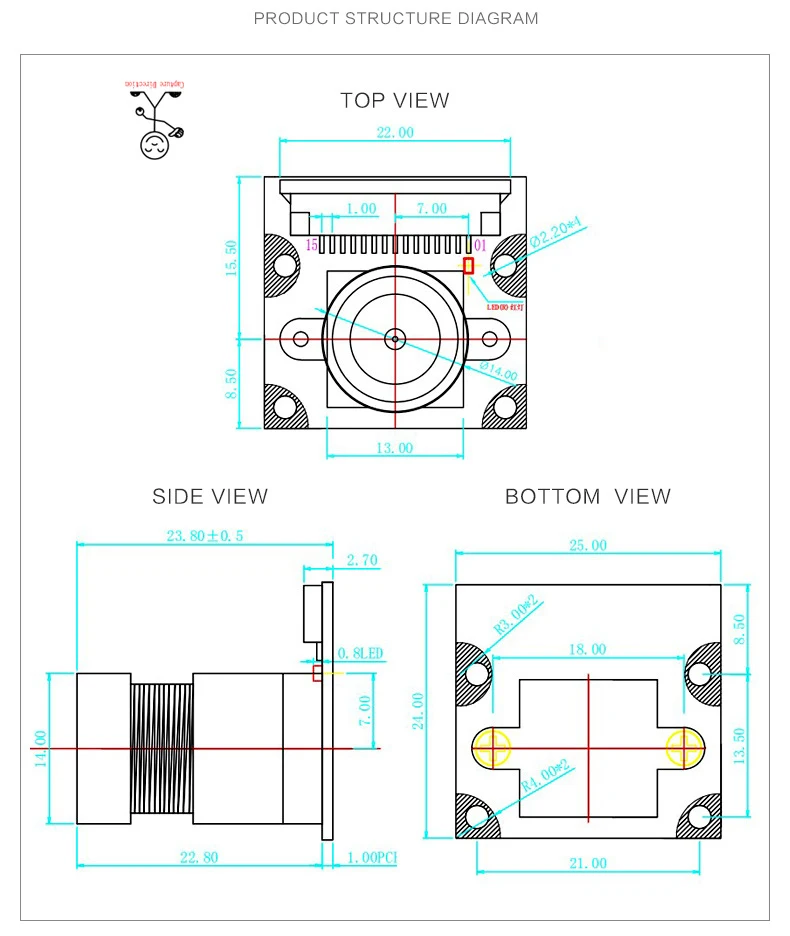

9. Dimension: 25mm x 24mm

10. Resolution: 2592x1944


Feature:


1. Night vison camera ( must use with the infrared led light together )

2. Adjustable focal

3. Supports all revisions of the Raspberry Pi

4. Support Raspberry Pi 4B/3B+/3B/Zero (need to use other flat cable for Pi Zero )


package list :
-A1 75
1 x 75 Degree Night Vision Camera

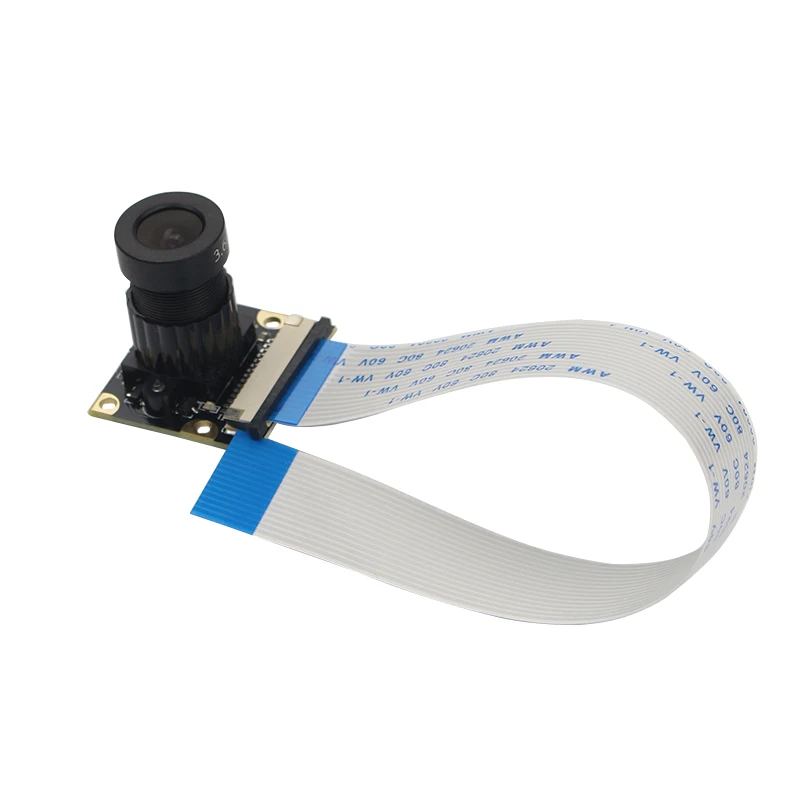

1 x 15cm FFC Cable

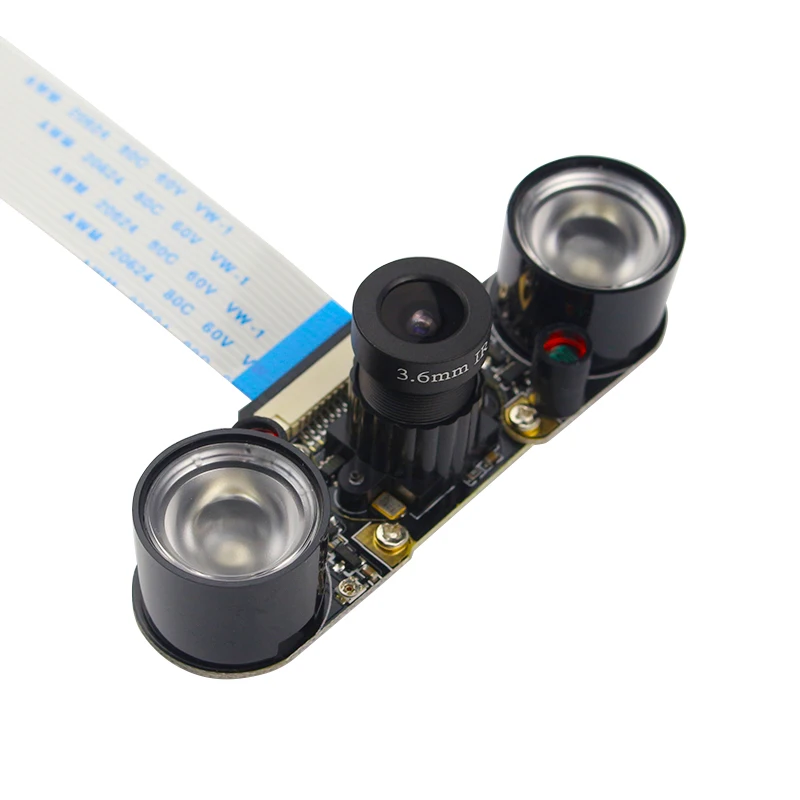

-A2 75
1 x 75 Degree Night Vision Camera
1 x 15cm FFC Cable

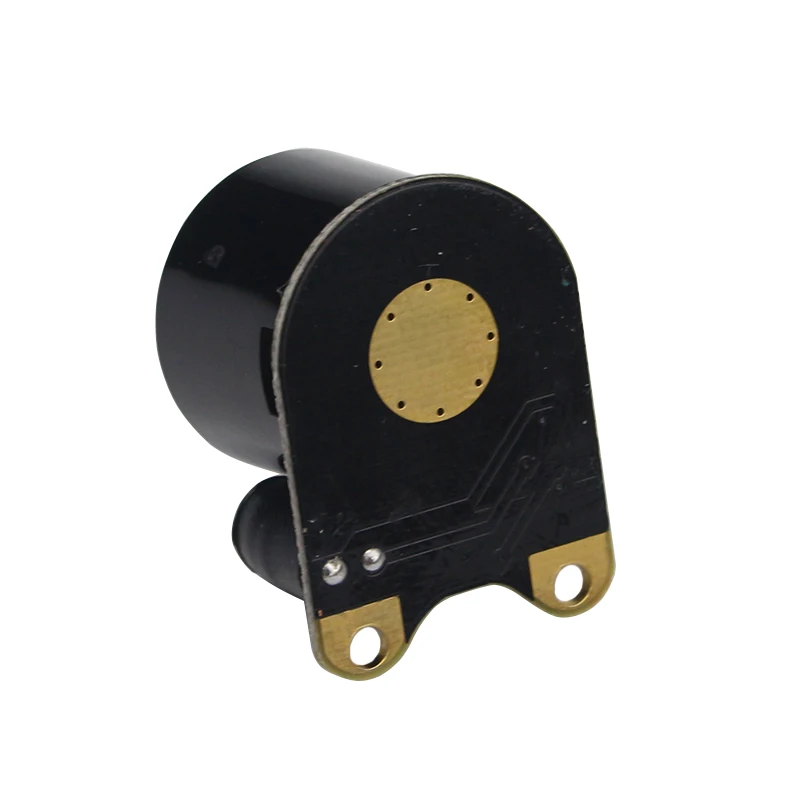

2 x Infrared Light

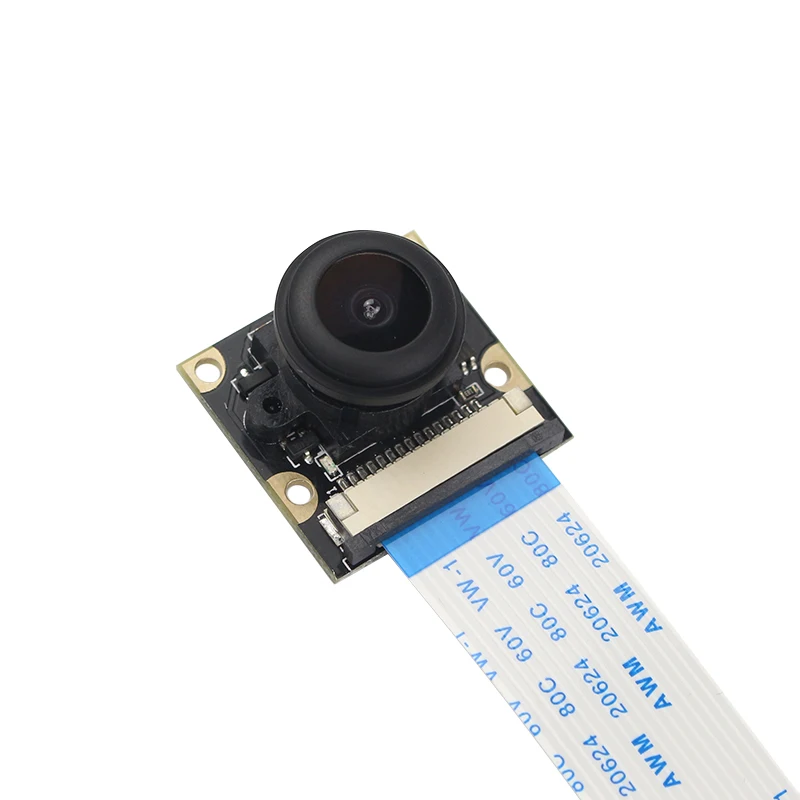

B1 B2 Camera (130°/Night Vision)

Features :

1. Fisheye lens, 130 degree wide angle view, can be used for monitoring , wecams , 3D printer or take a wide field of view photo , video

2. Night vision camera ( need to use with the infrared lights )

3. Compatible for all version of Raspberry Pi


Note : The field of view has difference with actual due to the resolution and measuring.


Specification :

1. 5 megapixel OV5647 sensor

2. CMOS size : 1/4inch

3. Sensor best resolution : 1080p

4. 4 screw holes : Use for attach infrared LED lights and connect the power

5. Focal length : 2.35

6. Focal: 1.85mm (adjustable)

7. Diagonal angle : 130 degree approx

8. Resolution: 2592x1944

7. Dimension: 25mm x 24mm x 17mm


package list :
-B1 130
1 x 130 Degree Night Vision Camera
1 x 15cm FFC Cable

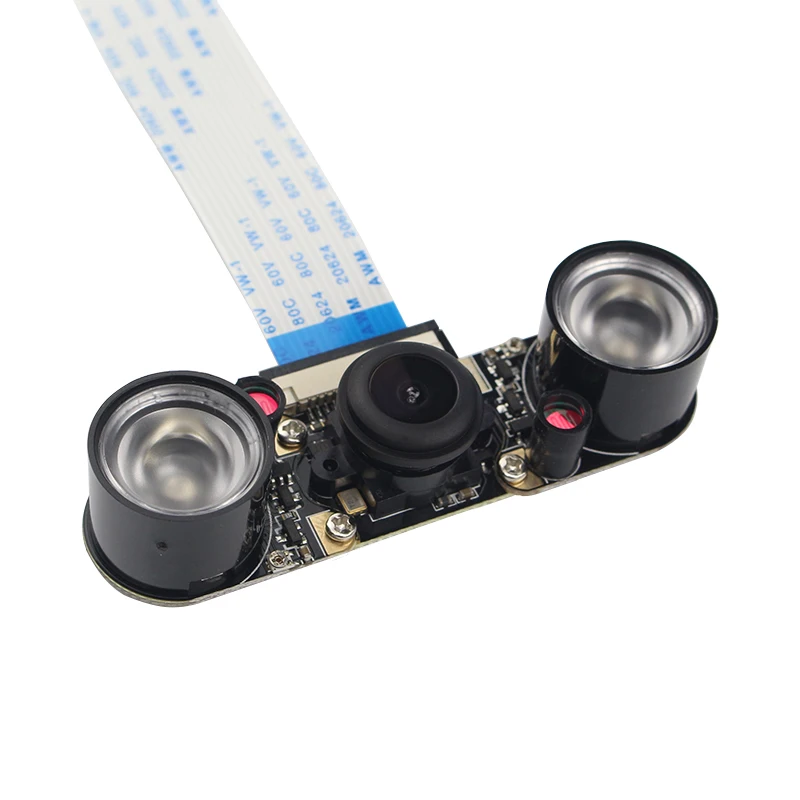

-B2 130
1 x 130 Degree Night Vision Camera
1 x 15cm FFC Cable
2 x Infrared Light

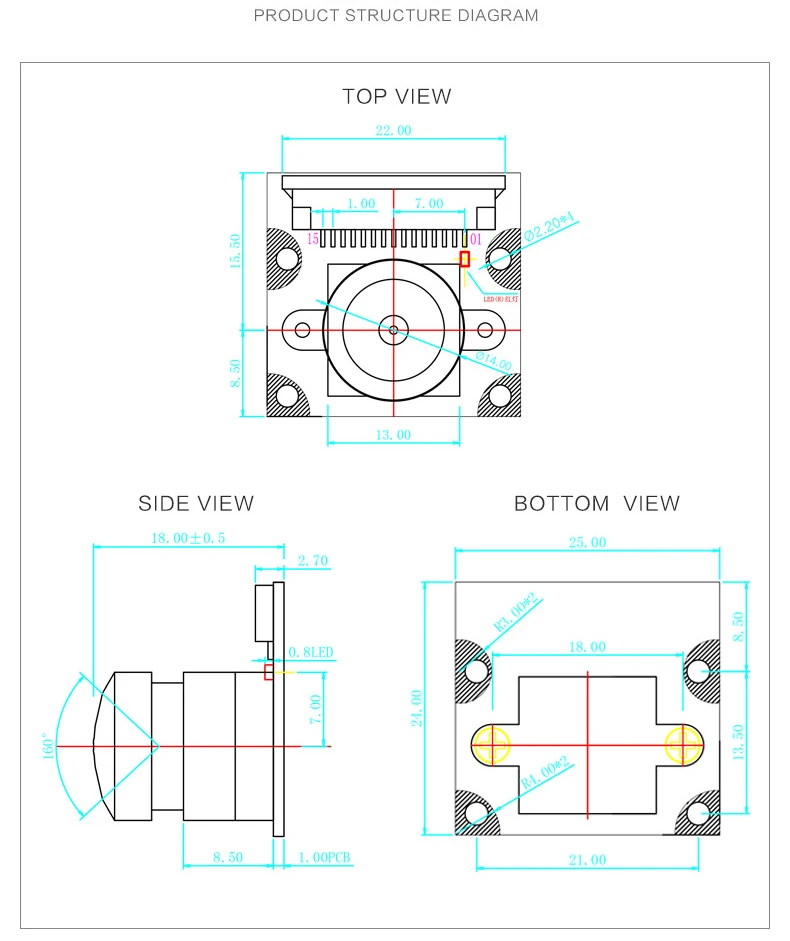

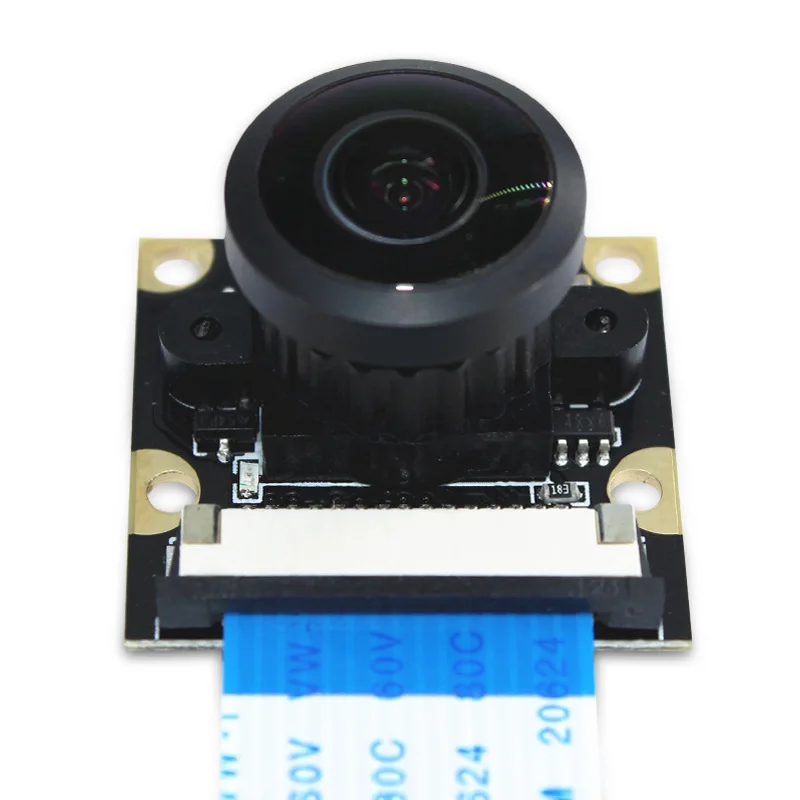

C1 C2 Camera (160°/Night Vision)

Raspberry Pi 5MP Night Vision Camera OV5647 160 Degree Fish Eye Lens Focal Adjustable Camera for Pi 4B 3B+ 3B


Specification

1. Pixels: 5 megapixels

2. Sensor: OV5647

3. Focal: 3.15mm adjustable

4. Field of view: 160 degree

5. Power: 3.3V

6. Size: 25mm x 24mm x 17mm

7. Resolution: 2592x1944



Features

1. 5 megapixel camera


package list :
-C1 160
1 x 160 Degree Night Vision Camera
1 x 15cm FFC Cable

-C2 160
1 x 160 Degree Night Vision Camera
1 x 15cm FFC Cable
2 x Infrared Light

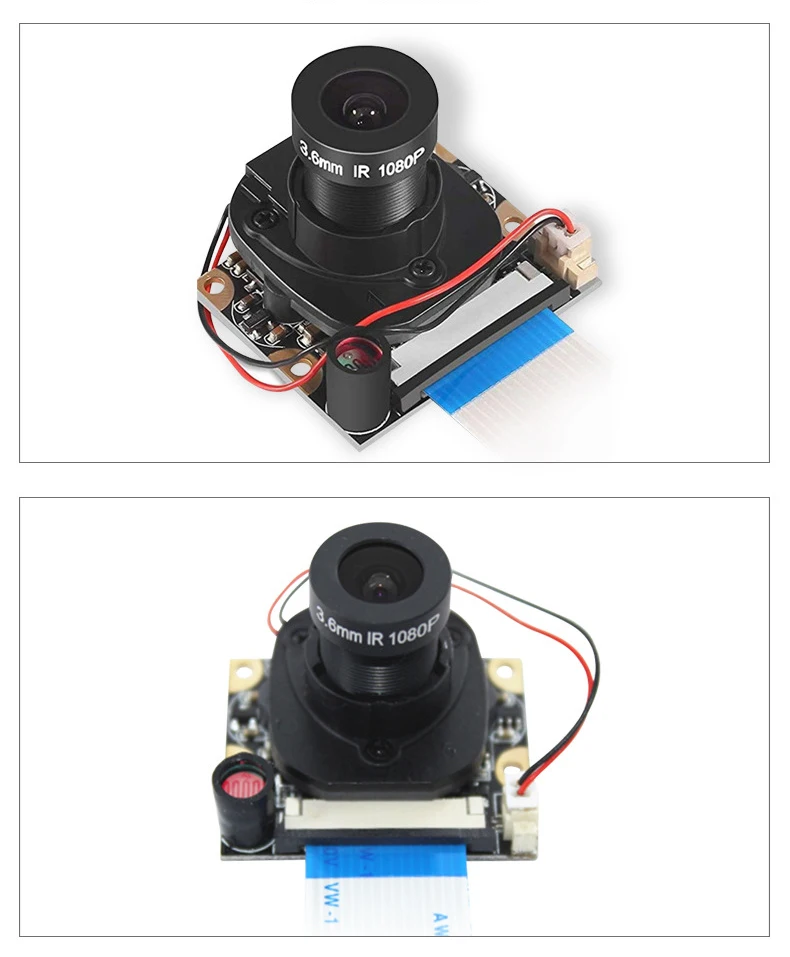

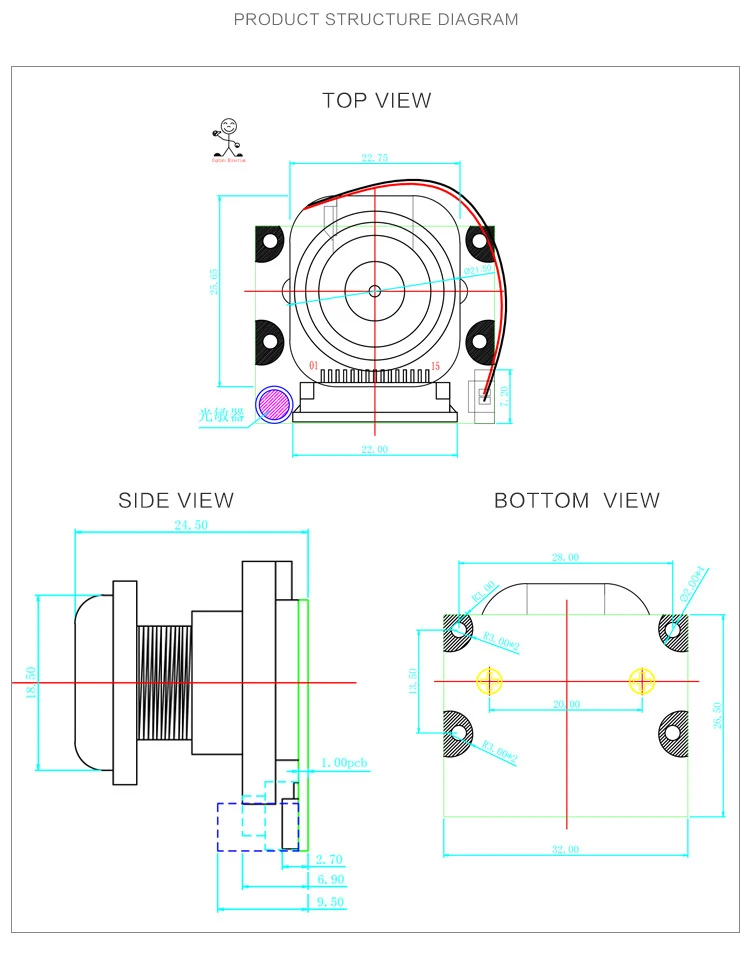

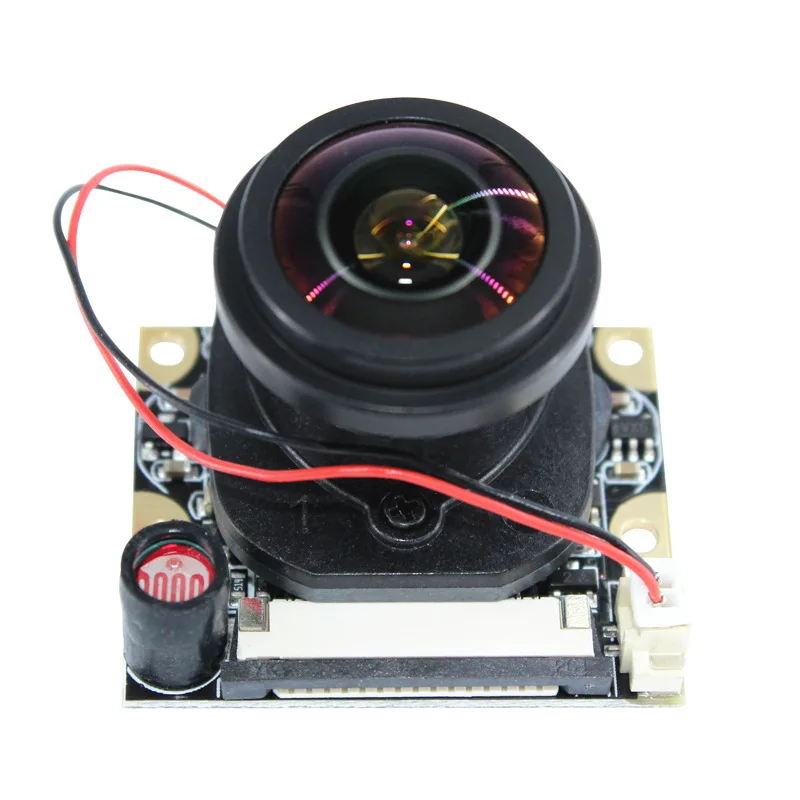

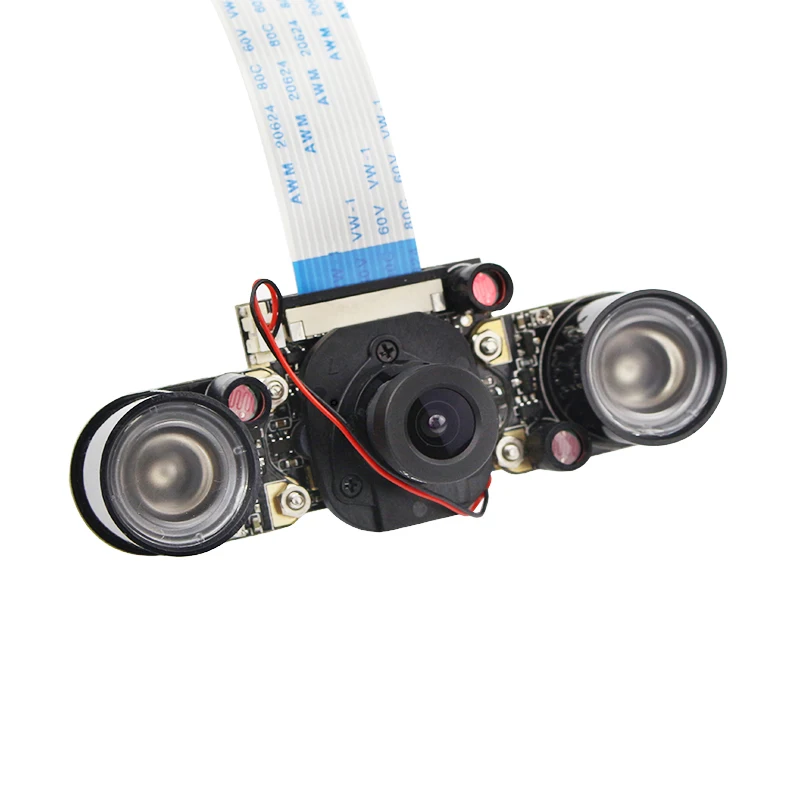

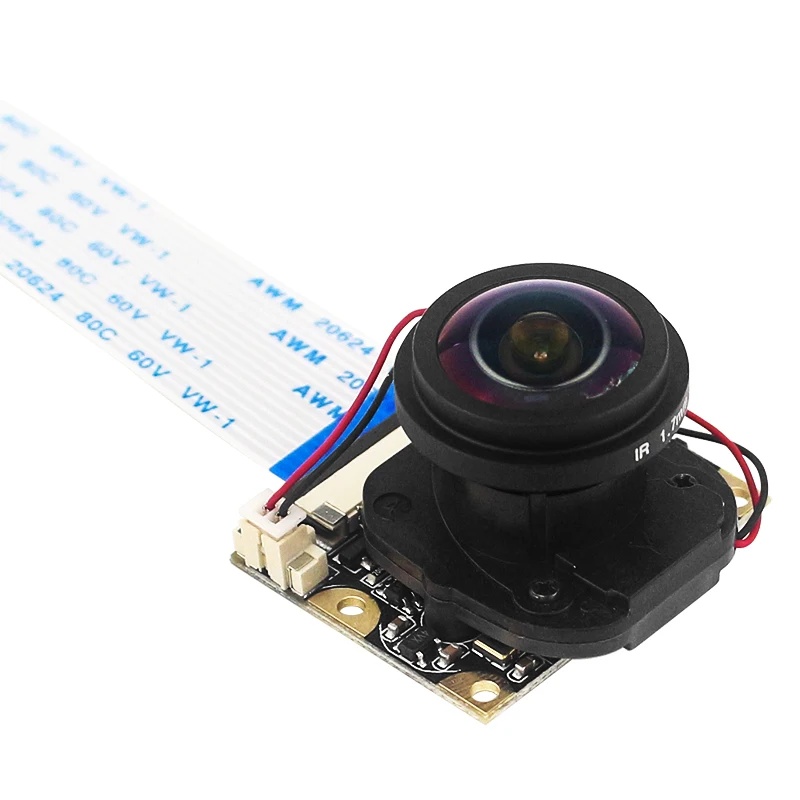

D1 D2 Camera (75°/Night Vision/IR-CUT)

Introduction:

The Raspberry Pi Camera is with IR-CUT function, so it can use in both day and night with normal color. When the camera at day light will switch to day mode, the camera image is a normal color image. When the camera at night will switch to night mode , the camera can normally identify the infrared fill light of the light. You can get the best imaging whatever it is in the daytime or at night.

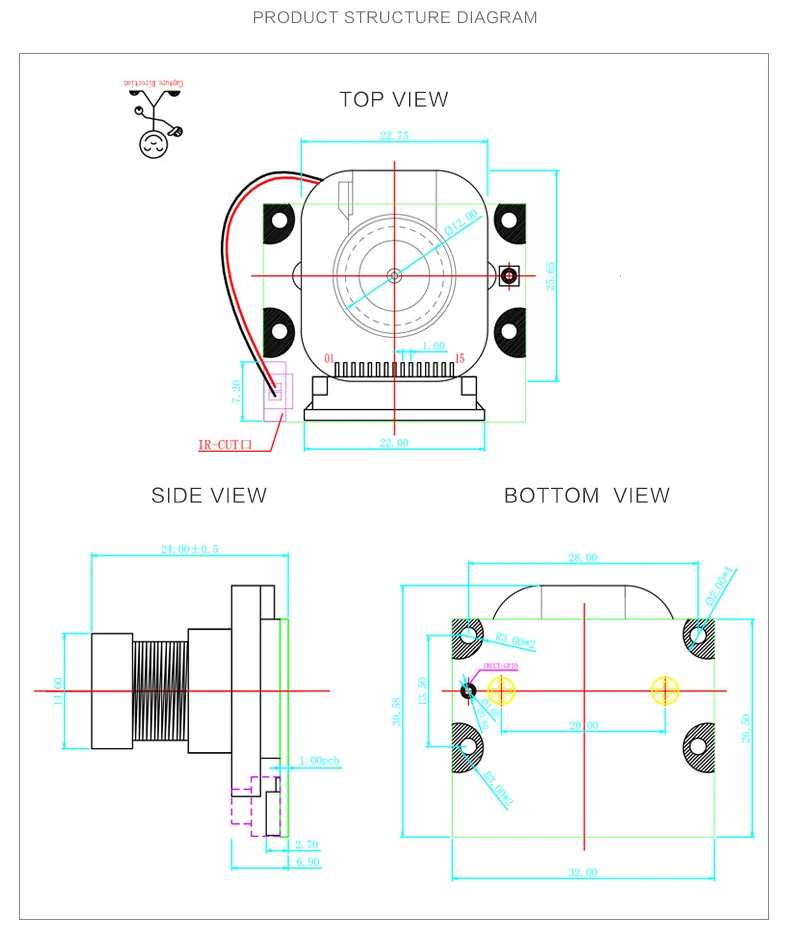

Specification:

1. 5 megapixel OV5647 sensor

2. CMOS size: 1/4 inch

3. Aperture (F): 1.2

4. Focal Length: 3.6mm adjustable

5. Field of View: 75 degree

6. Sensor best resolution: 1080p

7. 4 screw holes to fix the IR lights and holder:

(1). Used for attachment

(2). Provides 3.3V power output

8. Size: 26.5x32 mm

9. Resolution: 2592x1944



Features:

1. Supports all revisions of the Raspberry Pi

2. Embedded removable IR-CUT filter, eliminating color distortion in the daylight ( by automatic or manual )

3. Comes with infrared LED, supports night visio

4. Supports connecting infrared LED and / or fill flash LED

package list :
-D1 160 IRCUT
1 x 160 Degree Night Vision Camera
1 x 15cm FFC Cable

-D2 160 IRCUT
1 x 160 Degree Night Vision Camera
1 x 15cm FFC Cable
2 x Infrared Light

E1 E2 Camera (175°/Night Vision/IR-CUT)

Specification :

1. 5 megapixel OV5647 sensor

2. CCD size: 1 / 4inch

3. Aperture (F): 2.35

4. Focal Length: 1.2mm adjustable

5. Field of View: 175 degree (diagonal)

6. Sensor best resolution: 1080p

7. 4 screw holes to :
(1). F ix the IR lights
(2). Provide 3.3V power output
8. Size: 80mm x 26.5mm x 24mm
9. Resolution: 2592x1944


Feature:


1. 175 degree ( physical) wide angle , allow to used for surveillance camera.

2. Embedded removable IR-CUT filter, eliminating color distortion in the daylight automatically

3. Comes with infrared LED lamp , supports night vision

4. Supports connecting infrared LED and / or fill flash LED

5. Supports all revisions of the Raspberry Pi ( include Raspberry Pi 4 Model B )


package list :
-E1 175 IRCUT
1 x 175 Degree Night Vision Camera
1 x 15cm FFC Cable

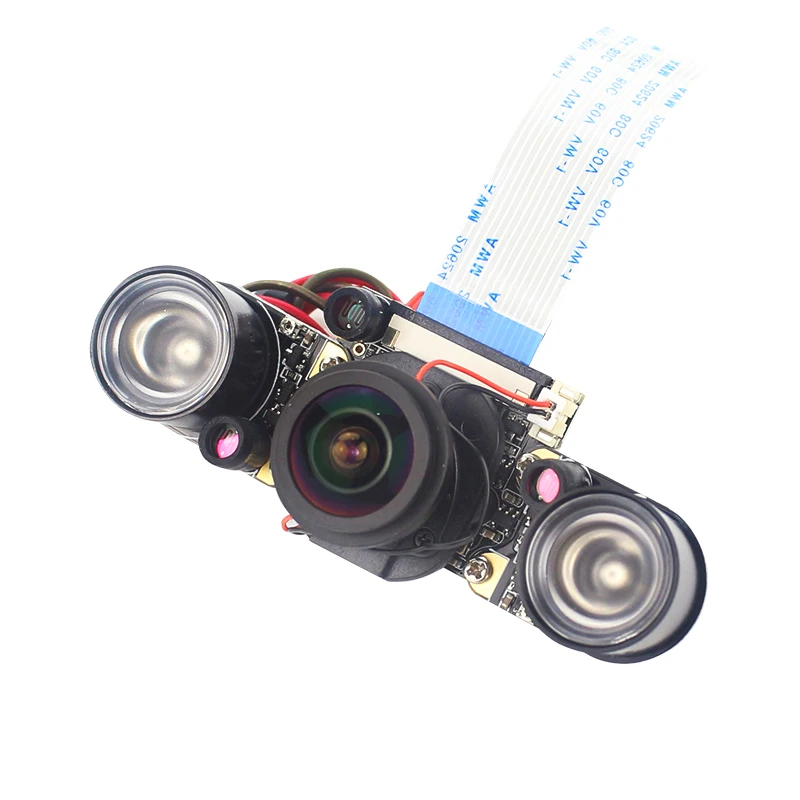

-E2 175 IRCUT
1 x 175 Degree Night Vision Camera
1 x 15cm FFC Cable
2 x Infrared Light

F Camera (77°/ Non Night Vision)

Specification:
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. CMOS size: 1 / 4inch
4. Aperture (F): 1.8
5. Focal Length: 3.6mm adjustable
6. Diagonal angle: 75 degree
7. Sensor best resolution: 1080p
8. Power supply: Support 3.3V external power
supply
9. 4 screw holes : Used for fixing position, fix
LED light and provides 3.3V power output
10. Dimension: 25mm x 24mm x 23.8mm
11. Resolution: 2592x1944
12. Do not support night vision


package list :
-F 75 Non Night Vision
1 x 75 Degree Non Night Vision Camera
1 x 15cm FFC Cable

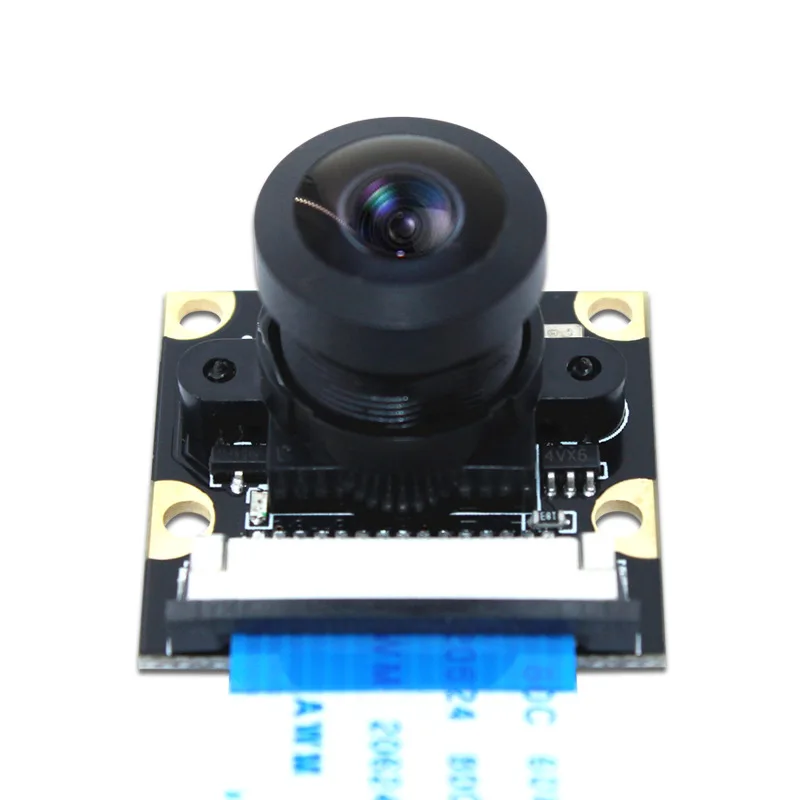

G Camera (130°/ Non Night Vision)

Specification:
1. Sensor : OV5647
2. Pixel : 5 megapixel
3. CMOS size: 1 / 4inch
4. Aperture (F): 2.35
5. Focal Length: 1.85mm adjustable
6. Diagonal angle: 130 degree
7. Sensor best resolution: 1080p
8. Power supply: Support 3.3V external power
supply
9. 4 screw holes : Used for fixing position, fix
LED light and provides 3.3V power output
10. Dimension: 25mm x 24mm x 17mm
11. Resolution: 2592x1944
12. Do not support night vision


package list :
-G 130 Non Night Vision
1 x 130 Degree Non Night Vision Camera
1 x 15cm FFC Cable

H Camera (220°/ Non Night Vision)

220 Degree Raspberry Pi 4 Camera 5MP Wide Fish Eye 1080P Camera Focal Adjustable Cameras for Raspberry Pi 4 Model B/3B+/3B


Introduction :

This is the 220 degree wide field of view angle camera for Raspberry Pi . It can use for all version of Raspberry Pi.
It can be used for webcams, surveillance, 3D printing, taking wide-angle photos and so on

Please note that the actual value of field of view angle has a little difference because of resolution of LCD and measuring.

Specification:



1. 5 megapixel OV5647 sensor

2. CCD size : 1/4inch

3. Sensor best resolution : 1080p

4. Aperture (F): 2.35

5. Focal length : 0.76mm adjustable

6. Diagonal angle : 130 &160 degree approx

7. Dimension: 25mm x 24mm x 16mm

8. Power: 3.3V

9. Resolution: 2592x1944

package list :
-H 220 Non Night Vision
1 x 220 Degree Non Night Vision Camera
1 x 15cm FFC Cable

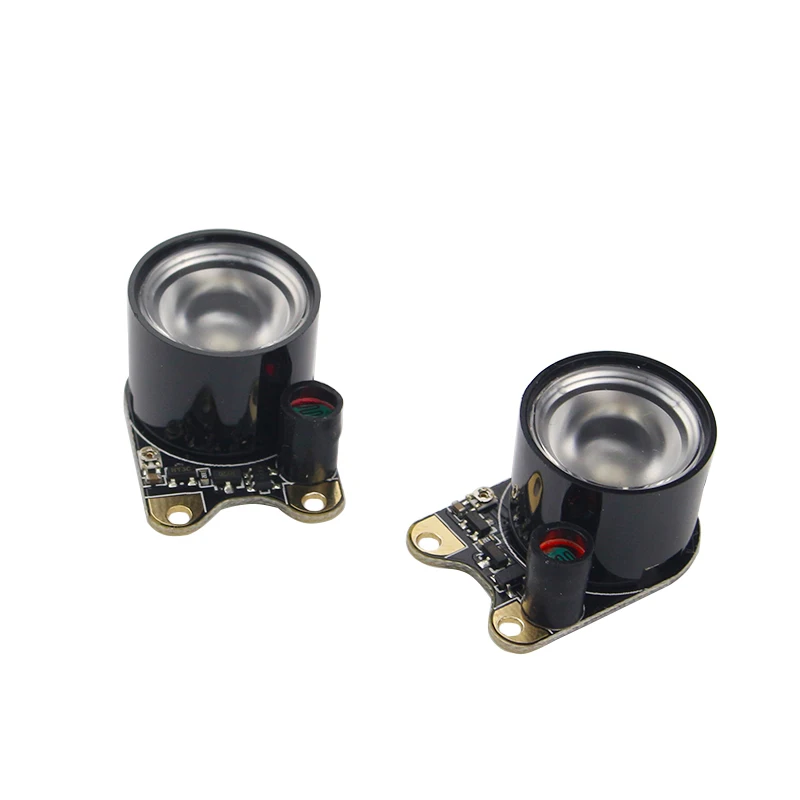

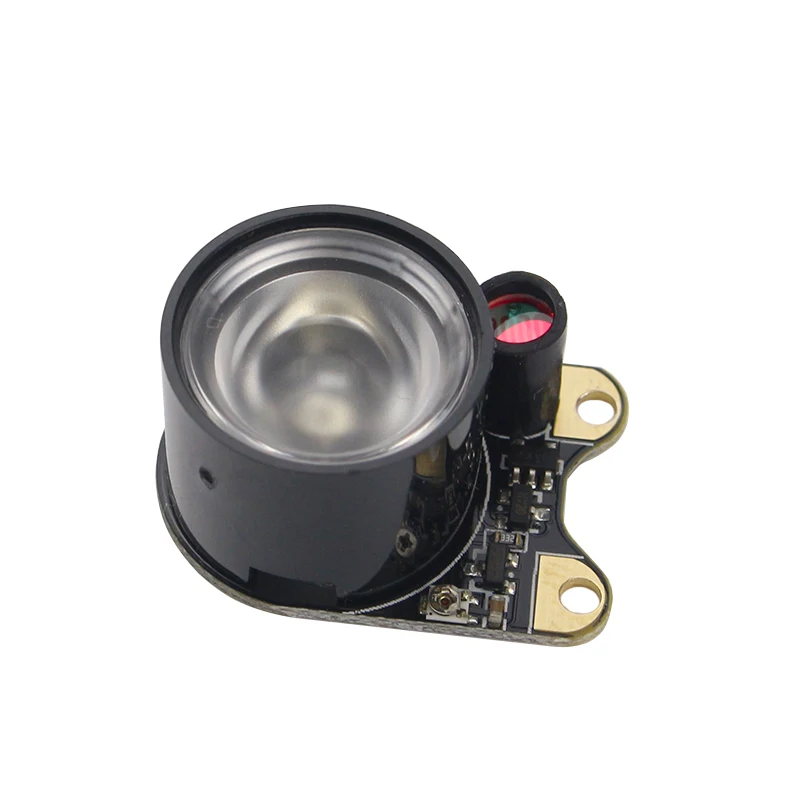

2pcs IR Lights

package list :

2 x Infrared Nigeht Vision Light
