1.3 Inch SPI LCD display HAT for Raspberry Pi 240x240 Pixels SPI Interface with Embedded Controller IPS Screen
As an Amazon Associate we earn from qualifying purchases.
Product Overview
Overview

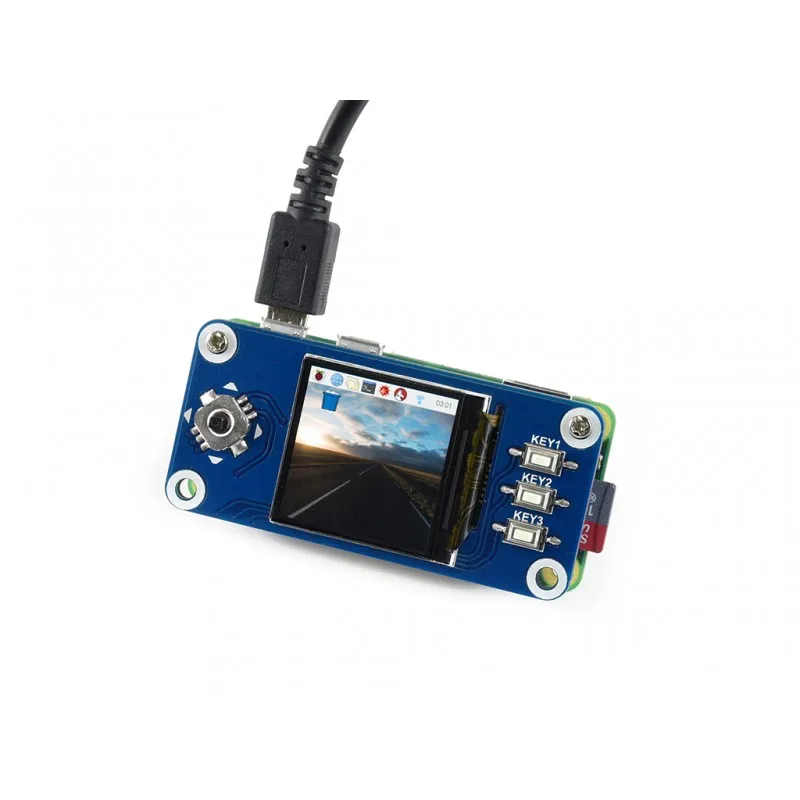

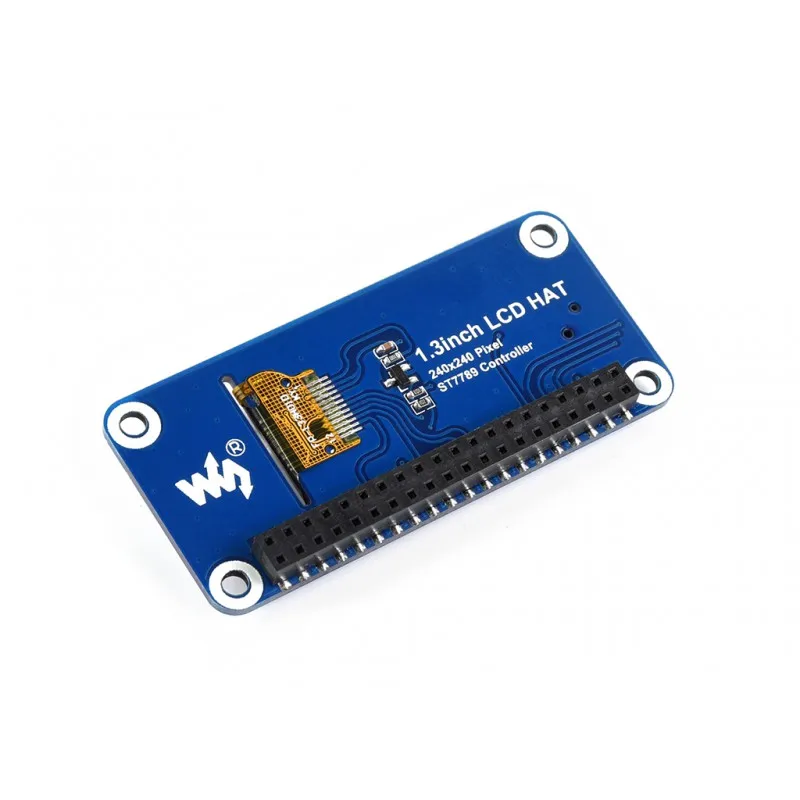

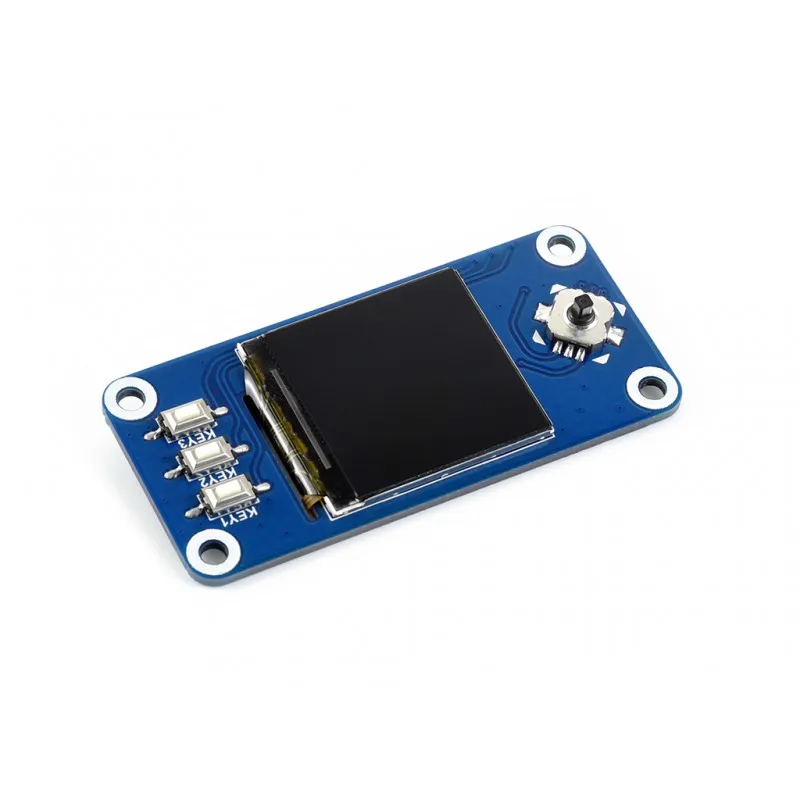

This is an IPS LCD display HAT for Raspberry Pi, 1.3inch diagonal, 240x240 pixels, with embedded controller, communicating via SPI interface.
Trying to add a control interface for your Pi? This compact display would be the ideal choice.
Features

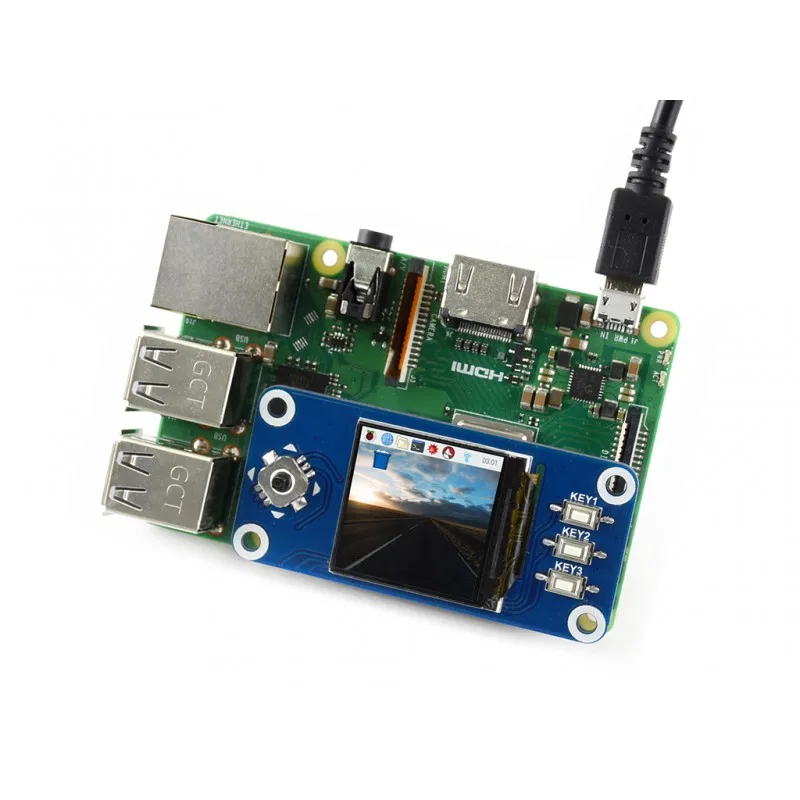

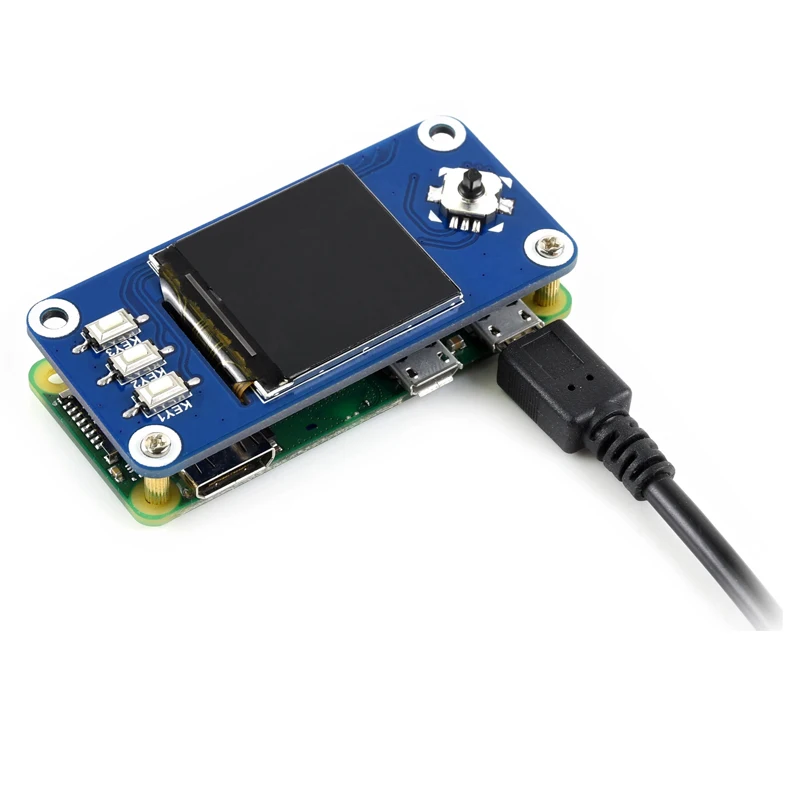

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
IPS screen, wide viewing angle, better display
High definition in small size
1x joystick, 3x pushbuttons, handy and useful
Comes with development resources and manual (examples for Raspberry Pi)
Specifications
Driver: ST7789
Interface: SPI
Display color: RGB, 65K color
Resolution: 240x240
Backlight: LED
Operating voltage: 3.3V
Interface
SYMBOL | Raspberry Pi PIN (BCM) | DESCRIPTION |
KEY1 | P21 | Button 1/GPIO |
KEY2 | P20 | Button 2/GPIO |
KEY3 | P16 | Button 3/GPIO |
Joystick Up | P6 | Joystick Up |
Joystick Down | P19 | Joystick Down |
Joystick Left | P5 | Joystick Left |
Joystick Right | P26 | Joystick Right |
Joystick Press | P13 | Joystick Press |
SCLK | P11/SCLK | SPI clock input |
MOSI | P10/MOSI | SPI data input |
DC | P25 | Data/Command selection (high for data, low for command) |
CS | P8/CE0 | Chip selection, low active |
RST | P27 | Reset, low active |
BL | P24 | Backlight |
Dimensions
Photos
Development Resources
Wiki : www.waveshare.com/wiki/1.3inch_LCD_HAT
PACKAGE CONTENT
Weight: 0.014 kg
1.3inch LCD HAT x1
RPi screws pack (2pcs) x1
Main Specifications
Technical details and specifications
