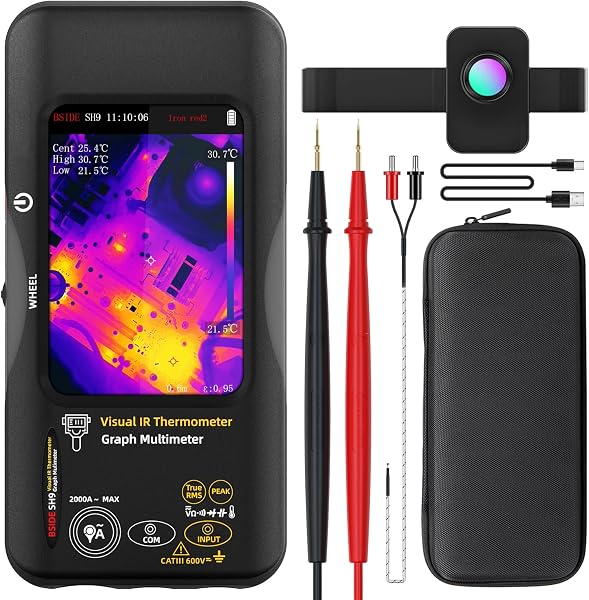

BSIDE SH9 Thermal Imaging Multimeter Dual Light Fusion Thermal Camera 428X320 IR Imaging ‌with Macro Lens & 20000 Counts Graphing Multimeter TRMS 3.98″ Touch Screen for PCB Electronics Industrial

Key features

DUAL-LIGHT FUSION THERMAL IMAGING: Integrated thermal camera combines visible light and infrared channels to generate synchronized images that retain both texture details and thermal distribution data. It can more easily detect thermal anomalies through coordinated multi-wavelength detection, even under extreme conditions (complete darkness, smoke, rain, and snow etc).

You can freely switch between single-spectrum or dual-fusion modes for adaptive analysis., 428×320 RESOLUTION: The thermal imager auto-tracks max/min/centre temperatures across -20°C to 550°C with ‌±2°C accuracy‌, ‌real-time alerts‌ and ‌15 colour palettes‌, instantly pinpointing overheated circuits, loose connections or water/air leaks, etc., WITH MAKRO LENS‌: The attachable 0.3X macro lens is designed to capture ultra-clear an detailed thermal images of millimetre-sized targets (e.g. solder joints, IC pins on boards, sensor) to reduce measurement errors and enhance PCB debugging precision., GRAPHING MULTIMETER 20000 COUNTS: True RMS, auto-ranging, measures up to ‌1000V DC, 750V AC‌, resistance, capacitance, continuity, diodes, temperature, AC/DC millivolts, and AC peak values.

All this functions can of electrical parameters; . Measurement datas can be graphically displayed, saved and held in any mode., TOUCH CONTROL & MULTILINGUAL UI: 3.98" TFT full viewing angle intuitive display and ‌7-language UI‌ (EN, ES, DE, FR, IT etc.) for effortless navigation and seamless operation..

Built with Size: ‎7.09 x 6.65 x 1.02 inches, Item Weight: ‎275 g, Product Dimensions: ‎16.9 x 8.1 x 2.6 cm; 274.7 g.
