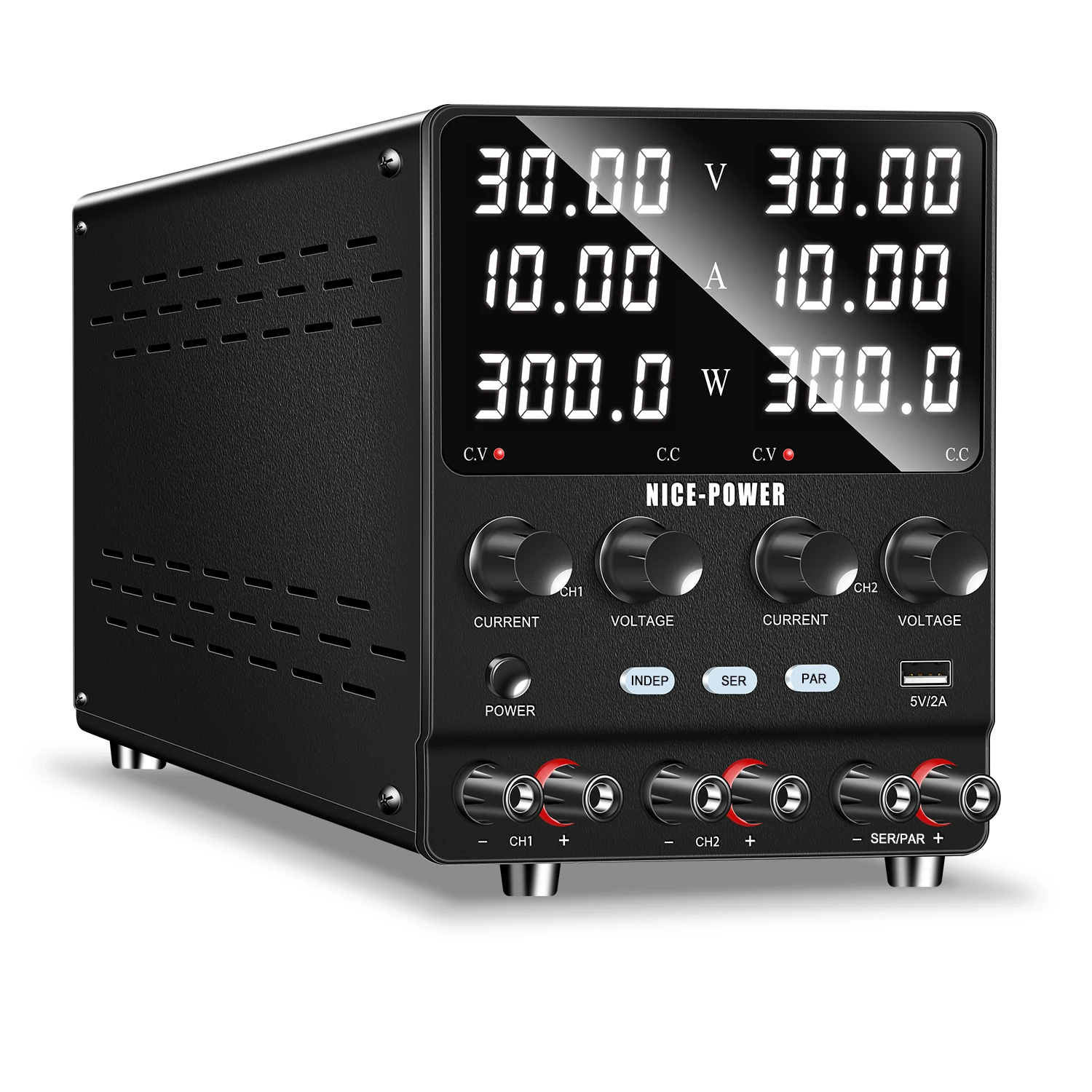

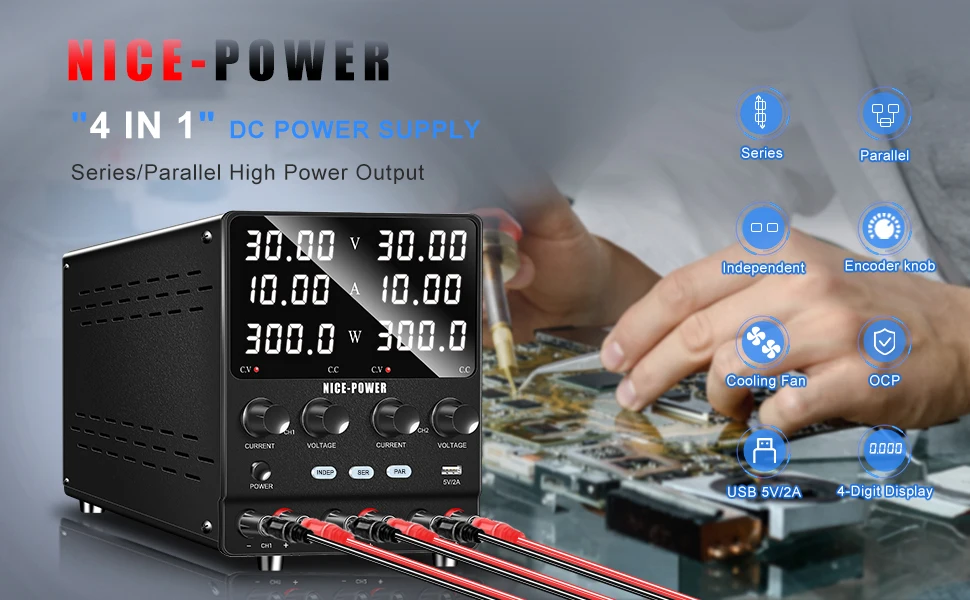

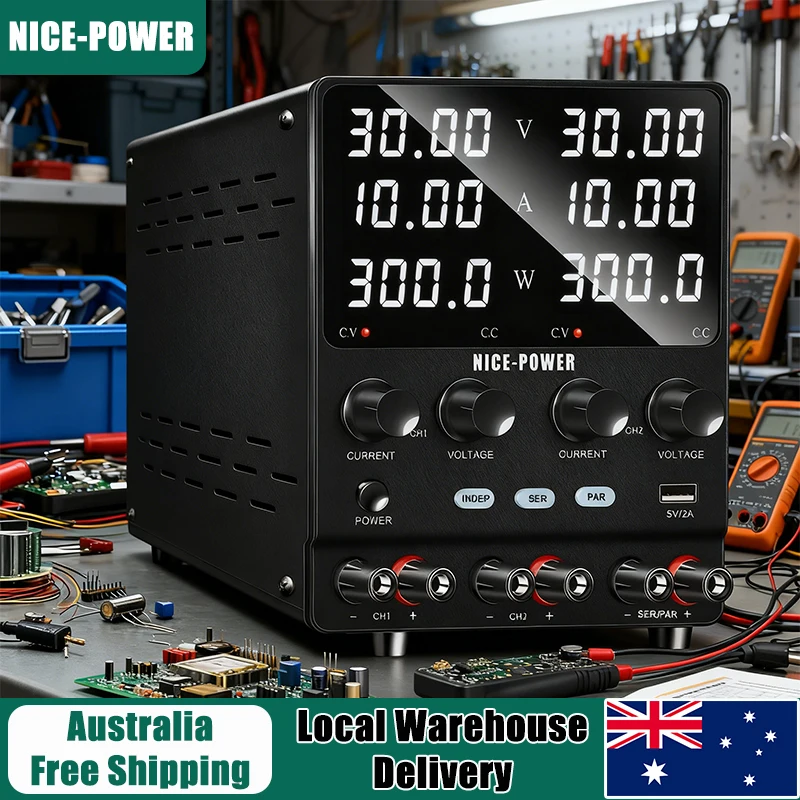

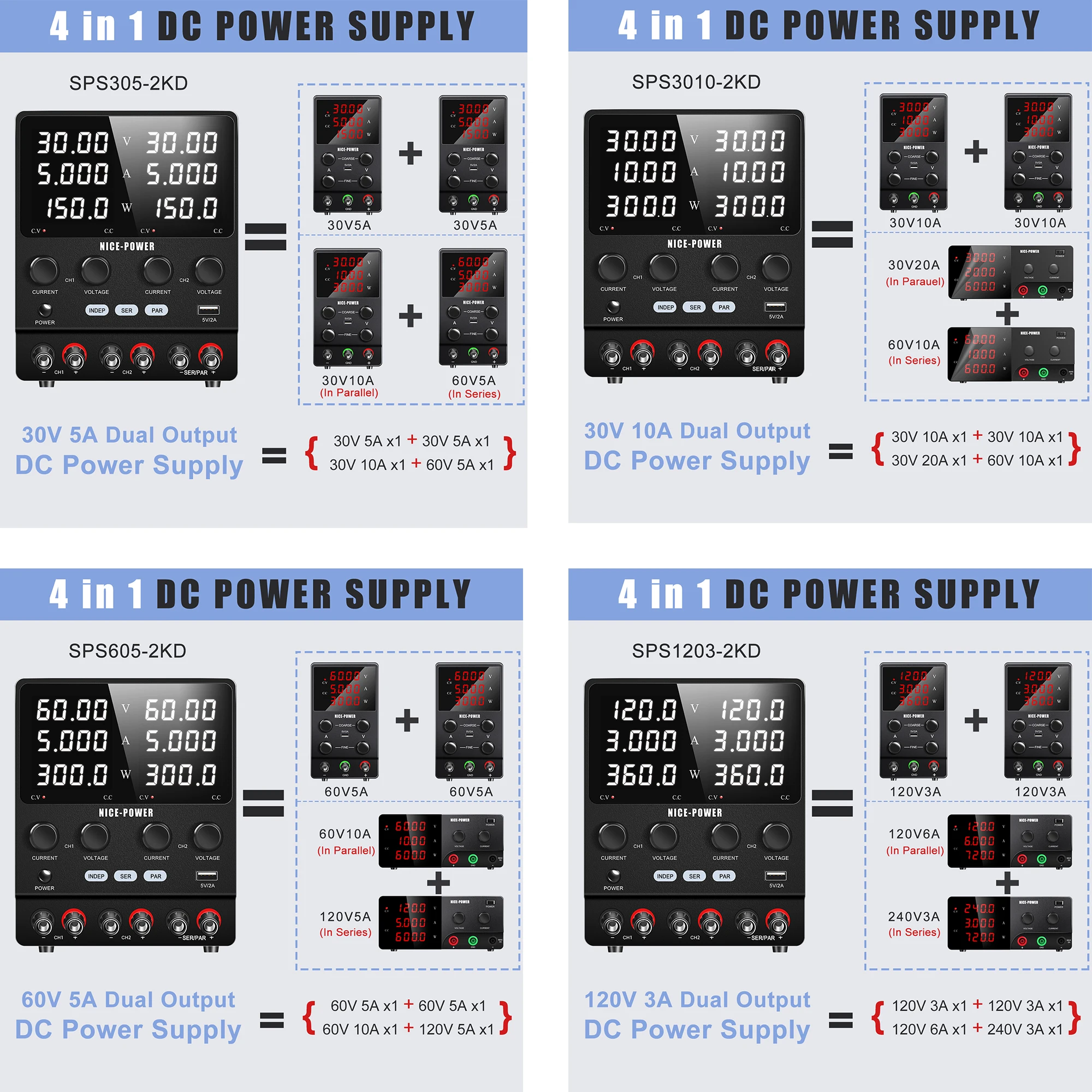

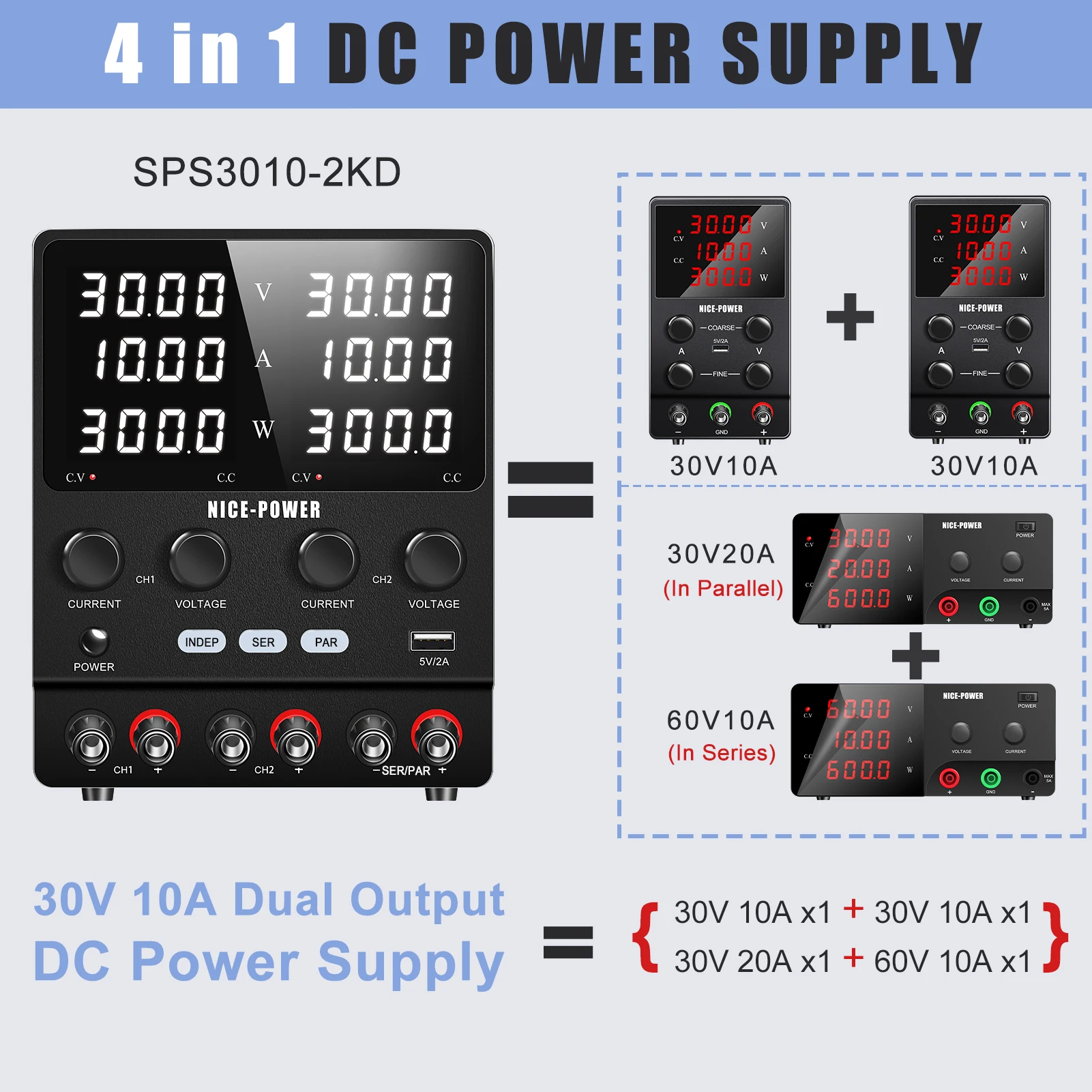

Dual-Channel 30V 10A 300W DC Power Supply 3-modes PAR SER INDEP Switching Power Supply Series Parallel Output Source Repai

Description:

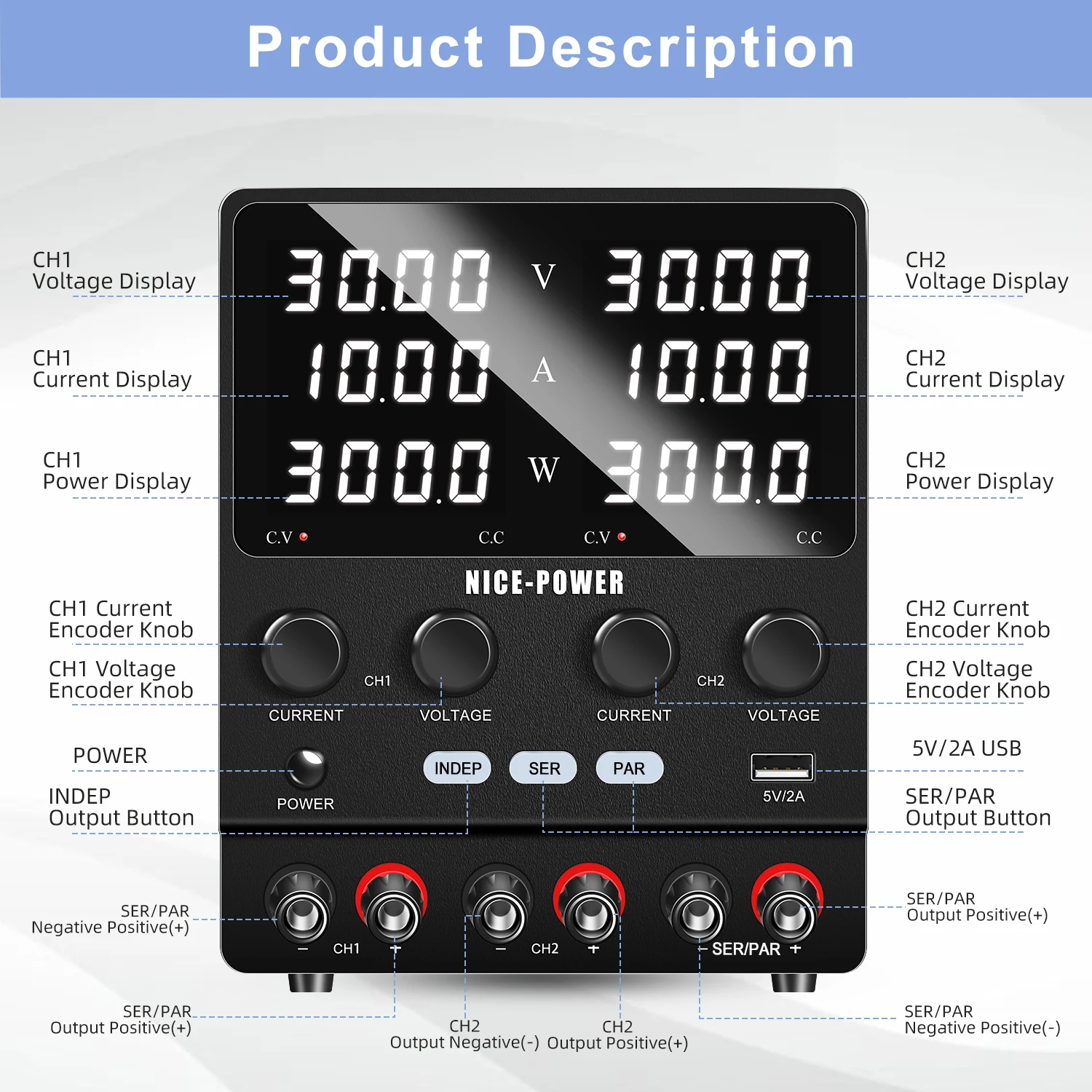

◈4-digit LCD display with power display.

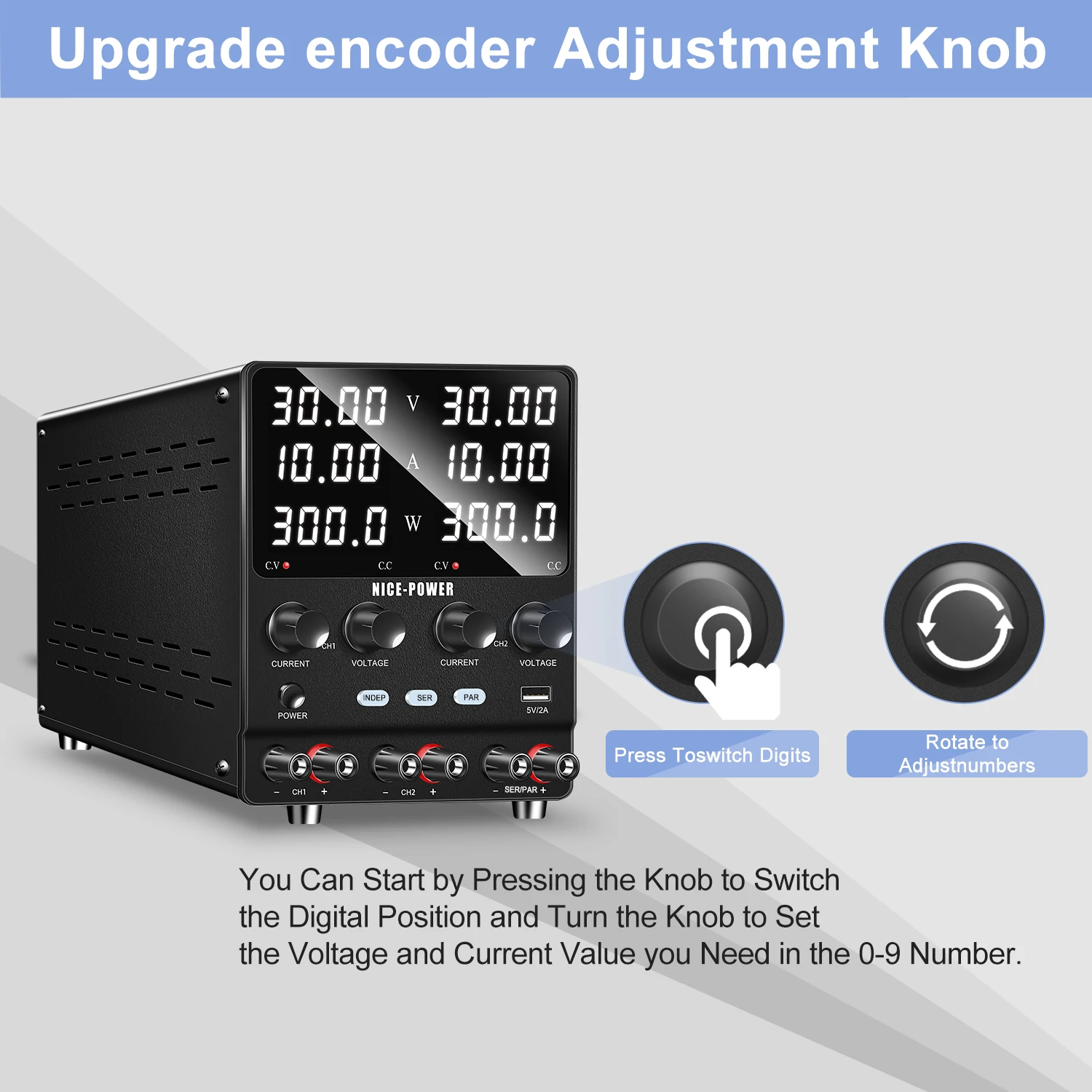

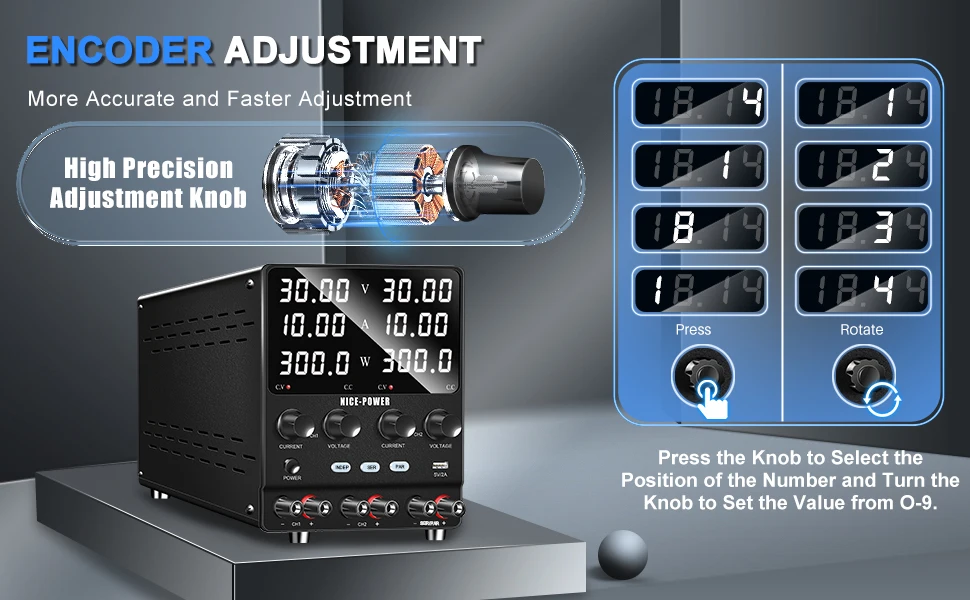

◈Dual encoder digital signal precision adjustment.

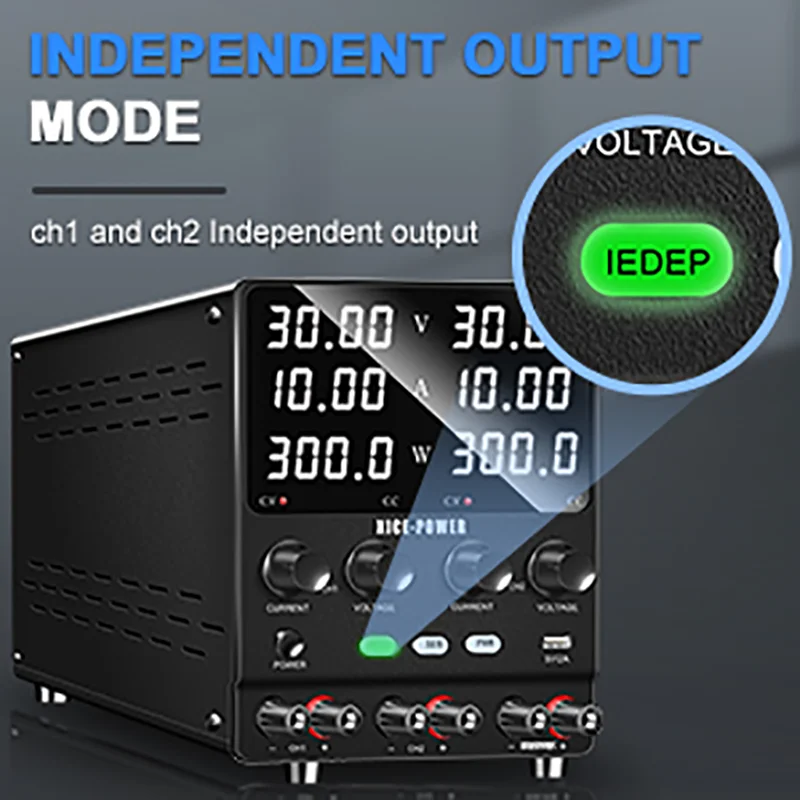

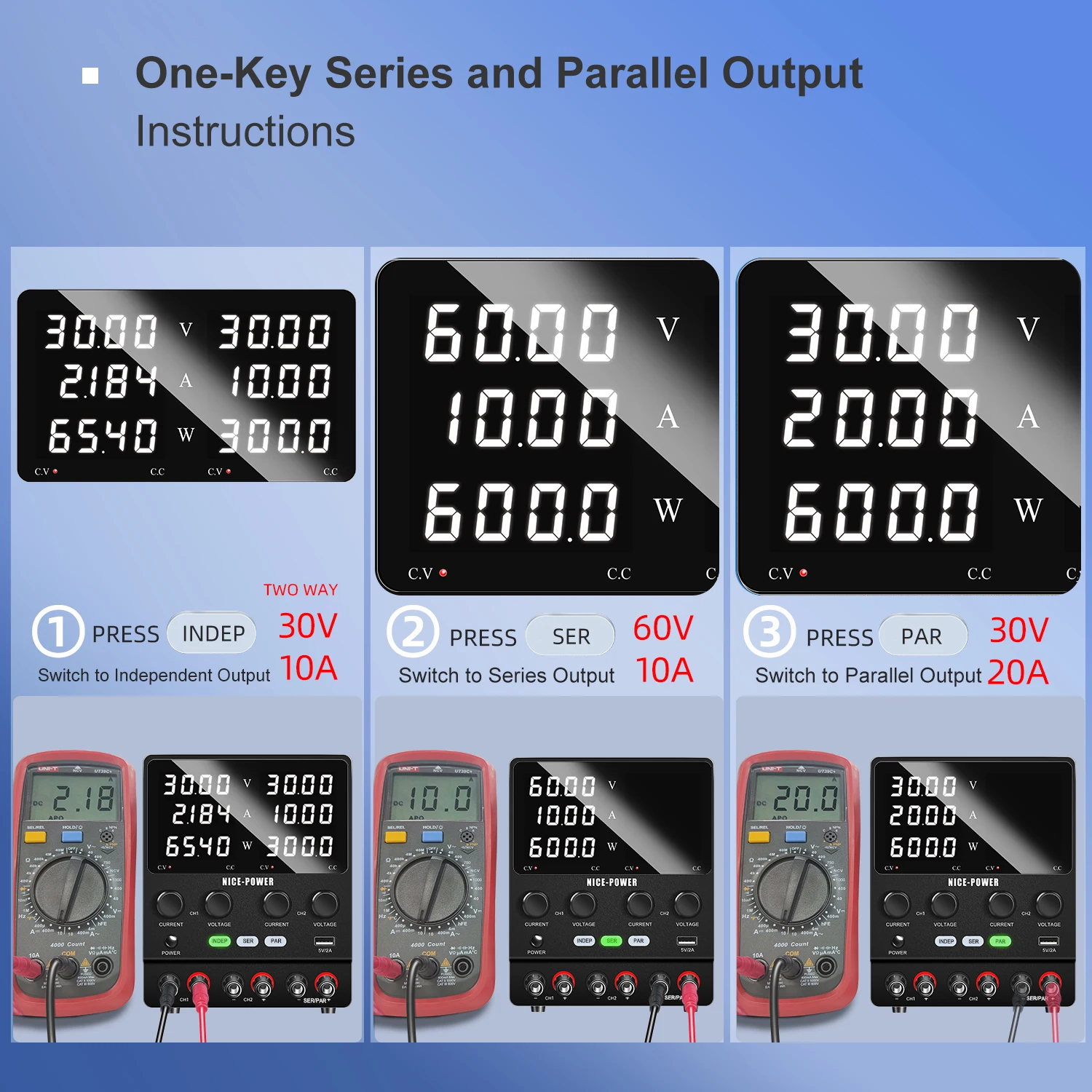

◈"INDEP" independent mode button. Both screens light up. On the left screen, the two encoders on the left adjust current and voltage, and "CH1" outputs current and voltage. On the right screen, the two encoders on the right adjust current and voltage, and "CH2" outputs current and voltage. This is equivalent to two independent conventional power supplies, with current and voltage not affecting each other. For example, a 30V 10A dual-channel power supply is equivalent to two ordinary 30V 10A power supplies.

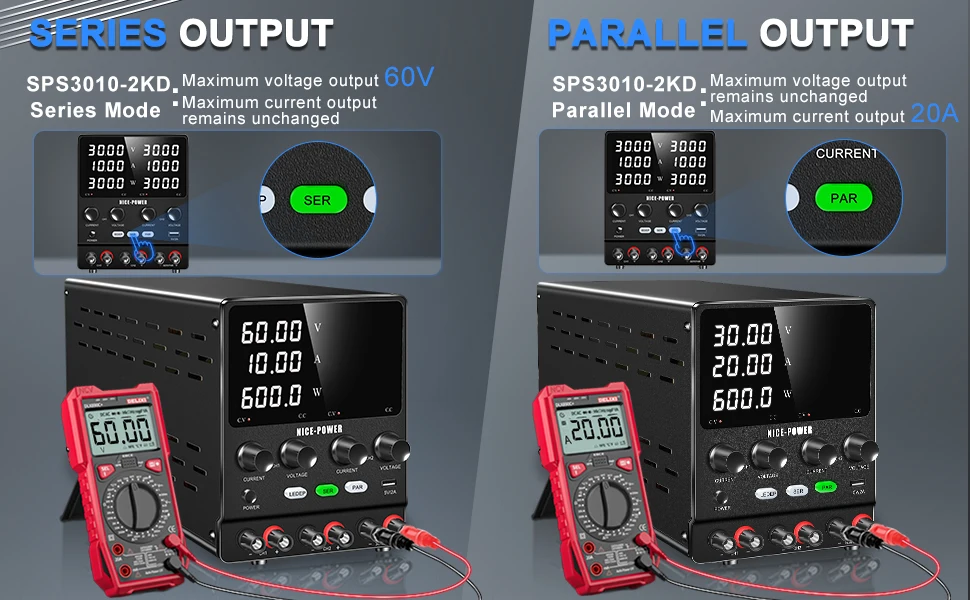

◈"SER" series mode button. The right screen turns off, while the left screen lights up. The two encoders on the left adjust current and voltage, and "SER/PAR" outputs current and voltage. This is equivalent to two ordinary power supplies connected in series: the current remains unchanged, but the voltages are added. For example, a 30V 10A dual-channel power supply is equivalent to a 60V 10A ordinary power supply.

◈"PAR" parallel mode button. The right screen turns off, while the left screen turns on. The two encoders on the left adjust the current and voltage, and the "SER/PAR" buttons output current and voltage. This is equivalent to connecting two standard power supplies in parallel: the currents are added, but the voltage remains unchanged. For example, a 30V 10A dual-circuit power supply is equivalent to a 30V 20A standard power supply.

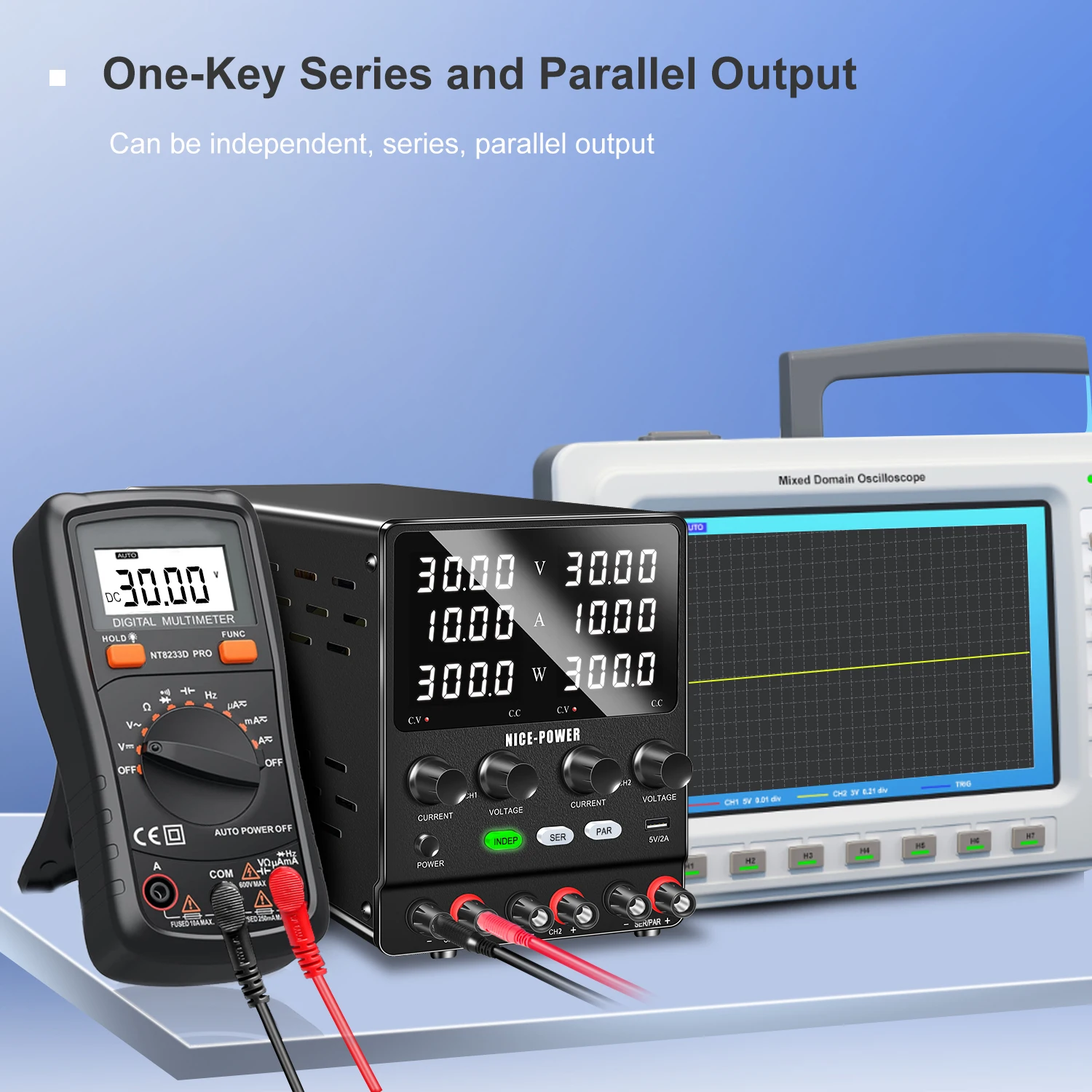

◈One-touch serial and parallel output: When you press "SER" or "PAR," the output is sent through the "SER/PAR" output ports, eliminating the need for separate wires for series or parallel connection.

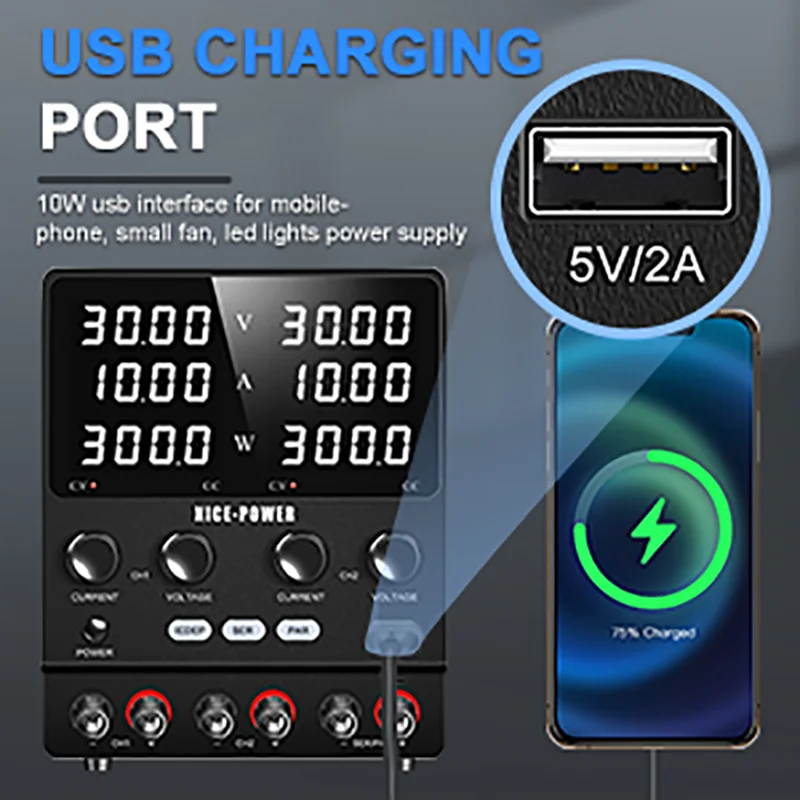

◈USB 5V 2A output port, can charge your phone!

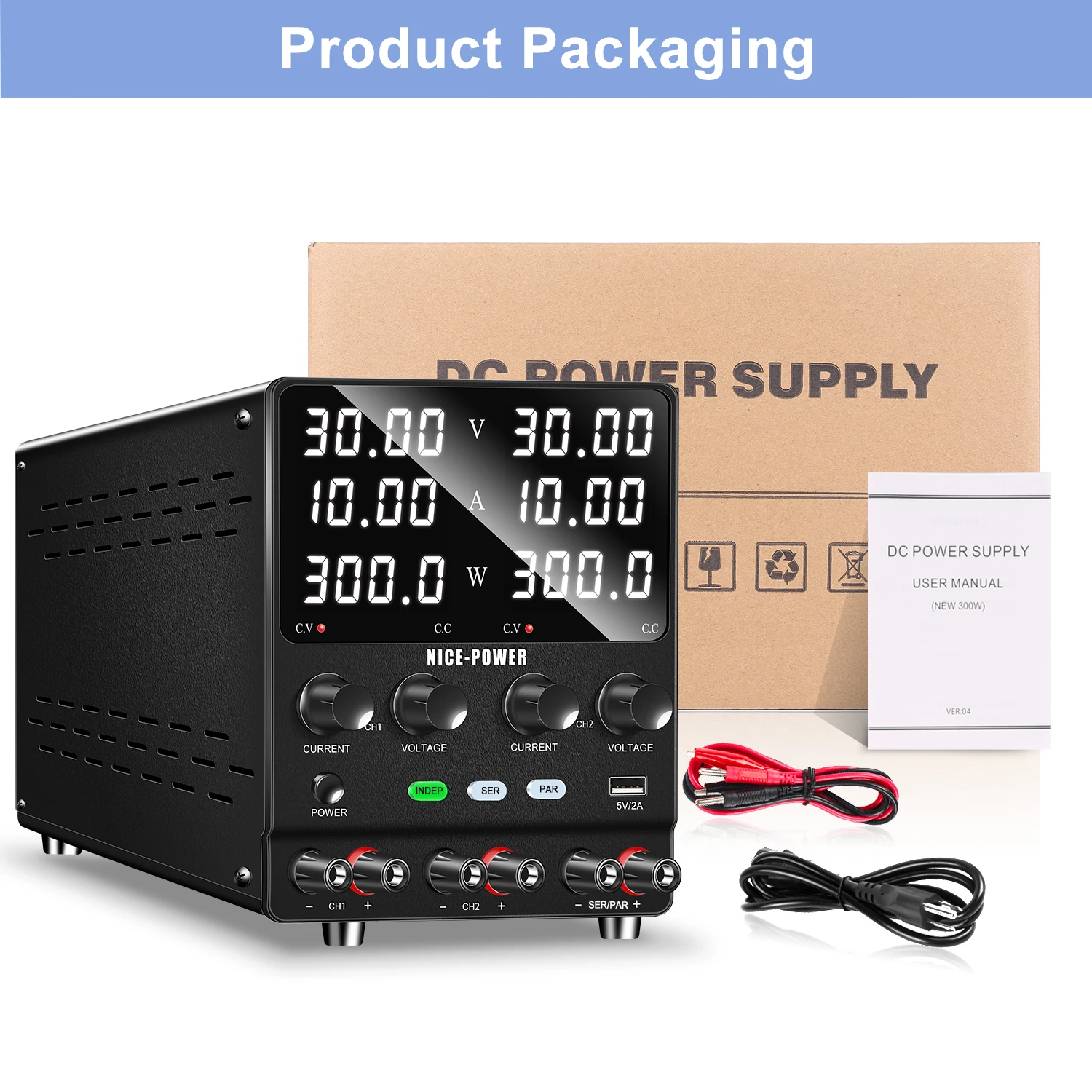

Package includes:

1*Power supply
1*Power Adapter(EU/AU/UK/US optional)
2*output line(gift)
1*Instruction Book (English)
1*Package Box
1*Certificate of conformity
