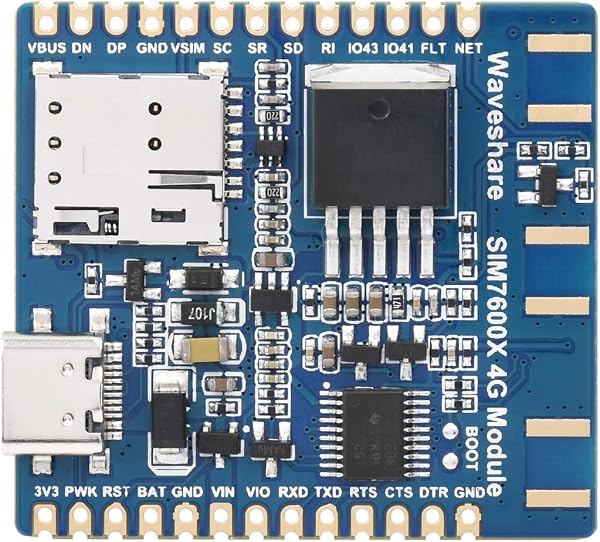

Waveshare SIM7600E-H 4G-Module, Used for Windows/Linux Dial-up Internet Access, Cloud Platform Communication, GNSS Locating, Compatible with Raspberry Pi/Jetson Nano/ESP32/STM32 Programming Platforms

Caractéristiques principales: Typical application: Used for Medical and health, smart payment, public network intercom, environmental monitoring, energy monitoring, fleet management, smart industry, smart agriculture. With 3× IPEX antenna connector, comes with 2× yellow pin header and FPC antenna.

Applicable regions: Europe/Southeast Asia/West Asia/Africa/China/Korea, Compatible with 2G/3G/4G network with global support. Supports dial-up, telephone calls, SMS/TCP/UDP/MQTT/DTMF/HTTP/FTP, etc.

Supports GPS/BeiDou/Glonass/GALILEO/QZSS/LBS base station positioning. Onboard USB and UART interface, for dial-up Internet access, cloud platform communication, GNSS positioning, etc, Castellated holes with immersion gold design, small size, easy to integrate into the device by soldering directly or inserting via the pin header.

Adapting USB/UART/SIM card/GPIO control pins, easy to develop and debug, better expansibility. Built-in voltage translator, compatible with 3.3V/5V MCU motherboards such as STM32/ESP32, Supports multiple power supply methods: USB port, VIN pin, and VBAT pin (for 3.7V lithium batt).

Supports 5~26V wide voltage power supply and 3A high current output, to prevent the module from dropping and restarting due to the large instantaneous power consumption, more stable and reliable in industrial use, Onboard Nano SIM card slot, supports 1.8V and 3V SIM cards, near the edge of the board design, for easy accessing SIM card. Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/STM32).
