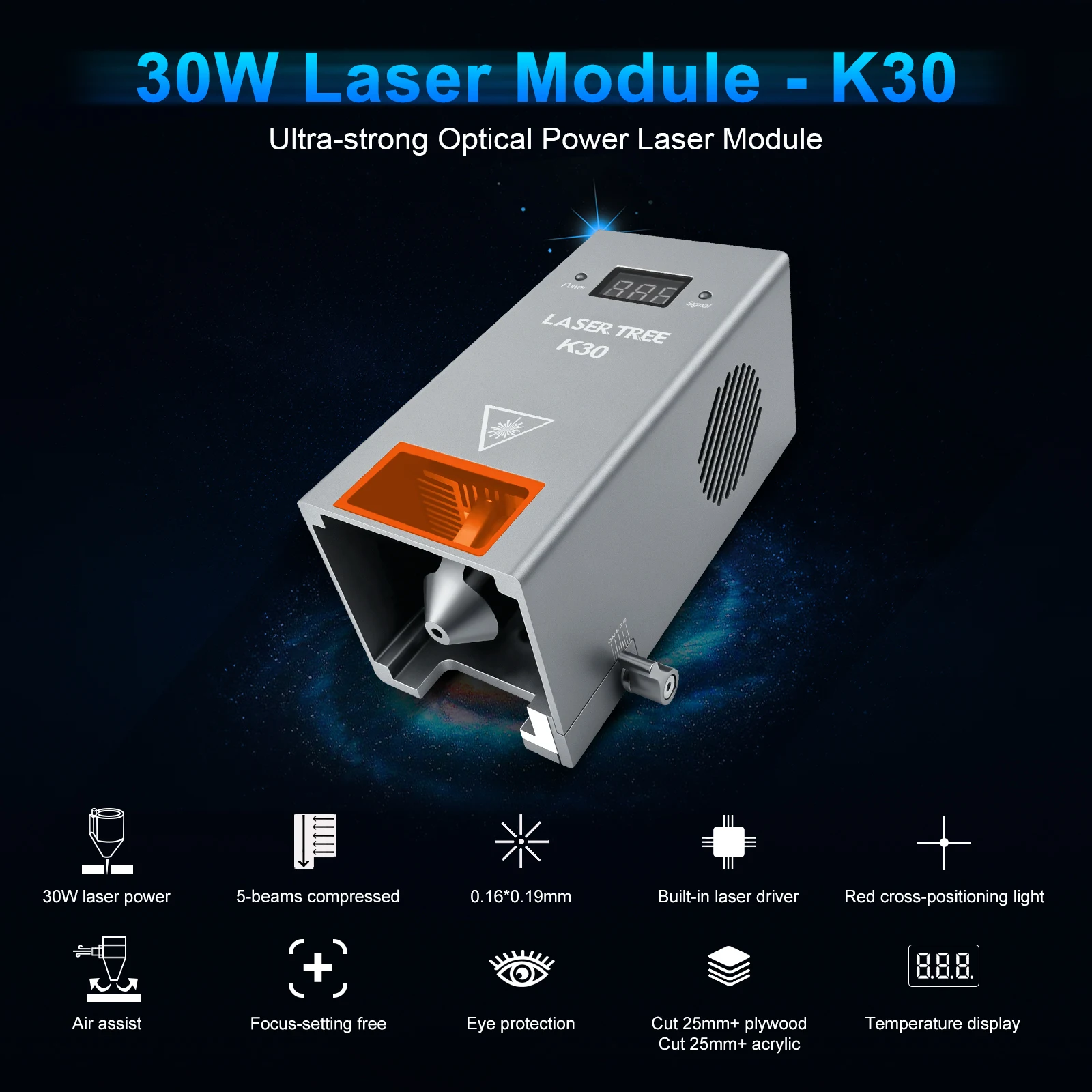

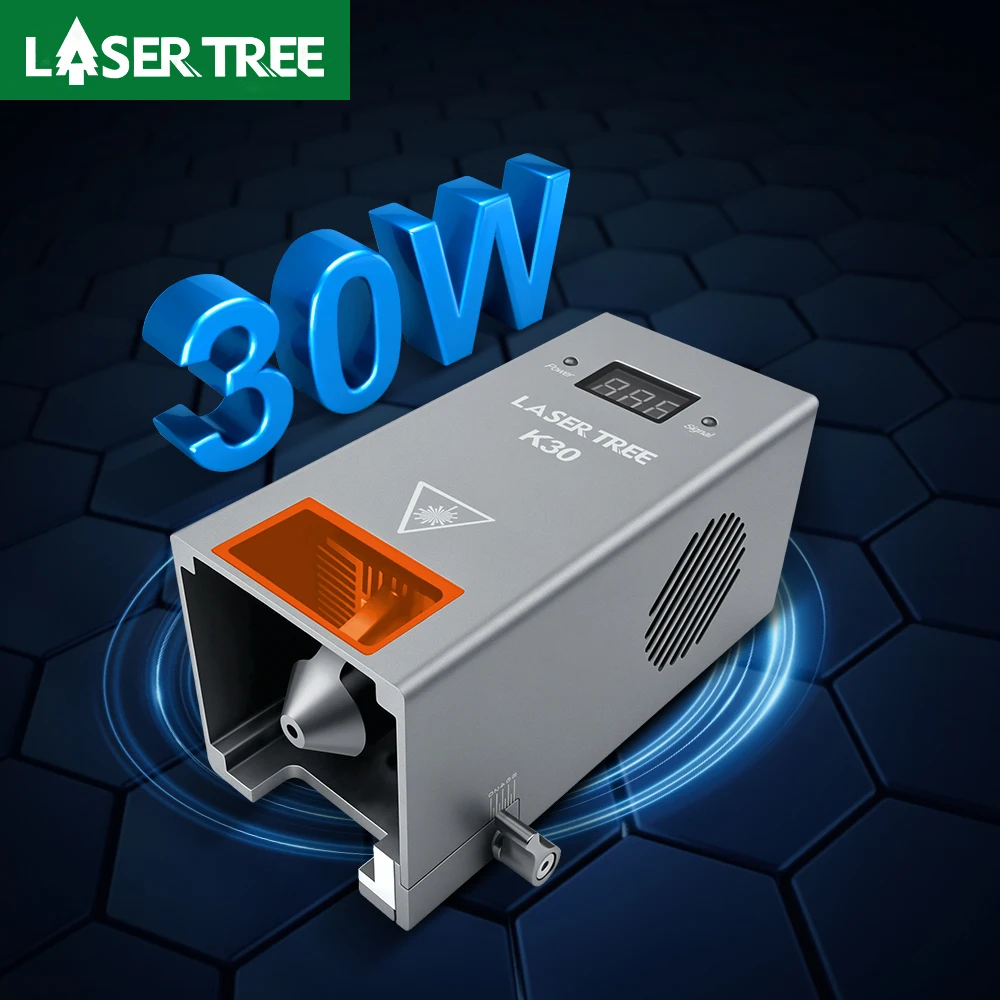

LASER TREE 30W Optical Power Laser Module with Air Assist 6 Diodes Laser Heads for CNC Engraver Machine DIY Cutting Wood Tools

LT-K30 Features:

1. Ultra High Power

The LaserTree K30 laser head has an output power of 28W~32W. It uses beam compressed technology to combine 6pcs 5W laser diodes into a powerful laser beam with 30W laser power.

2. Powerful Cutting Ability

15mm basswood plywood: 180mm/min, one pass

15mm black acrylic: 35mm/min, one pass

20mm pine wood: 120mm/min, one pass

9mm MDF: 300mm/min, 2 passes

3. Built-in Air Assist Airway & Dual Fan Cooling Design

1>Built-in air assist airway to get clean-cut edges, improve cutting performance.

2>Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life.

4. Temperature Display & Alarm Function

Excessive working temperatures can reduce the life time of the laser head at an accelerated rate.

LaserTree K30 create a solution with working temperature display, so that you can check the internal temperature of the module easily. When the working temperature of laser module over 55 ℃, it will sound an alarm through the buzzer.

5. Red cross line locating

The working frame can be positioned by red crosshair, it is helpful for improving the convenience of the secondary cutting and engraving as well.

6.Super Fast Egraving Speed

3 times engraving speed compare with 10W laser power module.

7. Copper Core Protection Lens.

Easy to clean and replace when the lens is contaminated or dusty.

8. Laser View Window

Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.

9. Widely Compatible Design

In order to improve the compatibility to different laser engraver machine, K30 provide a solution by adapter board for electric compatibiliy, and sliding plate with multi holes for installation compatibility.

LT-K30 laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

(please contact us if you are not sure about compatibility)

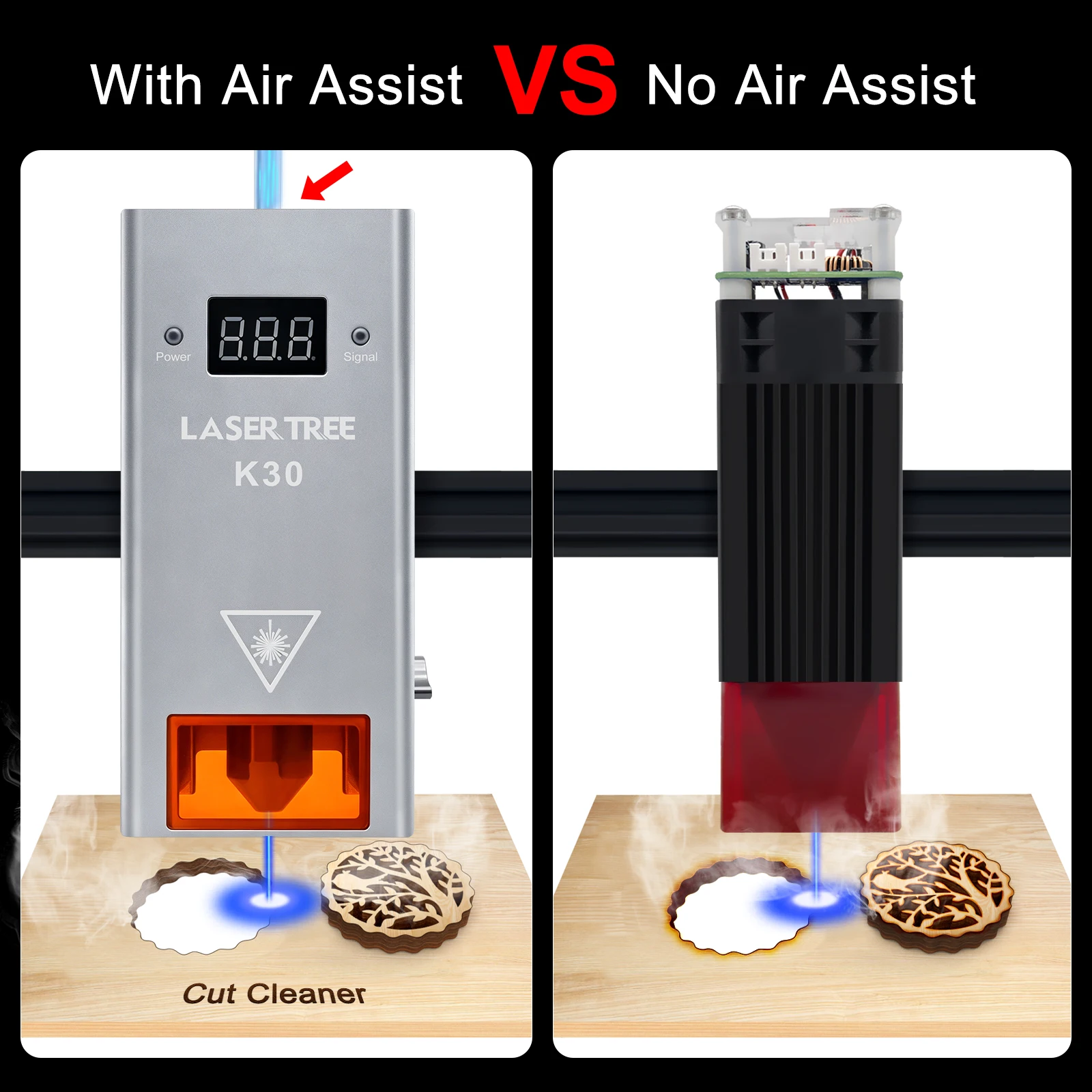

With Air Assist VS No Air Assist

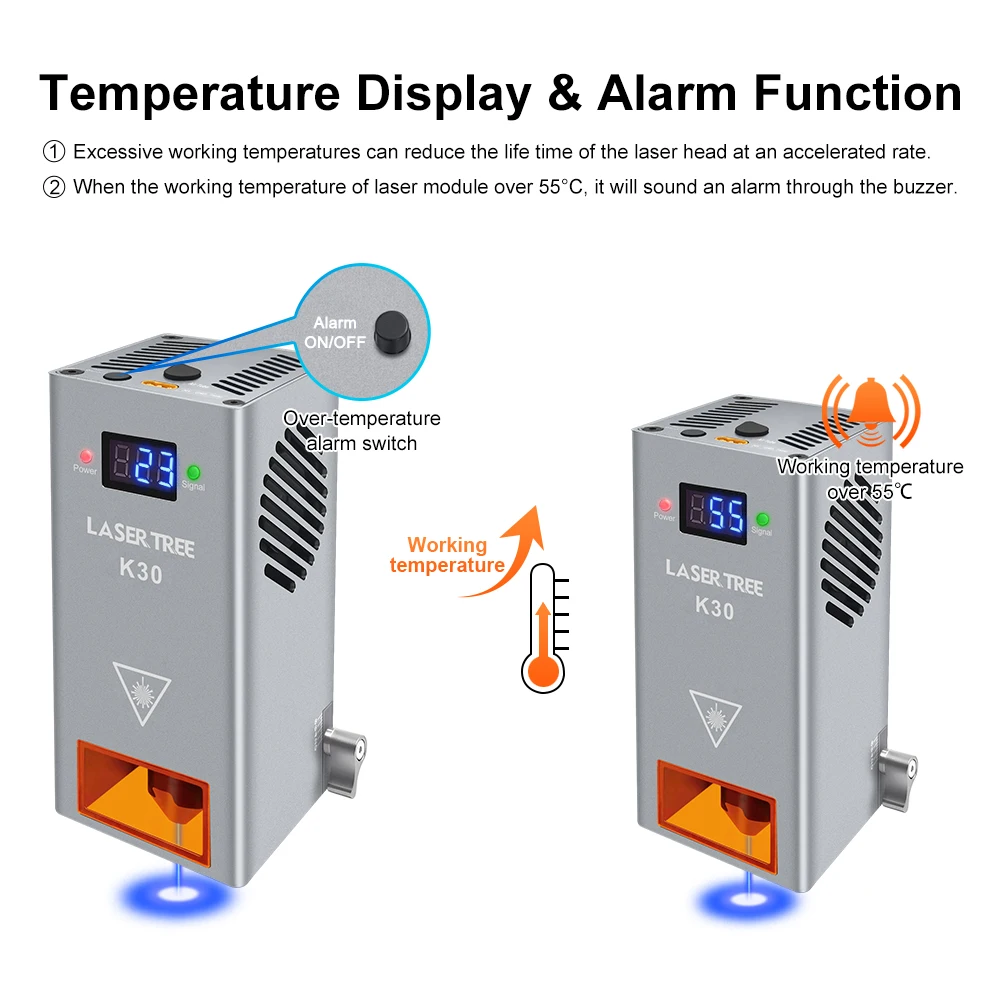

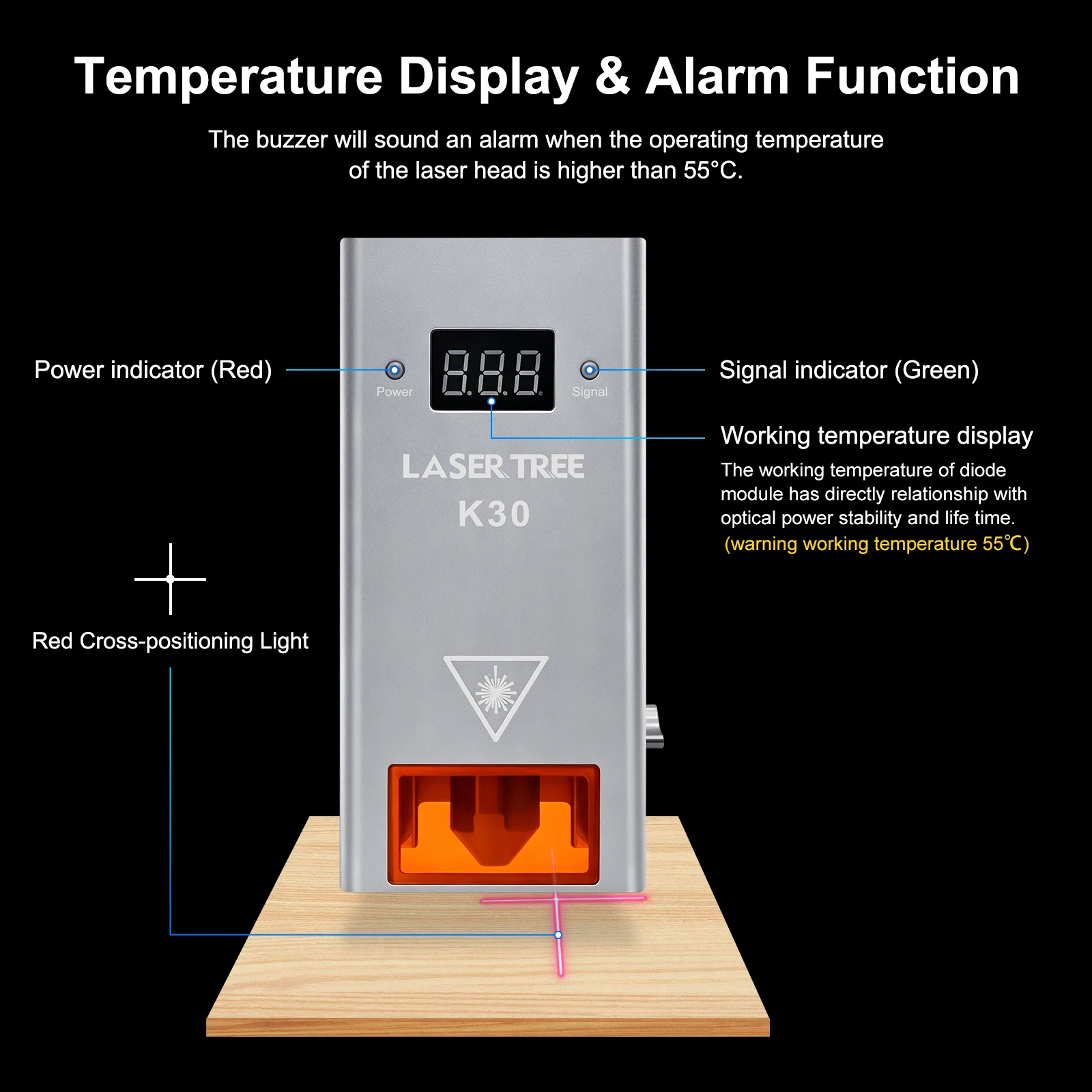

Temperature Display & Alarm Function

1>The buzzer will sound an alarm when the operating temperature of the laser head is higher than 55°C.

2>Use in high temperature environments can affect the long term life of the laser head.

We suggest the working temperature of the laser module is controlled below 55°C and the working environmental temperature below 35°C to get good power stability and durability.Red cross line locating

Help you to place the material to the position correctly, it is helpful for improving the convenience of the secondary cutting and engraving as well.

K30W Metal Engraving

Super powerful laser beam oxidizes the metallic surface in an instant, bringing vivid colors to the engraved metal.

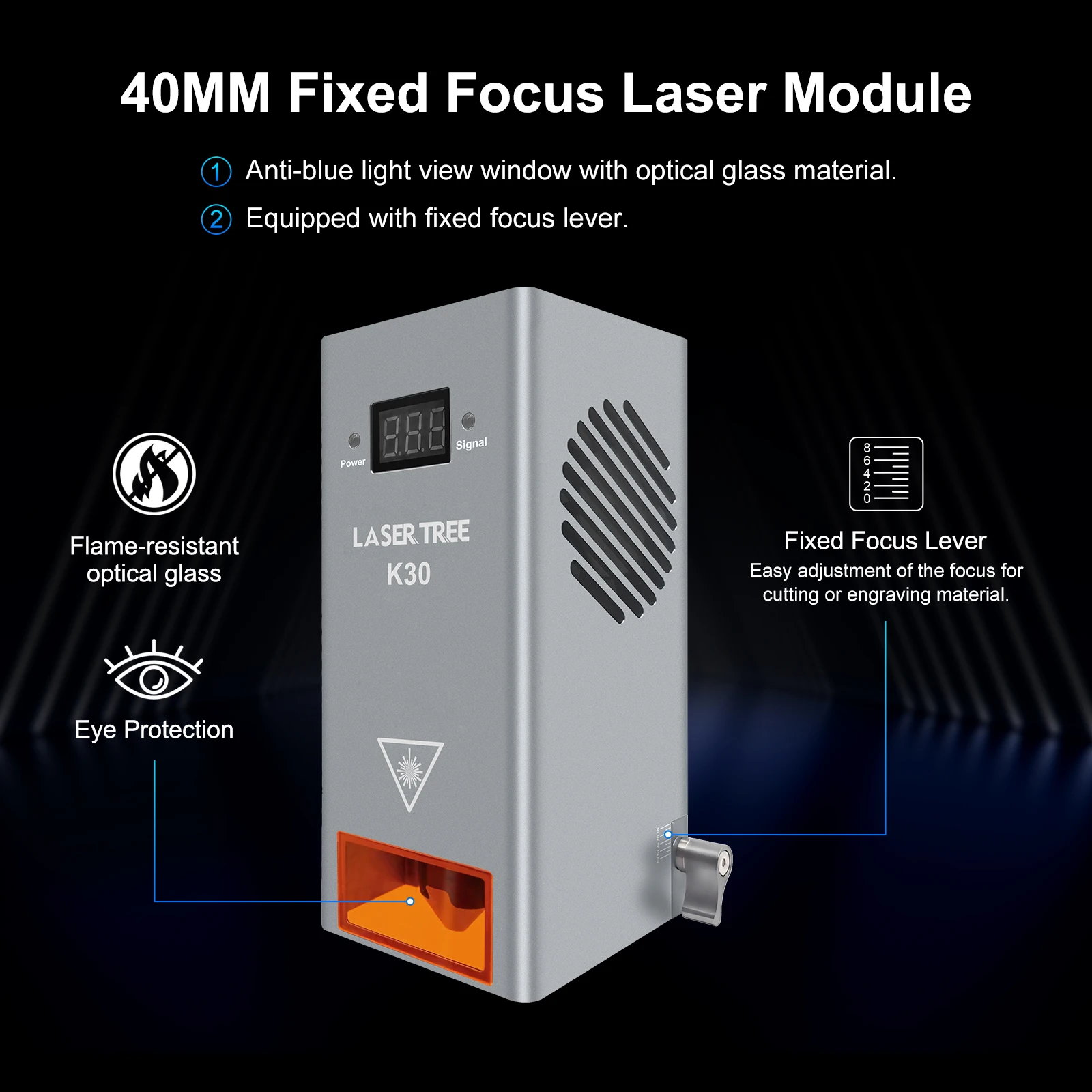

Laser View Window

Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.

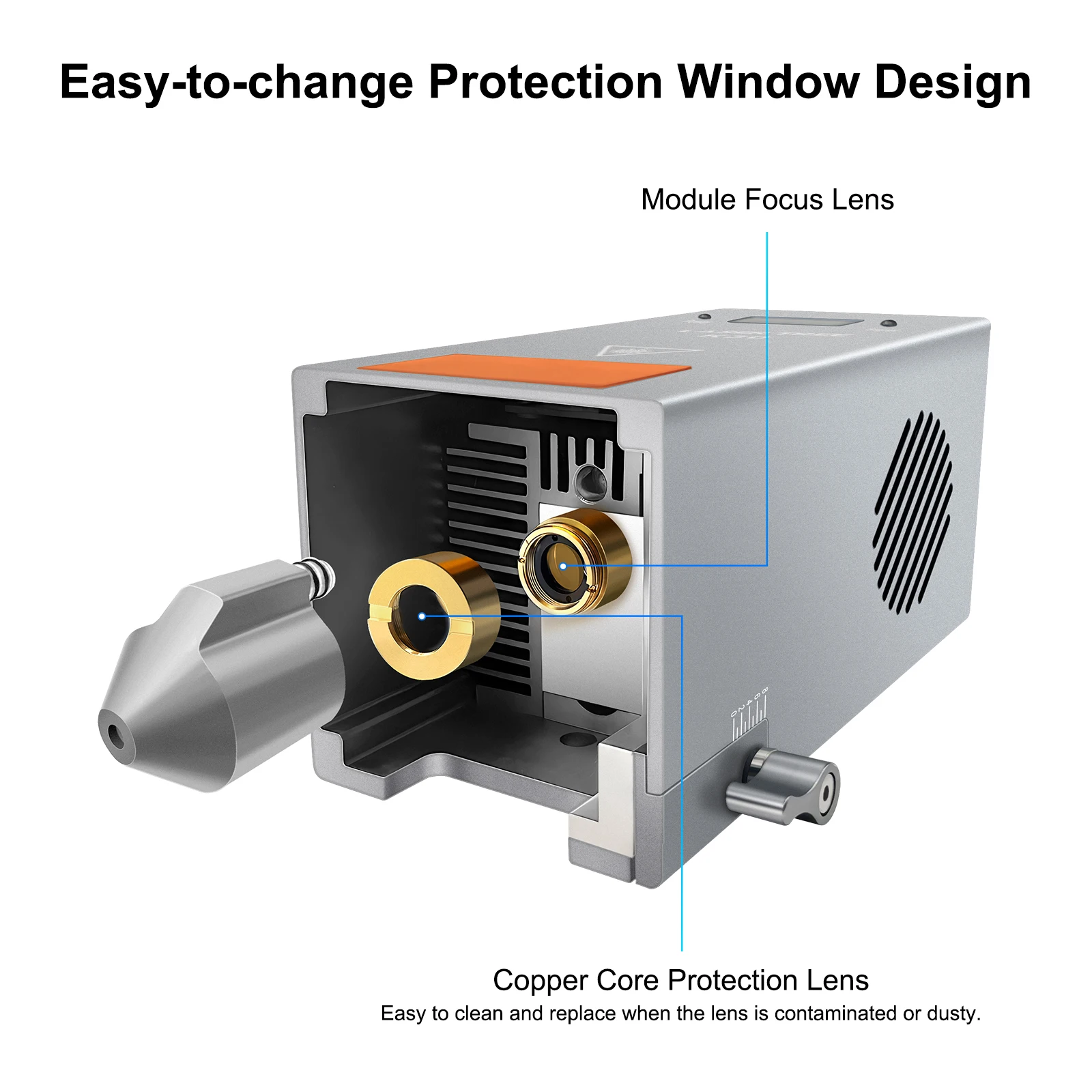

Easy-to-change Protection Window Design

1>Copper Core Protection Len.

2>Easy to clean and replace when the lens is contaminated or dusty.

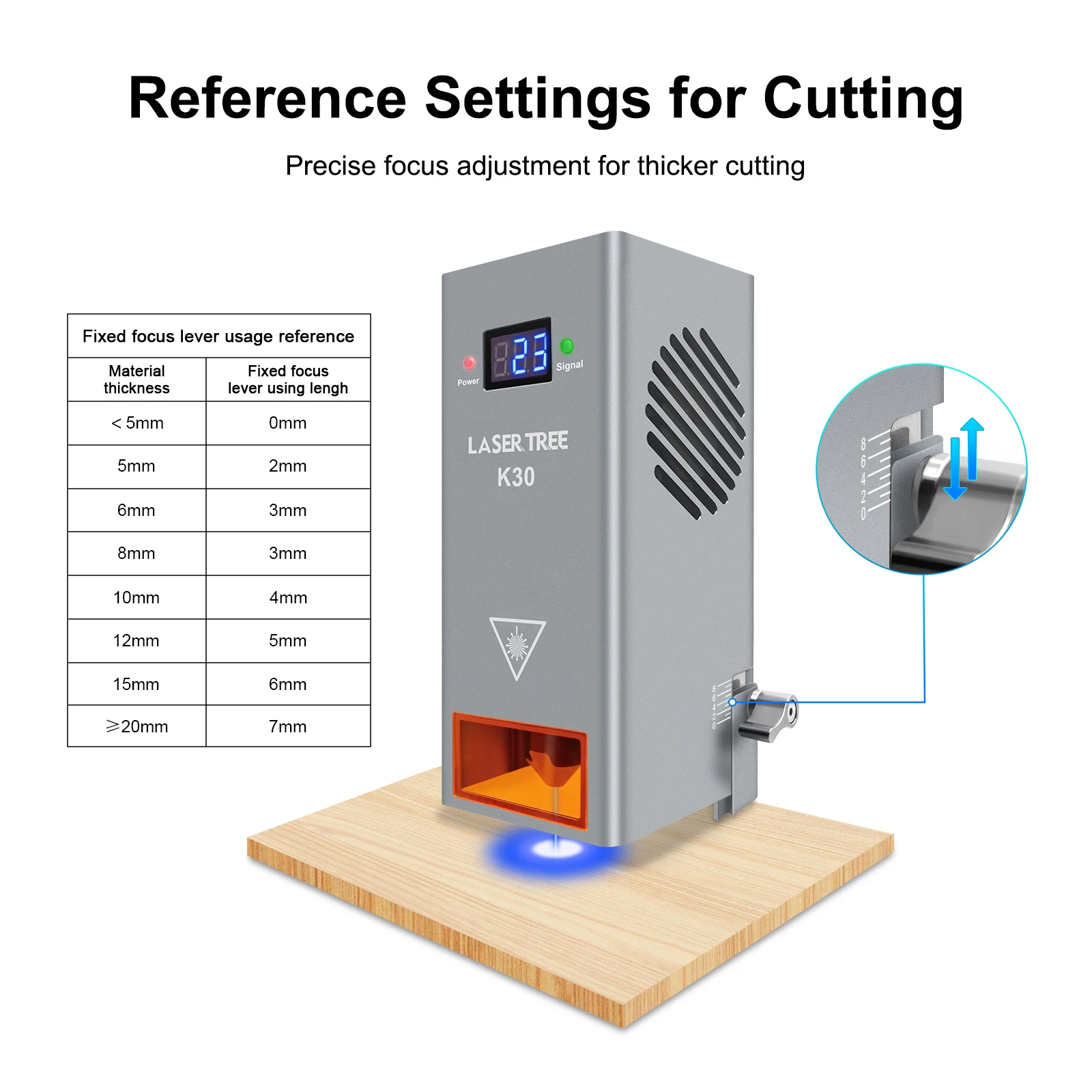

Equipped with fixed focus lever, easy to set the focus

Focus bar design makes it easy to set the focus of the module.

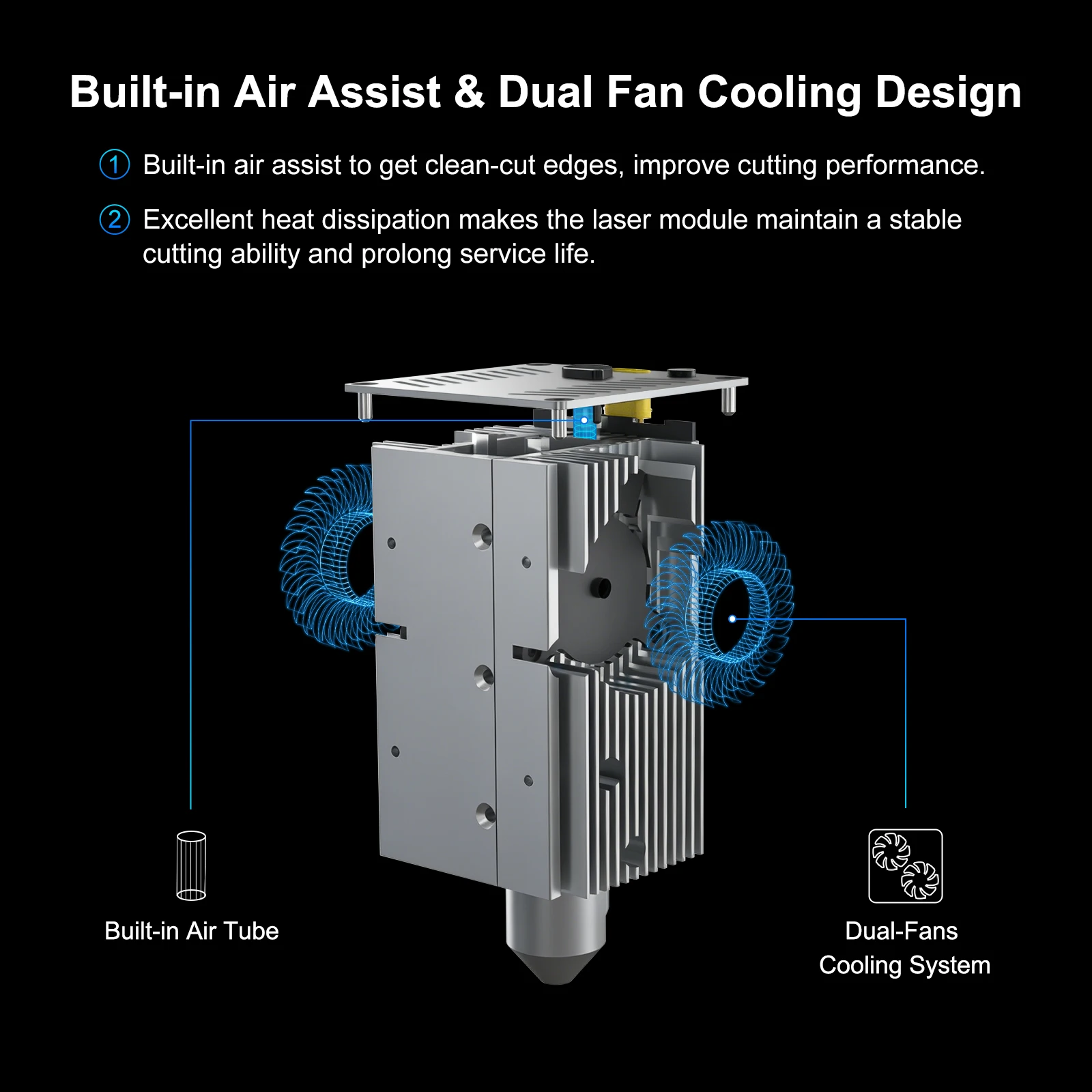

Built-in Air Assist & Dual Fan Cooling Design

1>Built-in air assist to get clean-cut edges, improve cutting performance.

2>Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life.

Product Details

Reset Button: When the buzzer sound an alarm, close by reset button.

TTL/PWM: 0/3-12V, 0-5kHz. 0 off and 3-12V on.

Power/PWM Indicator

The electrical connection status can be easily checked by the "Power" and "Signal" LED indicator.

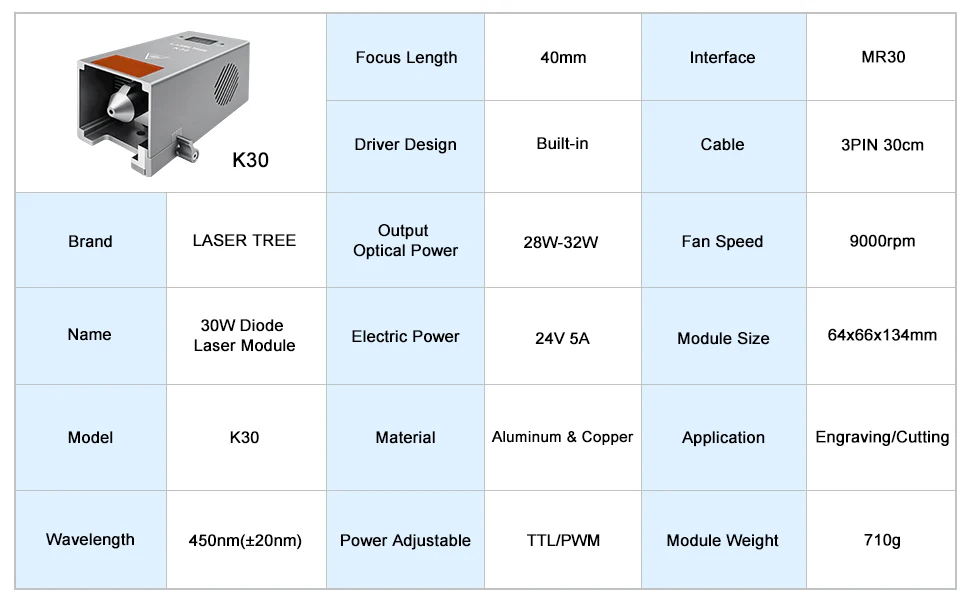

Product Parameters

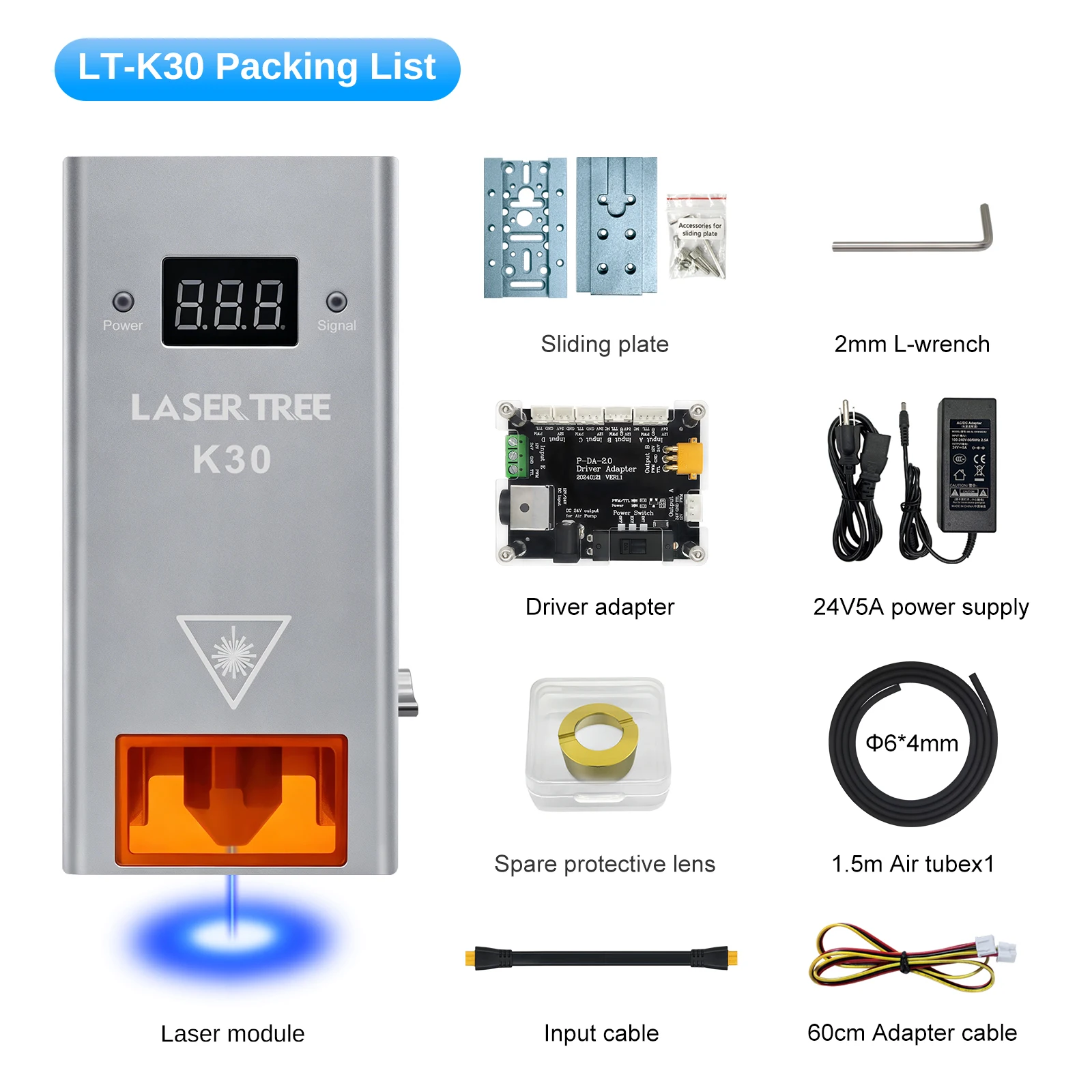

Product Packing List
