AIYIMA Audio T3 Phono Preamplifier for Turntable Phonograph Preamp Vinyl Record Player Mini Stereo HiFi Vacuum Amplifier DIY

Specifications:

Output level: 600mV @3mV 1KHz

Signal to noise ratio: ≥98dB

Working voltage: DC12V 1.5~2A

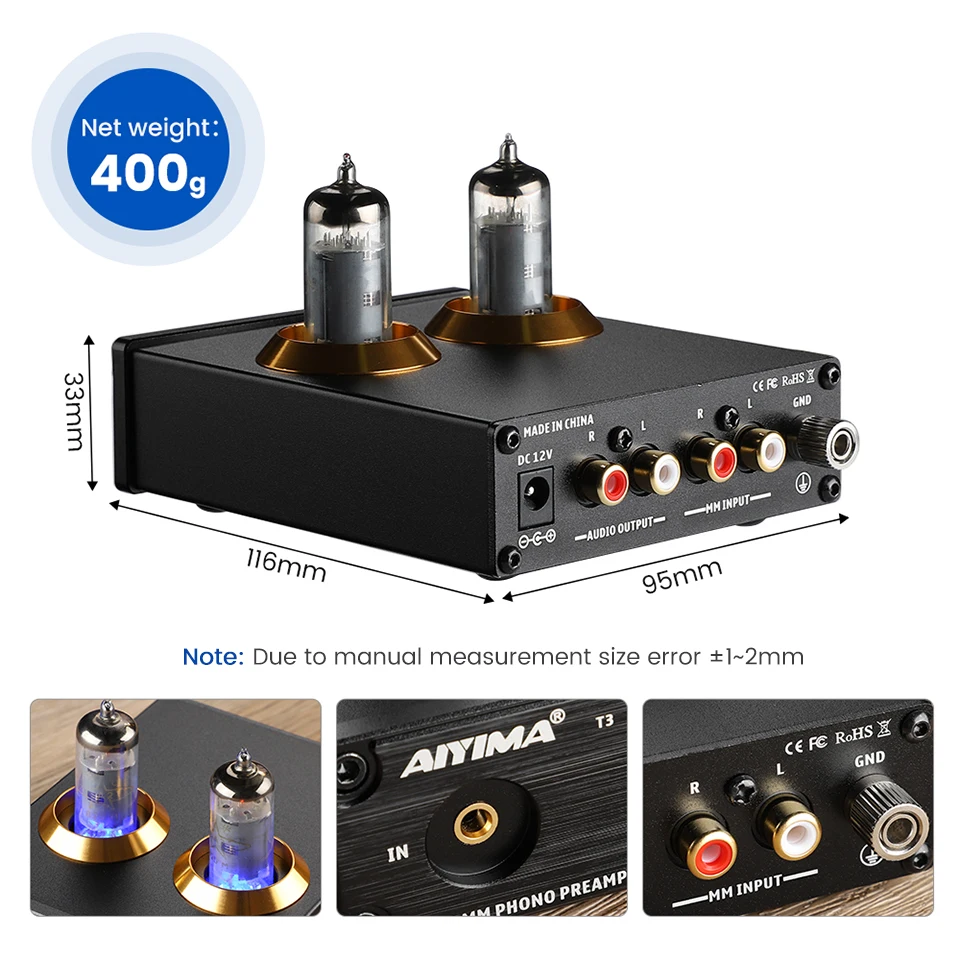

Dimensions: 118.5*98*33MM (without protruding knobs and terminals)

Frequency response: RIAA compliant

Distortion: 0.1%

Operation Steps:

1. The gear switch is in the OFF state.

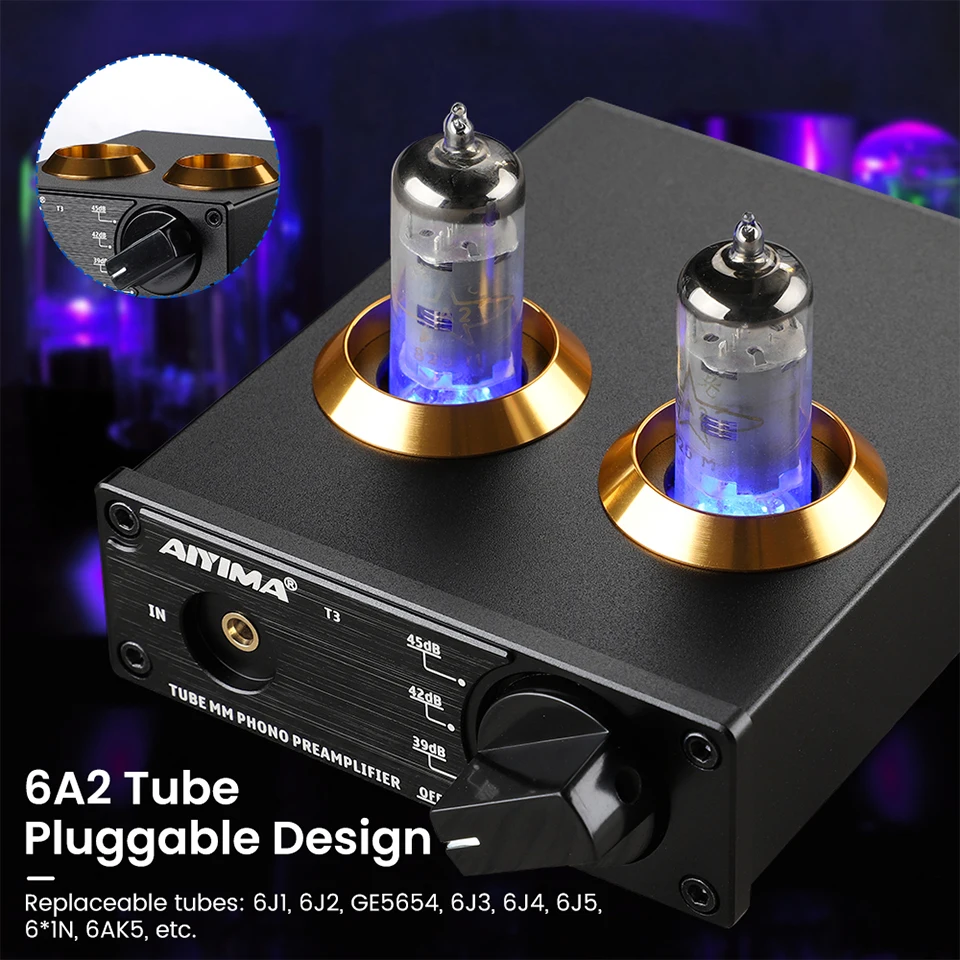

2. Insert the supplied tube into the tube holder in the direction (the tube does not matter, check whether the lower pin is deformed before installing the tube, and the deformation can be reversed by hand).

3. Connect the sing-out output cable to the audio input connector.

4. Connect the rear-end device that needs an external connection to the audio output connector.

5. Connect the DC12V power supply.

6. Rotate the gear switch to select the desired gain gear.

7. When the preamp input is input, the phono input will automatically switch to the preamp input.

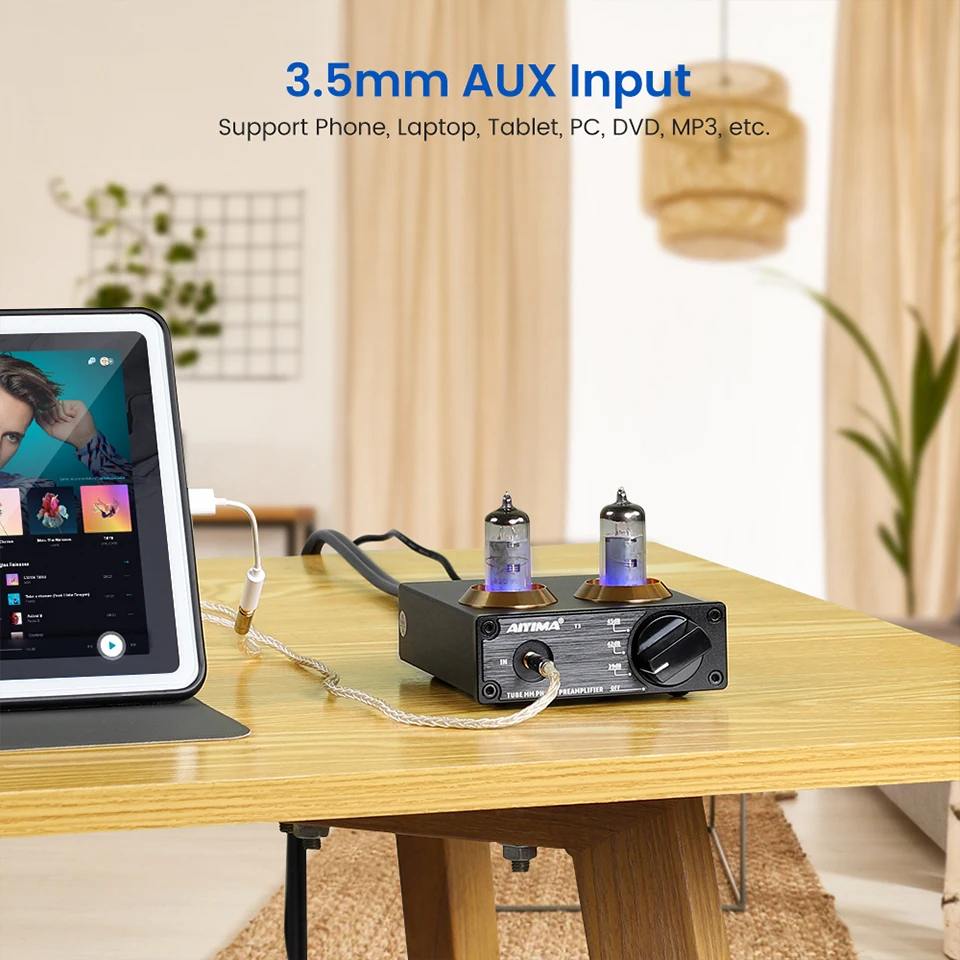

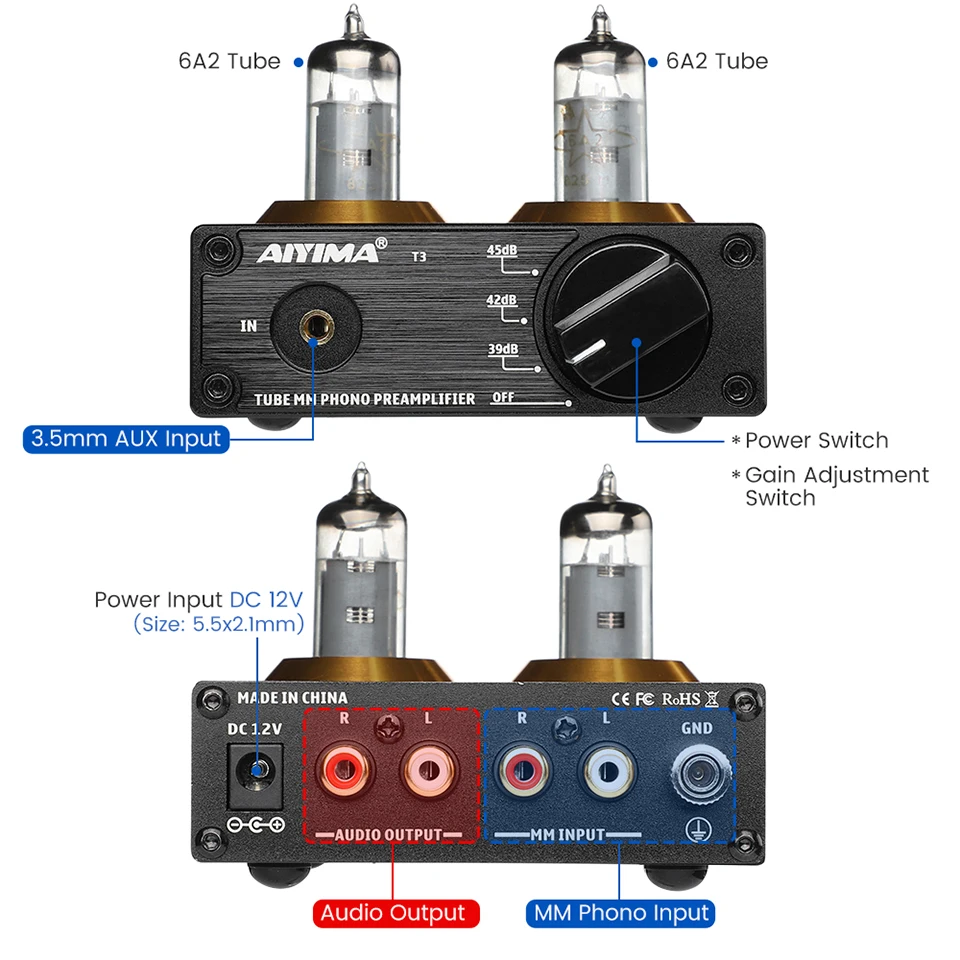

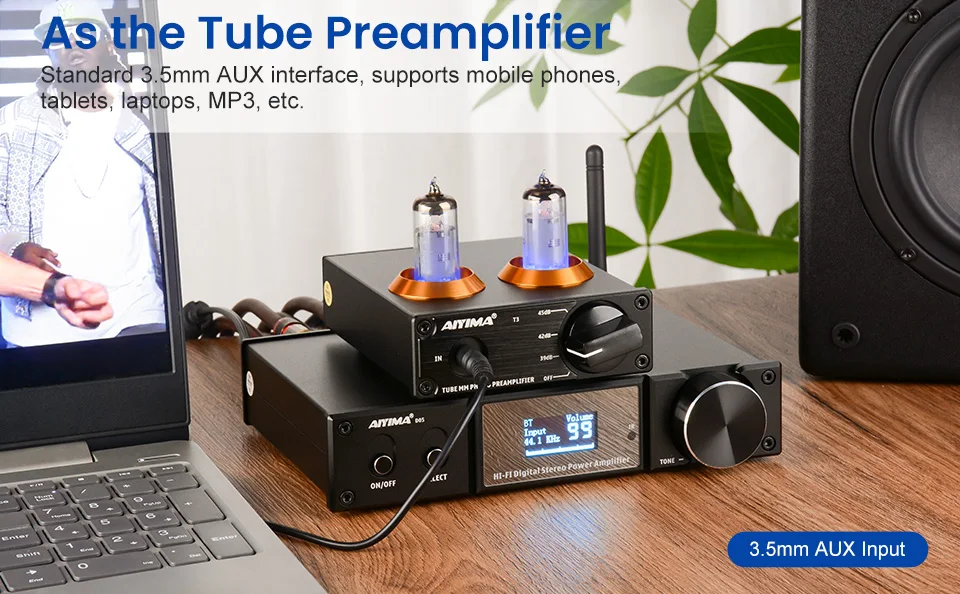

8. Input interface: (can be connected to CD, DAC decoder, mobile phone, TV, etc.)

9. Audio output interface: (such as amplifier, amp, active speaker, etc., red to the right channel, white left channel)

Parameters:

Output level: 600mV @3mV 1KHz

Signal to noise ratio: ≥98dB

Working voltage: DC12V

Dimensions: 118.5*98*33MM (without protruding knobs and terminals)

Frequency response: RIAA compliant

Distortion: 0.1%

Common problem:

Q: All my lines are connected, but there is no sound output?

Answer:

1. Check if the gear switch is in the OFF state. Check whether the tube light is on after the switch is turned on. If the fault still exists, replace the power supply with the same voltage output (must be 12V) and test again.

2. If the indicator light is on and the gear position switch is also on, unplug the power supply and re-insert the tube.

3. If both of the above are normal, check if the playback device of the input source is paused, muted, or the volume is at its minimum.
